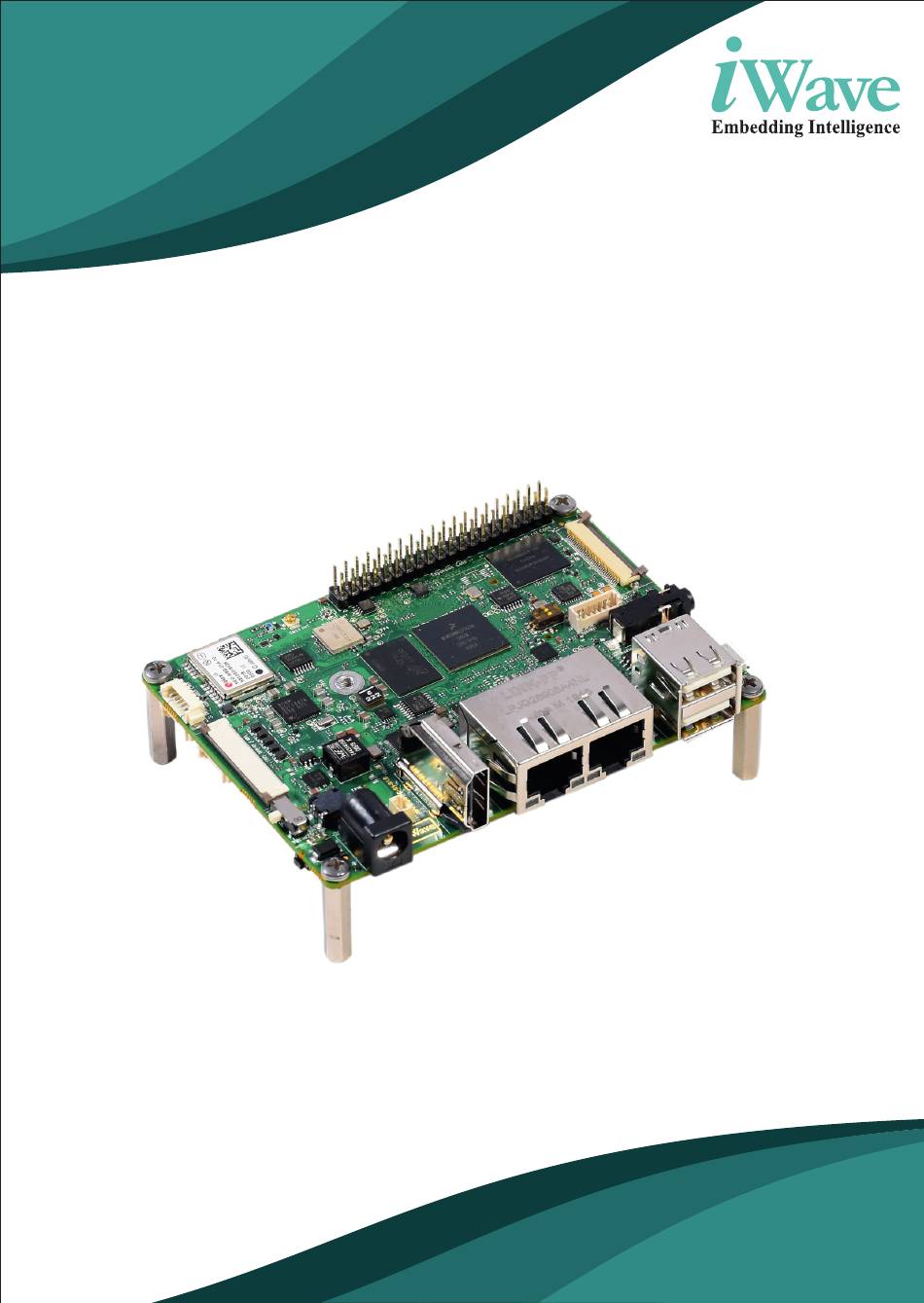

- Page 1 8M Mini or i.MX 8M Nano Pico ITX SBC iW-RainboW-G34S Quick Start Guide...
- Page 2 Disclaimer iWave Systems reserves the right to change details in this publication including but not limited to any product specification without notice. No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted...
- Page 3 SBC from a packed box. i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC Overview The iW-RainboW-G34S-i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC is a demonstration, development and experimentation platform based on the NXP’s i.MX 8M Mini or i.MX 8M Nano SoC.
-
Page 4: Environmental Compliance
Water damage is not covered under the warranty. Environmental Compliance The iW-RainboW-G34S-i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC is designed by using RoHS3 and REACH compliant components and manufactured on lead free production process. -
Page 5: Quick Start Steps
Use anti-static pad/mat with proper grounding to place the SBC. Also make sure that, below deliverables are received without any physical damage. USB OTG cable i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC 12V, 2A Power Supply Wi-Fi BT Antennas* *Optional... - Page 6 Before moving to next step, one must go through all the documents including Hardware User Guides and get familiar about iW-RainboW- G34S i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC. Source code can be customized according to user’s wish and corresponding binaries can be generated.
-
Page 7: Quick View
3.HDMI TX Connector 15.Expansion Conn. 4. LPDDR4 16.Wi-Fi Antenna Conn. 5.Dual Ethernet Jack 17.W-Fi & BT Module 6.i.MX 8M Mini or i.MX 8M 18.GNSS Antenna Conn.* Nano SoC 19.GNSS Module.* 7.Dual USB 2.0 Connector 20.LVDS Touch Conn. 8.USB OTG Connector 21.LVDS Conn. -
Page 8: Bottom View
Quick View Bottom View 23.JTAG Header 24.Reset Switch 25.RS485 Header 26.RS232 Header.* 27.CAN Header 28.M.2 Standoff 29.MIPI DSI Conn.* 30.M.2 Key B Conn. 31.Micro SD Conn. 32.Nano SIM Card Conn. 33.CPU ON/OFF Switch * Optional. - Page 9 Before setting up the test environment, one must go through "Hardware User Guide" and get familiar with hardware section of iW- "Hardware User Guide" and get familiar about hardware section RainboW-34S-i.MX 8M Mini or i.MX 8M Nano Pico ITX SBC. of iW-RainboW-G27D-i.MX8 QM/QP SMARC Development Board.
- Page 10 Debug Port Setting Connect Type A end of TTL-232R-RPI cable to PC and 3pin (100mil) Berg house end of TTL-232R-RPI cable to Expansion Connector (J2) as shown below. Install the driver for Debug USB Port in Host PC/Laptop using the below link.
- Page 11 SBC as shown below and switch ON the power supply. supply. Once power is applied to the SBC, the power LED in the i.MX 8M Mini or Once power is applied to the SBC, the power LED in the i.MX 8M i.MX 8M Nano SBC will glow as shown in the below image.
-
Page 12: Operating System Support
User must go through "Software User Guide" and get familiar with User must go through "Software User Guide" and get familiar with software section of iW-RainboW-G34S-i.MX 8M Mini or i.MX 8M Nano software section of iW-RainboW-G34S-i.MX 8M Mini or i.MX 8M Nano SBC. - Page 13 Command Prompt (Android) Linux Home Screen Android Home Screen Ubuntu Home Screen...
- Page 14 Other Products Product Name : i.MX 8M Mini/Nano SODIMM SOM Processor : i.MX 8M Mini or i.MX 8M Nano SoC RAM : LPDDR4 - 1GB* Application : Home Automation, Industrial HMI, Embedded Computing Applications. Product Name : i.MX 8M Mini/Nano μQseven SOM Processor : i.MX 8M Mini or i.MX 8M Nano SoC...
-
Page 15: Need More Help
Live Chat support. Phone Call us on : +91-80-26683700, 26781643, 26786245 Warranty & RMA Warranty support for Hardware: 1 Year from iWave or iWave's EMS partner. For warranty terms, scan the QR code or go to https://www.iwavesystems.com/support/warra... - Page 16 Headquarters: INDIA JAPAN UNITED STATES iWave Systems Tech. Pvt. Ltd. iWave Japan, Inc. iWave US 7/B, 29th Main, BTM Layout 2nd Stage, 8F-B, Kannai Sumiyoshi Building, 1692 Westmont Ave., Campbell, Bengaluru-560076,India. 3-29, Sumiyoshi-cho, Naka-ku, Yokohama, CA95008 USA Ph: +91-80-26683700, 26781643 Kanagawa, Japan.
