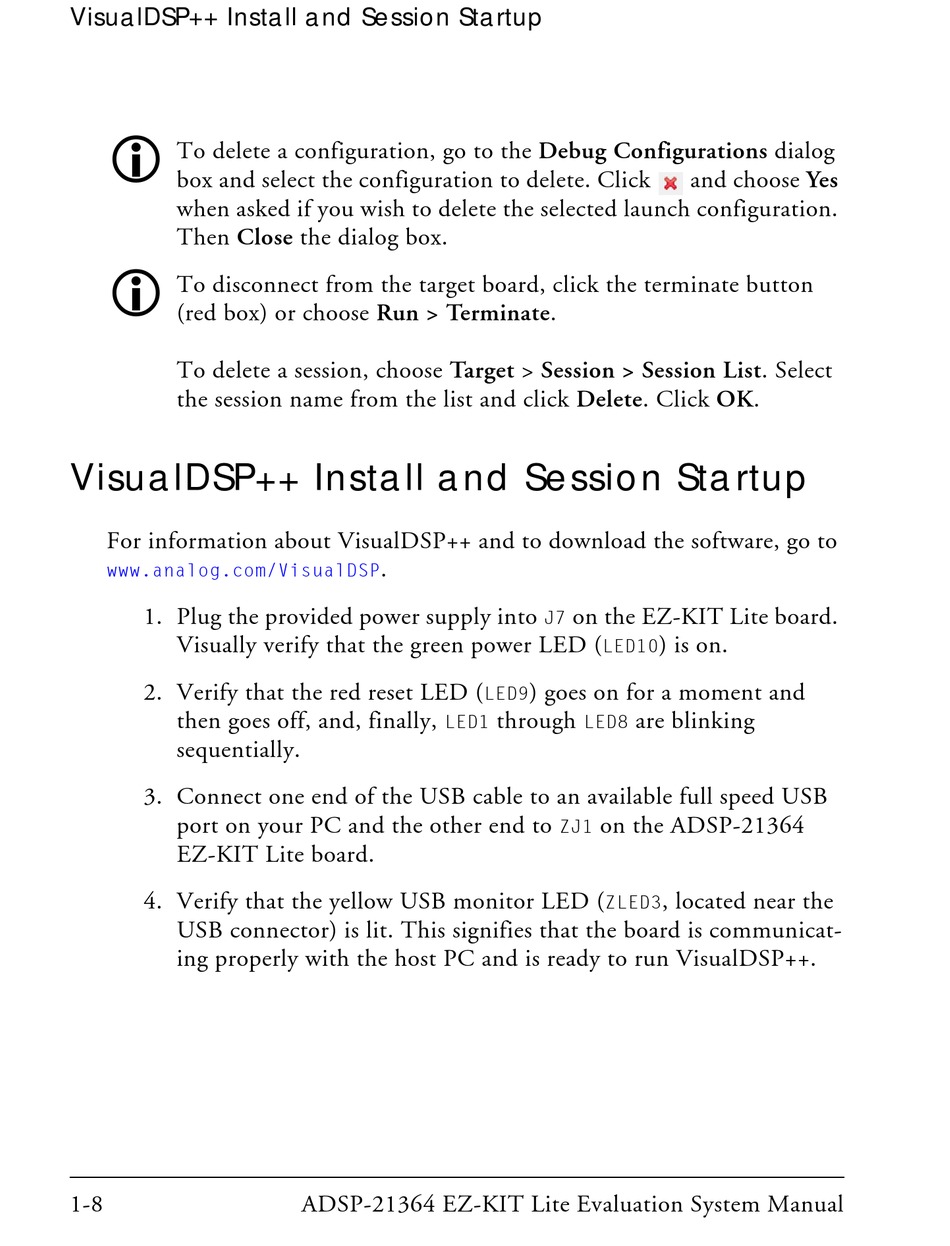

VisualDSP++ Install and Session Startup


To delete a configuration, go to the Debug Configurations dialog
box and select the configuration to delete. Click
when asked if you wish to delete the selected launch configuration.
Then Close the dialog box.

To disconnect from the target board, click the terminate button
(red box) or choose Run > Terminate.
To delete a session, choose Target > Session > Session List. Select
the session name from the list and click Delete. Click OK.
VisualDSP++ Install and Session Startup
For information about VisualDSP++ and to download the software, go to
www.analog.com/VisualDSP
1. Plug the provided power supply into
Visually verify that the green power LED (
2. Verify that the red reset LED (
then goes off, and, finally,
sequentially.
3. Connect one end of the USB cable to an available full speed USB
port on your PC and the other end to
EZ-KIT Lite board.
4. Verify that the yellow USB monitor LED (
USB connector) is lit. This signifies that the board is communicat-
ing properly with the host PC and is ready to run VisualDSP++.
