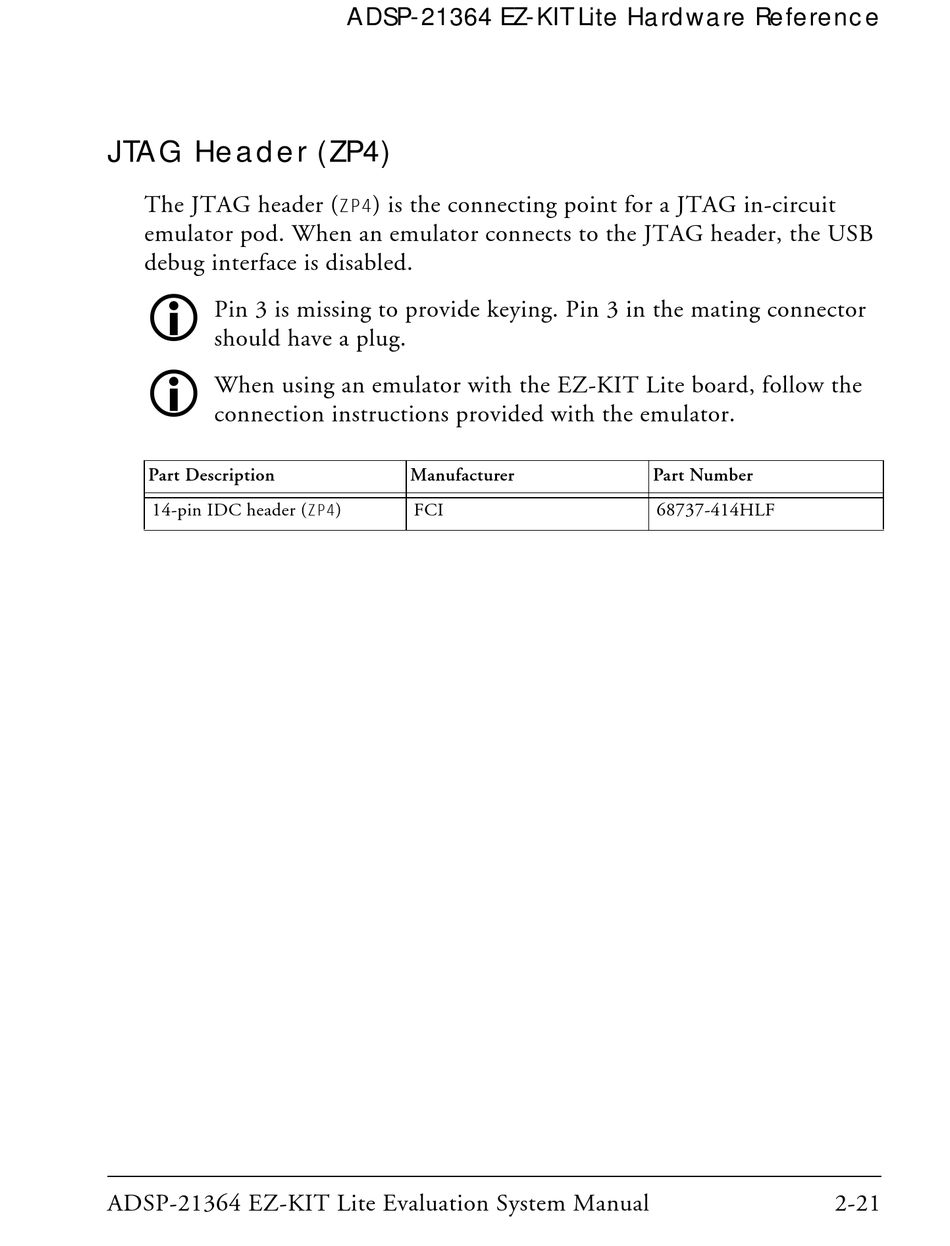

JTAG Header (ZP4)
The JTAG header (
emulator pod. When an emulator connects to the JTAG header, the USB
debug interface is disabled.
Pin 3 is missing to provide keying. Pin 3 in the mating connector
should have a plug.
When using an emulator with the EZ-KIT Lite board, follow the
connection instructions provided with the emulator.
Part Description
14-pin IDC header (
ADSP-21364 EZ-KIT Lite Evaluation System Manual
ADSP-21364 EZ-KIT Lite Hardware Reference
) is the connecting point for a JTAG in-circuit
ZP4
Manufacturer
)
FCI
ZP4
Part Number
68737-414HLF
2-21
