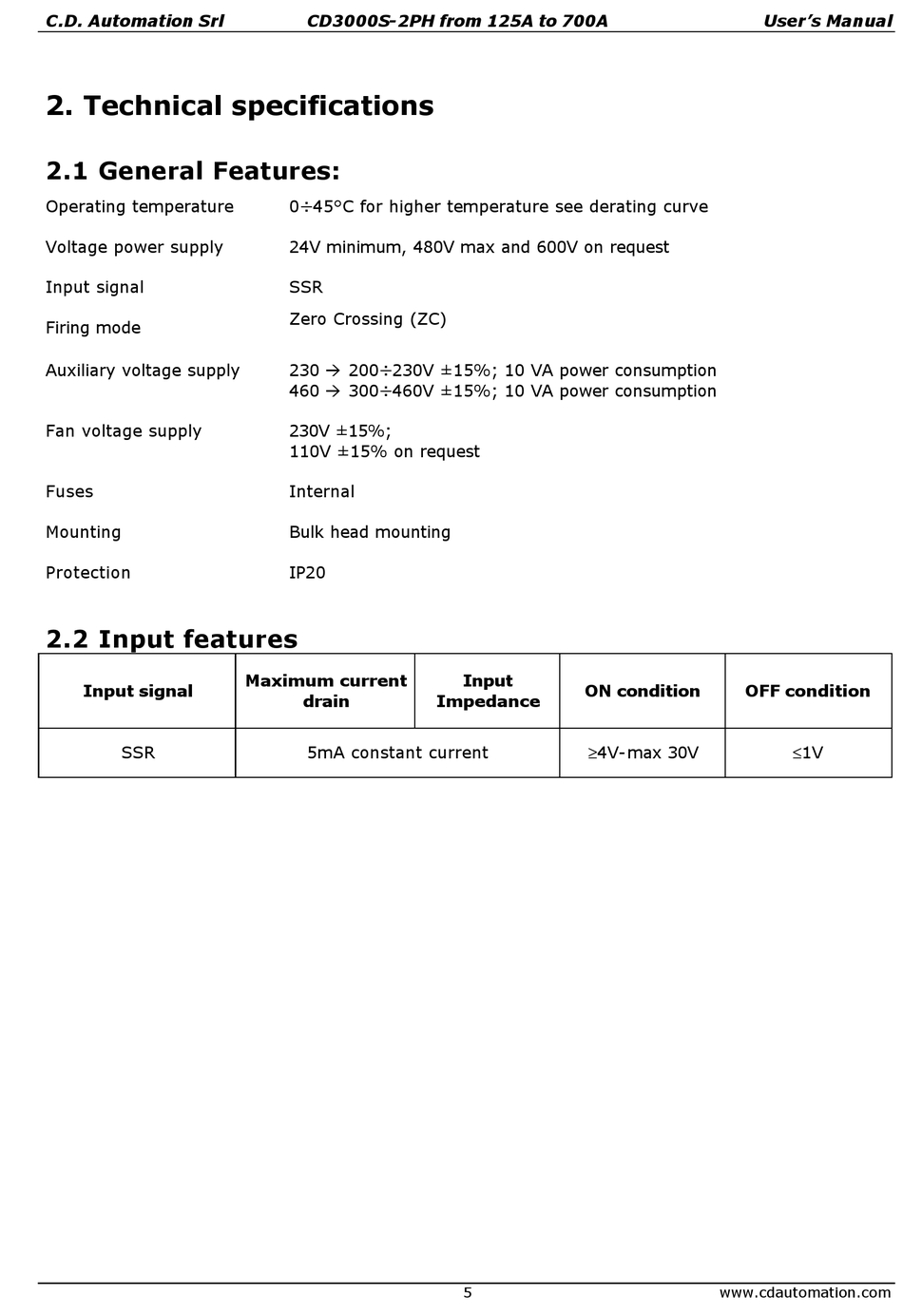

2. Technical specifications
2.1 General Features:
Operating temperature
Voltage power supply
Input signal
Firing mode
Auxiliary voltage supply
Fan voltage supply
Fuses
Mounting
Protection

2.2 Input features

Input signal
SSR
CD3000S-2PH from 125A to 700A
0÷45°C for higher temperature see derating curve
24V minimum, 480V max and 600V on request
SSR
Zero Crossing (ZC)
230 à 200÷230V ±15%; 10 VA power consumption
460 à 300÷460V ±15%; 10 VA power consumption
230V ±15%;
110V ±15% on request
Internal
Bulk head mounting
IP20
Maximum current
drain
5mA constant current
Input
ON condition
Impedance
≥4V-max 30V
5
User's Manual
OFF condition
≤1V
