C.D. Automation Srl
6.1 Auxiliary supply
Warning: this procedure can be done just by specialized personnel.
To change auxiliary supply voltage sold the correct link-jumper on main PCB.

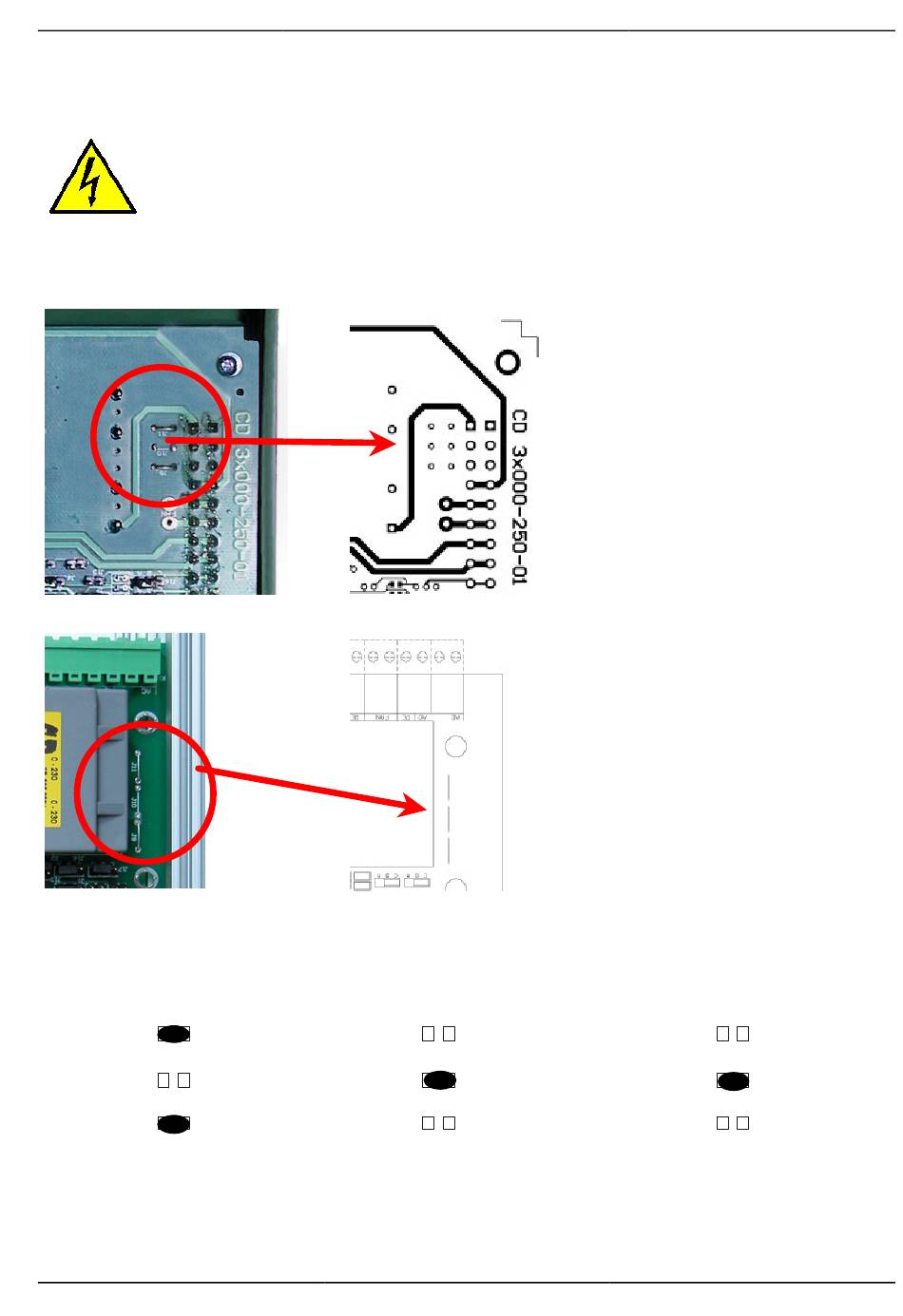

Auxiliary supply jumpers for S9 and S10 sizes
Auxiliary supply jumpers for S14 size
230V Auxiliary supply
To set the auxiliary power
supply to 230V, close J9 and
J11 and open J10 as shown
below.
J11
J10
J9
CD3000S-2PH from 125A to 700A
J11
J10
J9
J11
J10
J9
460V Auxiliary supply
To set the auxiliary power
supply to 460V, close J10 and
open J9 and J11 as shown
below.
J11
J10
J9
19
600V Auxiliary supply
This is a special version on request.
In this case the unit is supplied
already configured.
J11
J10
J9
www.cdautomation.com
User's Manual
