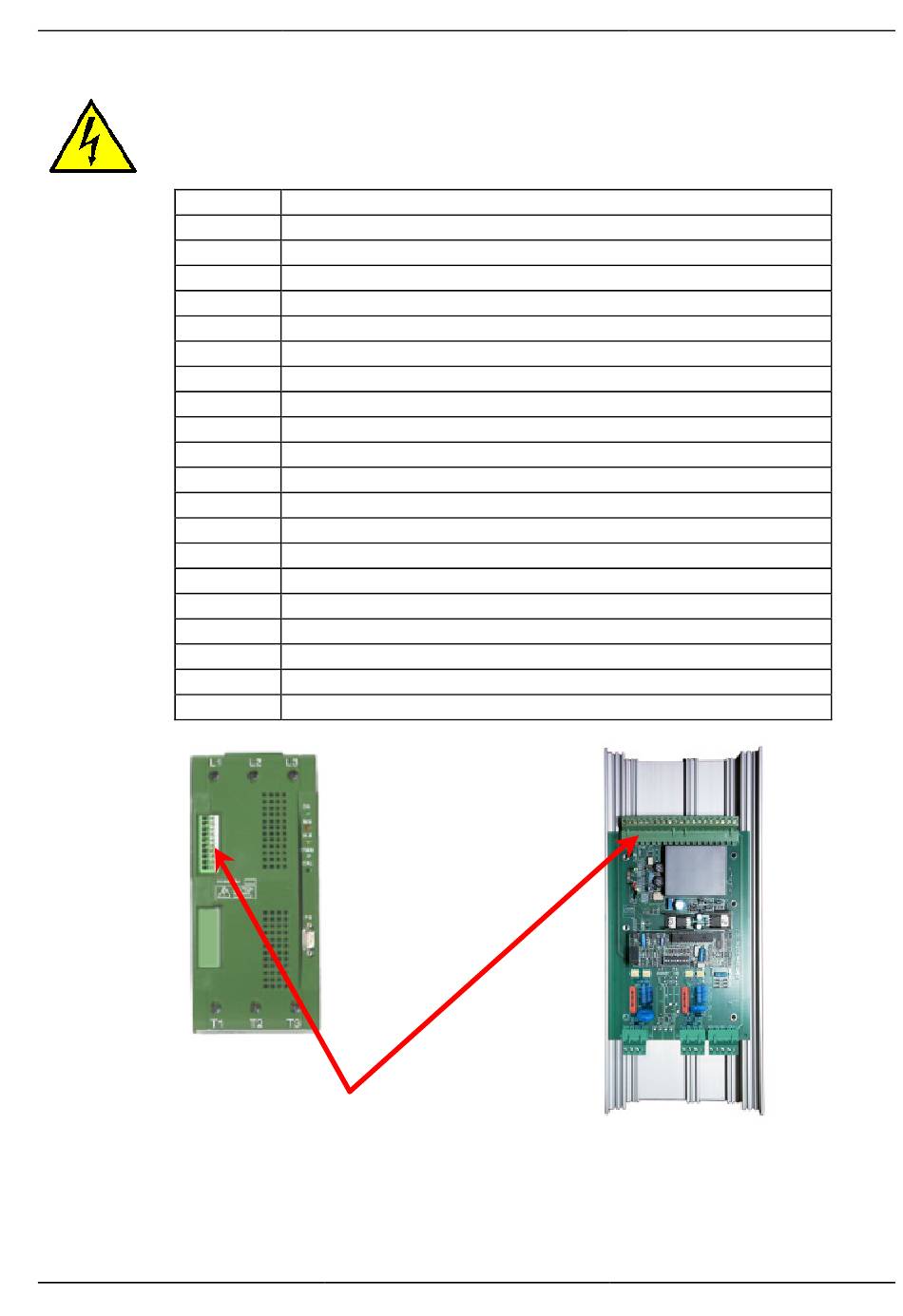

5.1.1 Auxiliary Terminals
Before connect or disconnect, make sure that the power, control cables and wires are
insulated from the voltage
Terminal
Auxiliary terminals
www.cdautomation.com
CD3000S-2PH from 125A to 700A
Description
1
Auxiliary supply voltage 230-460Vac (600V opt.)
2
N.C. not connected
3
Auxiliary supply voltage 230-460Vac (600V opt.)
4
N.C. not connected
5
Fan supply 230V (110V opt.)
6
Fan supply 230V (110V opt.)
7
Reset
8
Reset
9
+ Input command signal SSR
10
- Input command signal SSR
∅ Volt GND (only on S14 size)
11
12
Output + 8Vdc stabilized, 1mA max (only on S14 size)
13
+Output command signal to CD3000 slave (only on S14 size)
14
- Output command signal to CD3000 slave (only on S14 size)
15
Not used
16
Not used
17
Not used
18
Not used
19
Not used
20
Not used
