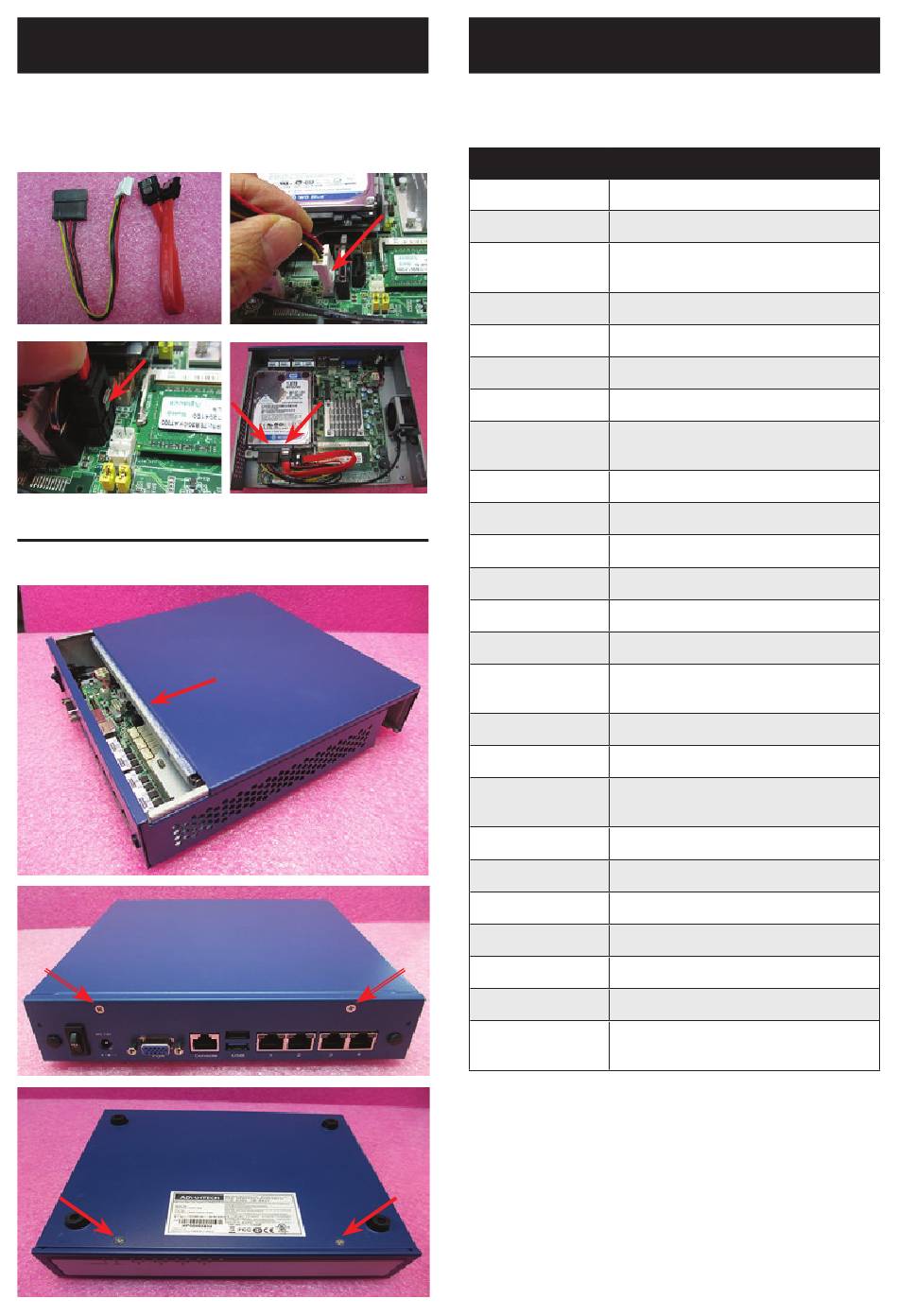

Installation (Cont.)
4. Take SATA cable and power cable from the accessory
box, then plug them into the correct connectors. The
cable connector applies "Fool Proof" design, so it won't
work properly if wrongly connected.
Install the Top Cover
1. Replace and fix the top cover with the four screws
removed earlier.
4 FWA-1330A Startup Manual
Jumpers and Connectors
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each of the jumpers and connectors.
Jumpers and Connectors
Label
Function
JCMOS1
Clear CMOS
BPLED1_2
Enable/Disable RJ45
BPLED2_3
LAN Bypass LED
PSON1
AT and ATX MODE Change
USB1_2
USB Connector on Rear
COM1
Console RJ45
COM2
COM Pin header
LAN1_2
Ethernet RJ45
LAN3_4
VGA1
VGA Display Connector on Rear
DIMM1
SODIMM Socket
SATA1
SATA Connectors
mSATA1
mSATA Socket
USB3_4
USB Pin Header
MINIPCIE1
MINI PCIE Socket
SATA_PWR1
Driver Power Connetor
SATA_PWR2
DC_CN1
ATX 4Pin Power Connector 12V
DC_JACK1
DC JACK 12V Input
SYSFAN1
4Pin Connector for Fan
SYSFAN2
KBMS1
PS/2 Connector
LPC1
LPC 80 Port Connector
GPIO1
GPIO Connector
PWR_BTN1
Power Button Signal Connector
SMB_CN1
SMBus connector
SYS_RST1
System Reset
SATA_PWR_
Pin Header for SATA LED/Power
LED1
LED
