Installation (Cont.)

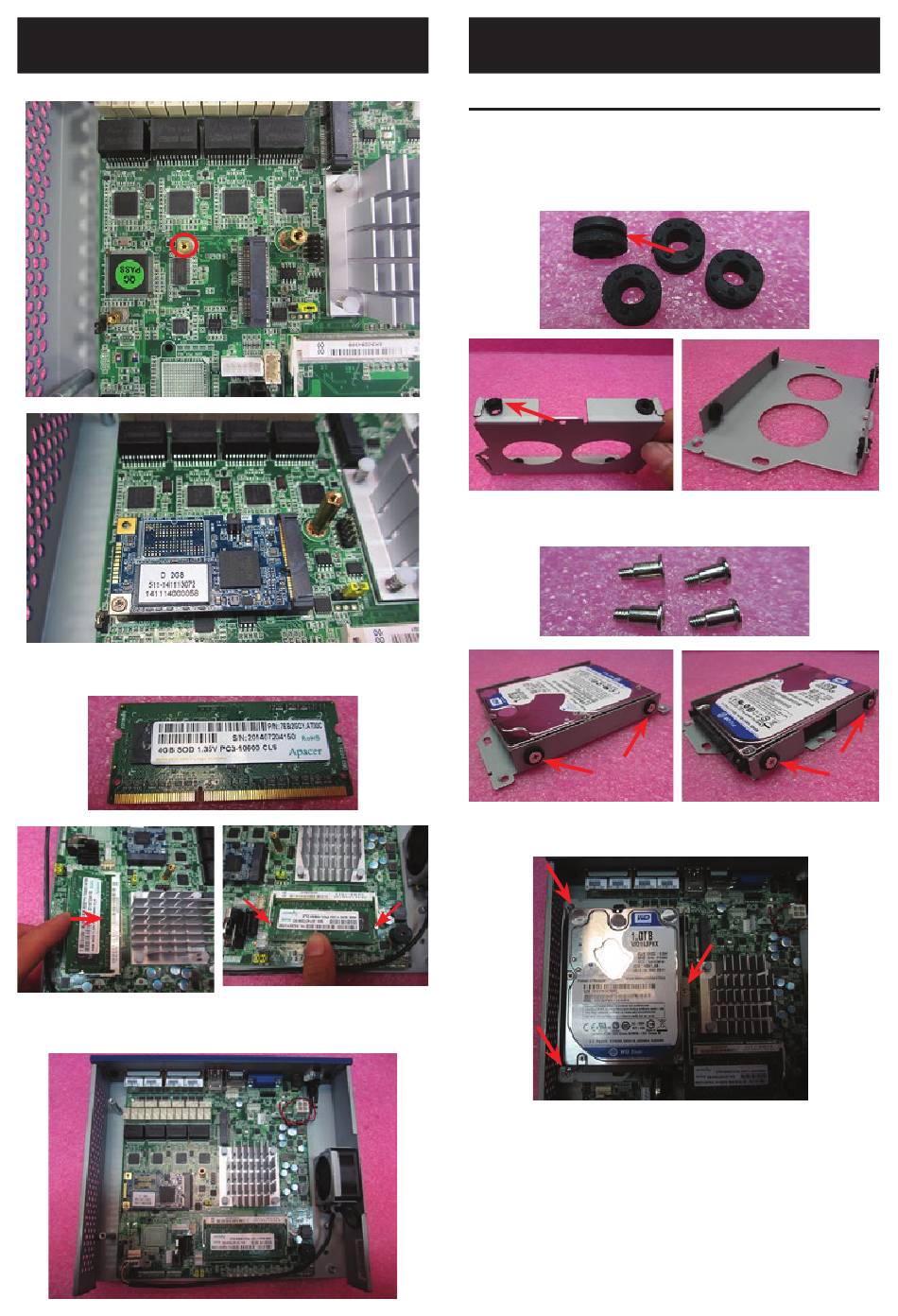

5. Get one memory card, then push it into DIMM slot and
press it, as shown in the following figures.
6. Now, mSATA and memory card have been successfully
installed.
Installation (Cont.)
Installing the HDD Module
1. Take four rubber washers out of the accessory box,
then put them into the four corresponding holes on
the HDD bracket. Note that the notch of the washer
should been fixed to the bracket appropriately like
below.
2. Take four screws from the accessory box and fix the
HDD into the the bracket.
3. Fix the HDD module with the three screws removed in
Step 1 of "Installing the mSATA & Memory".
FWA-1330A Startup Manual 3
