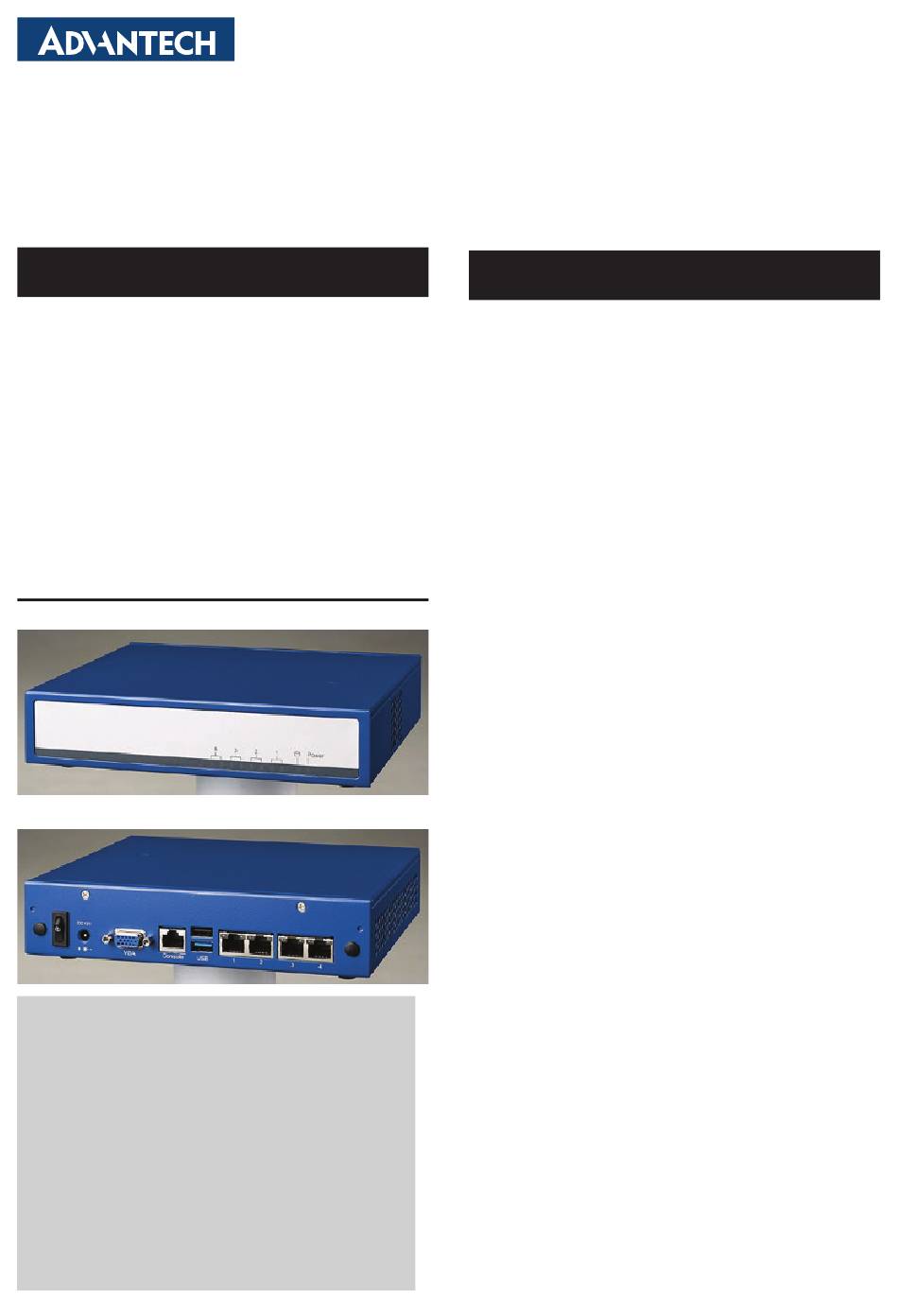

Advantech FWA-1330A Startup Manual

FWA-1330A
Tabletop Network Application Platform X86-Based
Intel® Bay Trail Processor
Startup Manual
Packing List
Before installation, ensure that the following materials have
been received:
• One FWA-1330A Internet Security Platform
• One box of accessories
• One warranty certificate
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader may be used to view any PDF file on
the CD. Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/readstep.html (Acrobat
is a trademark of Adobe).
FWA-1330A Internet Security Platform

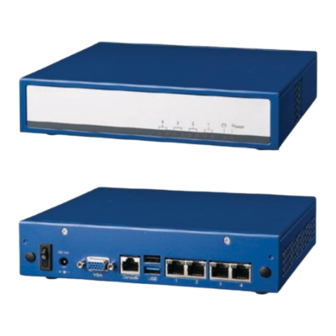

Front View
Back View
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the FWA-1330 series.
Part No. 2002A13310
Printed in Taiwan
Specifications
• CPU:Intel® Celeron® Processor J1900/N2807, Intel®
• Chipset: Intel Bay Trail SoC
• BIOS: AMI 16 Mbit SPI
• Memory: Single channel DDR3L 1333/1600 MHz SO-
• Network Connectivity:
• Mass Storage:
• Peripherals:
• Front LED Indicator:
• Power supply: Adapter 40W 12V
• Dimensions (W x H x D): 208 x 44 x 181 mm(8.19" x 1.73"
• Weight:1.8KG(3.96 lb)
• Environment: Operating
• Temperature: 0 ~ 40° C
• Humidity: 5 ~ 85% @ 40° C 5 ~ 95% @ 40° C
1st Edition,
August, 2015
Atom™ Processor E3800 Series
DIMM, up to 8GB
- Ethernet: 4 x Intel I211-AT 10/100/1000 Base-T Ethernet
- LAN Bypass: Up to 2 Segments
- mSATA: 1 x mSATA slot (Half Size or Full Size)
- SATA: 1 x SATA connector, Support one 2.5" HDD bay
- Console:1x Console port (RJ45 connector)
- USB:2 x USB2.0 Type A connector
- VGA:1 x VGA Ports on Rear panel
- Mini PCIE: 1 x Mini PCIE slot(Half Size, USB Interface
Default, PCIE Interface Option)
- Pin Header: PS/2, GPIO, Reset, COM
- Power LED:1 (Green)
- SATA LED:1 (Amber)
- LAN LED: 4 pairs (Speed and Status)
x 7.13")
(32 ~ 104° F)
FWA-1330A Startup Manual 1
Non-operating
-20 ~ 75° C
(-4 ~ 167° F)
