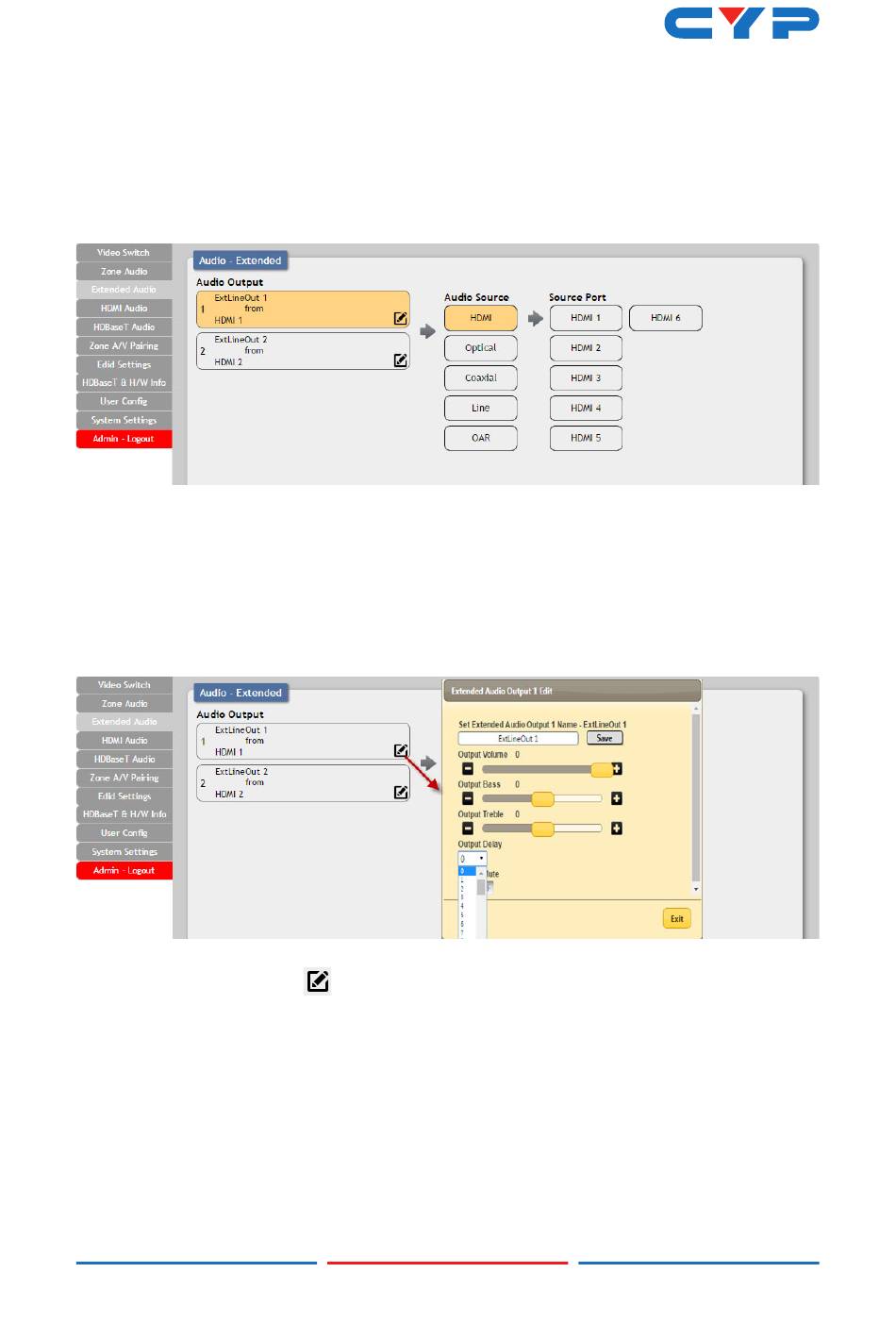

6.10.3 Extended Audio

The Extended Audio ports offer additional analog audio breakaway
capability. The audio source, treble, bass, volume and audio delay
adjustments can be set on this page.
• Output and Input Routing
Click the buttons from left to right to choose each output's source.
Once the new source has been selected, the change will happen
immediately. Audio source options include HDMI, Optical, Coaxial,
Line, and OAR.
• Extended Audio Output Setting
Click the "edit" icon ( ) to change the following settings:
- Rename: The Zone Audio outputs can be renamed here.
- Volume: Adjustable from -100dB to 0dB.
- Bass: Adjustable from -12dB to +12dB.
- Treble: Adjustable from -12dB to +12dB.
- Delay: Adjustable from 0 to 230ms.
- Mute: Mute may be turned on or off.
