• Internal Test Pattern
This advanced matrix system comes with an internal test pattern
generation feature which can be used to test connected sink device
functionality or be used to self-test matrix unit itself. This is a useful tool
for installation engineers to troubleshoot potential issues between the
matrix and connected devices.
This can also be used as a video source for any connected "audio
only" sources in cases where only a TV is available for audio
reproduction and it requires an active video source in order for the
audio to be heard.

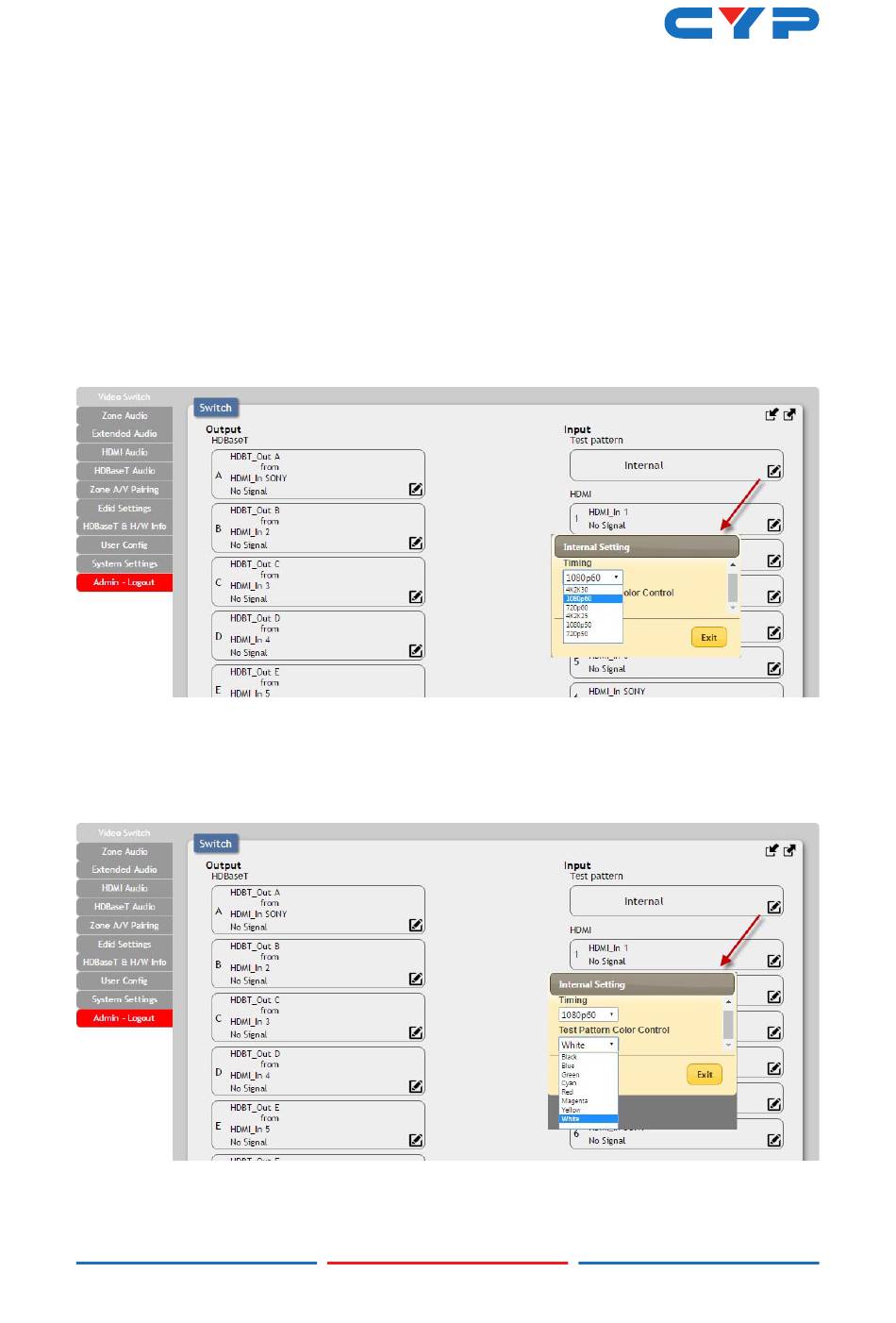

- Timing: Test patterns can be generated with the following standard
timings: 720p@50/60Hz, 1080p@50/60Hz, 4K@25/30Hz. Test pattern
output does not use HDCP.
- Color: The test pattern can be changed to any one of a choice of
eight colors.
