Maximalfd Battery Hookup And Tamper Switch Installation - Altronix Maximal FD Series Installation Manual

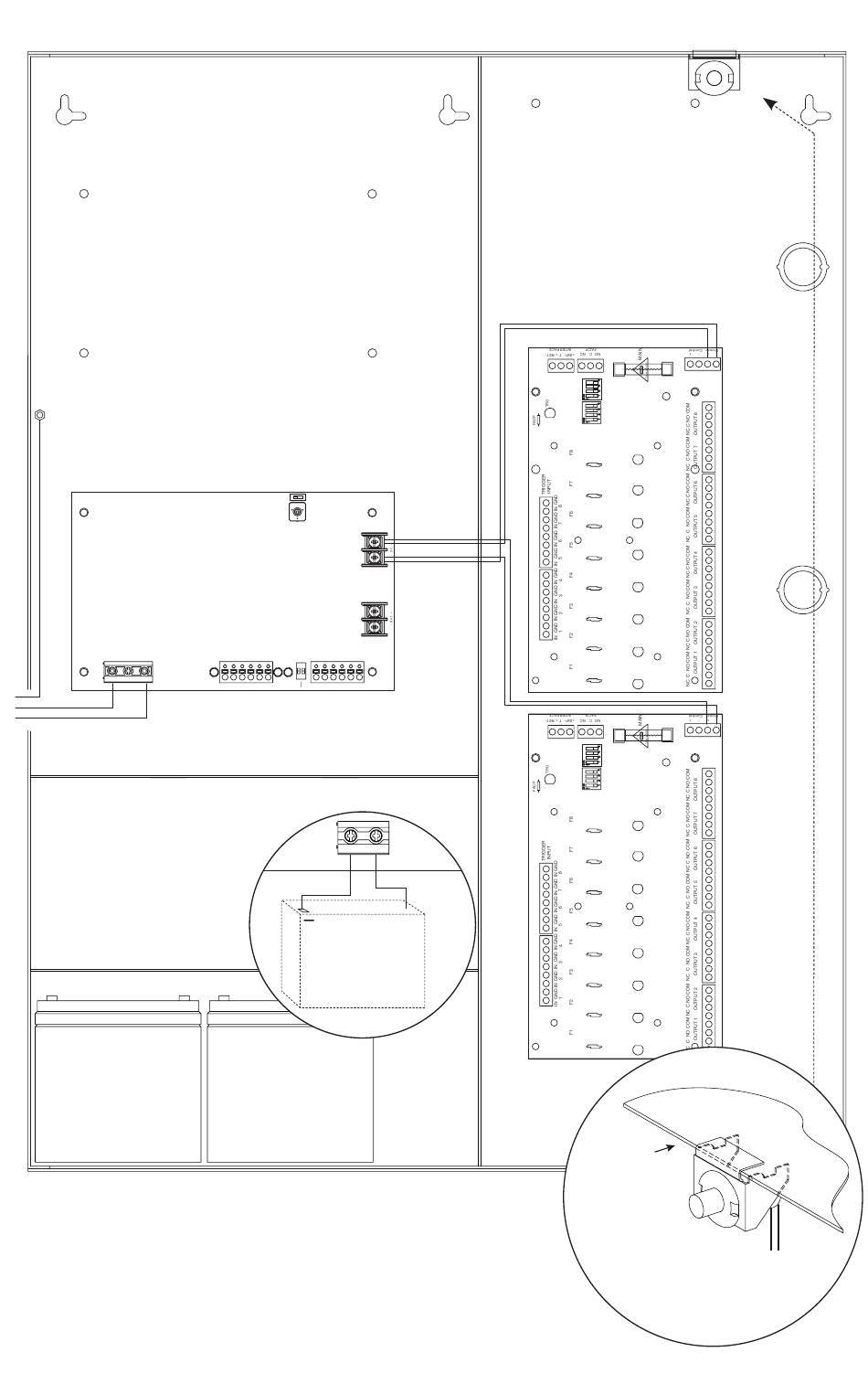

Fig. 3 - Maximal3FD, Maximal5FD, and Maximal7FD
Earth
Ground
Power Supply
L G N
Line Neutral
Input 120VAC, 60Hz
CAUTION: When power supply board is set for 12VDC
use only one (1) 12VDC stand-by battery.
Connect red battery lead to
the terminal marked [+ BAT]
and to the [positive (+)]
terminal of the battery.
Connect black battery lead to
terminal marked [BAT –]
and to the [negative (–)]
terminal of the battery.
Optional Rechargeable
Stand-by Battery
for UL294 Applications
Note: 12V batteries required
for ULC-S319 installations.
CAUTION: When power supply board is set for
12VDC use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non power-limited.
Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest batteries that
can fit in this enclosure. A UL listed external battery enclosure
must be used if using the 40AH or 65AH batteries.
- 10 -
OFF - 24V
ON - 12V
Board
AC1 AC DC
NC C NO NC C NO
TRIGGER EOL NO GND +AUX-
AC FAIL BAT FAIL SUPERVISED RESET
- BAT +
Optional
Rechargeable
Stand-by Battery
Optional Rechargeable
Stand-by Battery
for UL294 Applications
Note: 12V batteries required
for ULC-S319 installations.
Fig. 3a
Fig. 3b
Tamper Switch
Enclosure
Edge of
Enclosure
Tamper Switch
(provided)
To Access Control Panel or
UL Listed Reporting Device
Maximal3FD/5FD/7FD Series (PTC) Installation Guide
