If DHCP is off, set the unit IP Address, Subnet Mask, Gateway address, and DNS
4.
Primary address. The MAC Address cannot be editied.
Press the button for the address to be edited. A dialog box opens, showing the
a.
address and a numerical keypad.
IP Address
192.168.254.251
1 2
4 5
7 8
.
0
SUBMIT

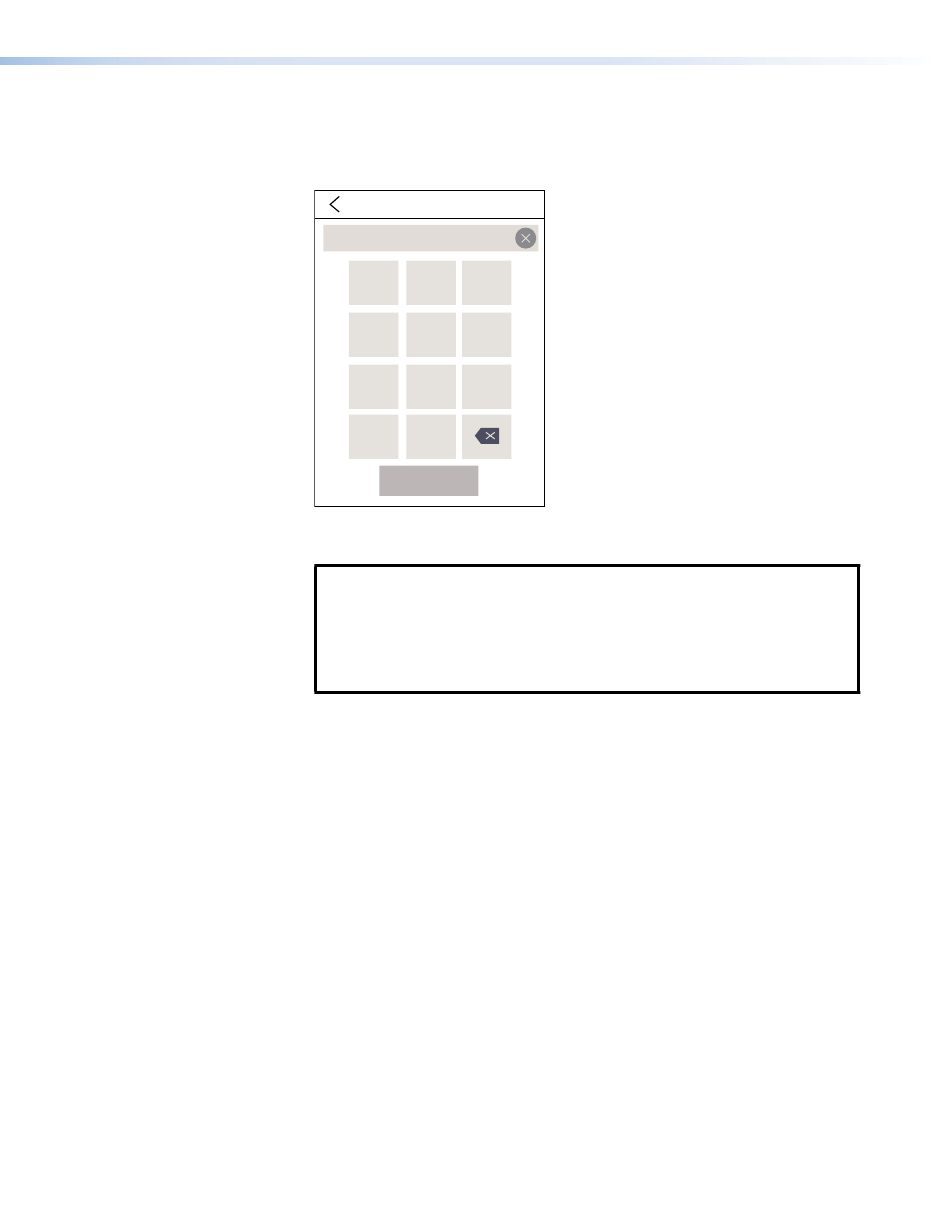

Figure 9. Numeric Pad for Setting IP Addresses
Enter the 3-digit value for that octet (leading zeroes in the octet are ignored).
b.
NOTES:
Octets can have any value between 0 and 255.
•
If you attempt to enter an invalid number, for example 892, you are able
•
to enter the 89 but the 2 cannot be entered.
When a valid three-digit value is entered, the next octet is automatically
•
selected.
SUBMIT to save the changes and return to the Network screen, or press the
Press
c.
< ) to return to the Network screen without saving the changes.
back button (
If changes have been made to the network address, the SUBMIT button changes
color to blue.
Press SAVE to apply the new values or press CANCEL to return to the previous values
5.
without saving the changes. The address button returns to gray.
If you have not made any changes, the SAVE and CANCEL buttons are grayed out and
do not function.
3
6
9
TLI Pro 201 • On-screen Menus 13
