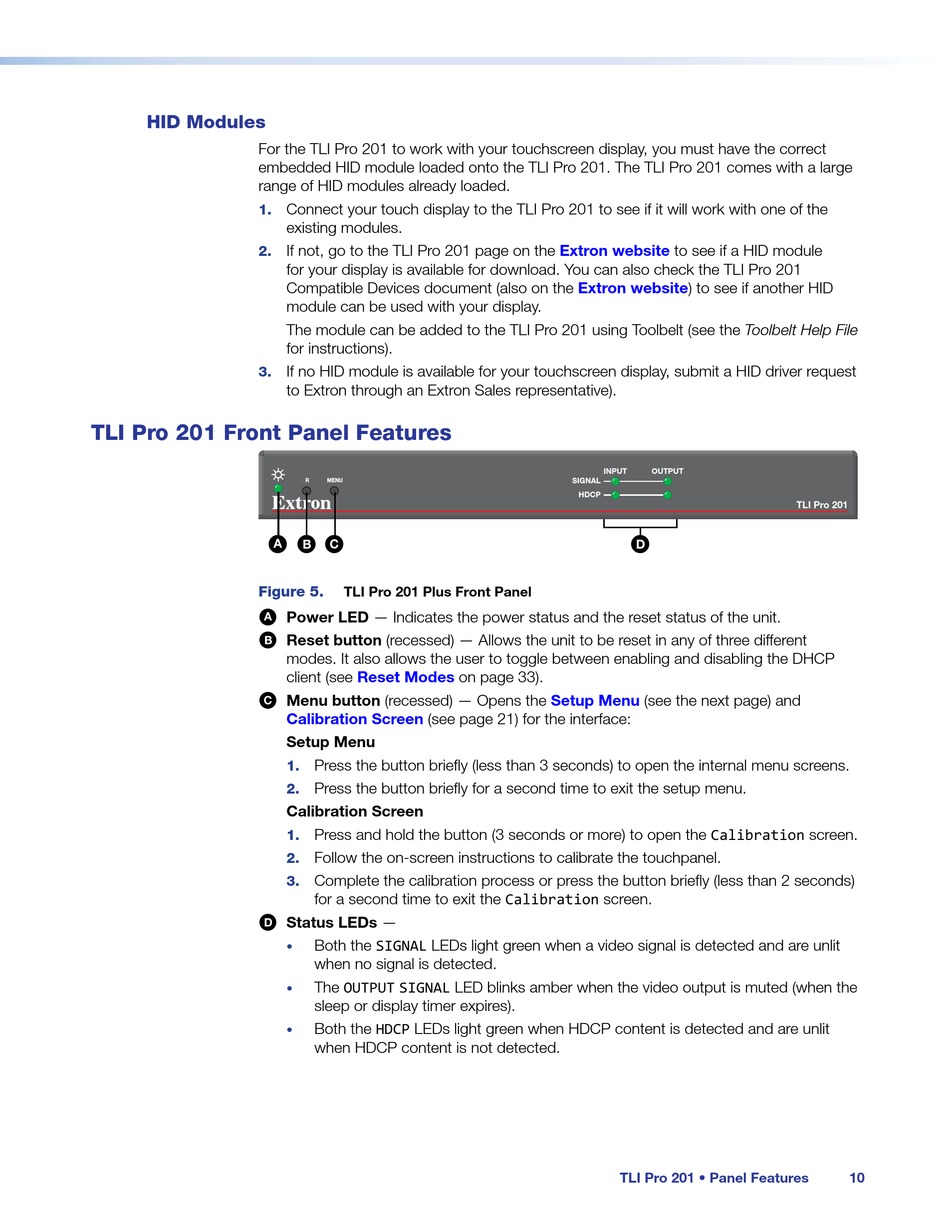

HID Modules

For the TLI Pro 201 to work with your touchscreen display, you must have the correct
embedded HID module loaded onto the TLI Pro 201. The TLI Pro 201 comes with a large
range of HID modules already loaded.
1.
2.
3.

TLI Pro 201 Front Panel Features

A A A B B B C C C
Figure 5.
A
B
C
D
Connect your touch display to the TLI Pro 201 to see if it will work with one of the
existing modules.
If not, go to the TLI Pro 201 page on the
for your display is available for download. You can also check the TLI Pro 201
Compatible Devices document (also on the
module can be used with your display.
The module can be added to the TLI Pro 201 using Toolbelt (see the Toolbelt Help File
for instructions).
If no HID module is available for your touchscreen display, submit a HID driver request
to Extron through an Extron Sales representative).
R MENU
TLI Pro 201 Plus Front Panel
Power LED — Indicates the power status and the reset status of the unit.
Reset button (recessed) — Allows the unit to be reset in any of three different
modes. It also allows the user to toggle between enabling and disabling the DHCP
Reset Modes
client (see on page 33).
Menu button (recessed) — Opens the
Calibration Screen (see page 21) for the interface:
Setup Menu
Press the button briefly (less than 3 seconds) to open the internal menu screens.
1.
Press the button briefly for a second time to exit the setup menu.
2.
Calibration Screen
Press and hold the button (3 seconds or more) to open the Calibration screen.
1.
Follow the on-screen instructions to calibrate the touchpanel.
2.
Complete the calibration process or press the button briefly (less than 2 seconds)
3.
for a second time to exit the Calibration screen.
Status LEDs —
Both the SIGNAL LEDs light green when a video signal is detected and are unlit
•
when no signal is detected.
The OUTPUT SIGNAL LED blinks amber when the video output is muted (when the
•
sleep or display timer expires).
Both the HDCP LEDs light green when HDCP content is detected and are unlit
•
when HDCP content is not detected.
Extron website to see if a HID module
Extron website) to see if another HID
INPUT OUTPUT
SIGNAL
HDCP
D D D
Setup Menu (see the next page) and
