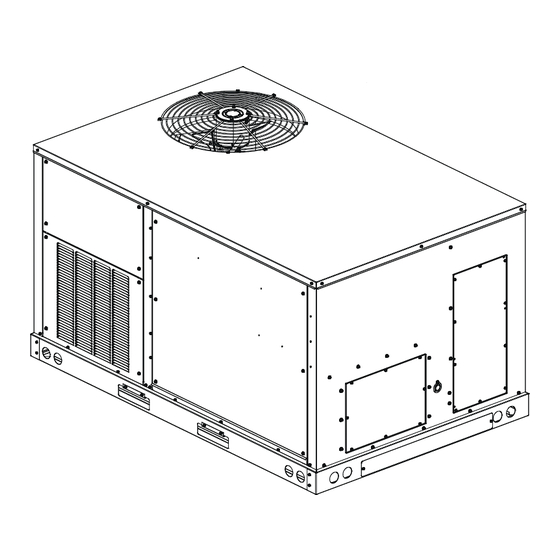

Daikin DRC036 Installation Instructions Manual

Packaged ir onditioner nd heat pum nit 3-6 ton hig efficiency ligth commercia

Hide thumbs Also See for DRC036:

Installation instructions manual (56 pages)

Installation instructions (4 pages)

Table Of Contents

Quick Links

Download this manual

ackaged

onditioner

igH

fficiency

Installation Instructions

Our continuing commitment to quality products may mean a change in specifications without notice.

IOD-1032F

12/ 2023

igHt

ommerciaL

19001 Kermier Rd., Waller, TX 77484

3-6 t

eat

umP

nit

drc/drH m

odeLs

ONLY PERSONNEL THAT HAVE BEEN TRAINED TO INSTALL,

ADJUST, SERVICE, MAINTENANCE OR REPAIR

(HEREINAFTER, "SERVICE") THE EQUIPMENT SPECIFIED IN

THIS MANUAL SHOULD SERVICE THE EQUIPMENT.

THIS EQUIPMENT IS NOT INTENDED FOR USE BY

PERSONS (INCLUDING CHILDREN) WITH REDUCED

PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR

LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY

HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION

CONCERNING USE OF THE APPLIANCE BY A PERSON

RESPONSIBLE FOR THEIR SAFETY.

CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT

THEY DO NOT PLAY WITH THE EQUIPMENT.

THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR

ANY INJURY OR PROPERTY DAMAGE ARISING FROM

IMPROPER SUPERVISION, SERVICE OR SERVICE

PROCEDURES. IF YOU SERVICE THIS UNIT, YOU ASSUME

RESPONSIBILITY FOR ANY INJURY OR PROPERTY

DAMAGE WHICH MAY RESULT. IN ADDITION, IN

JURISDICTIONS THAT REQUIRE ONE OR MORE LICENSES

TO SERVICE THE EQUIPMENT SPECIFIED IN THIS

MANUAL, ONLY LICENSED PERSONNEL SHOULD

SERVICE THE EQUIPMENT. IMPROPER SUPERVISION,

INSTALLATION, ADJUSTMENT, SERVICING, MAINTENANCE

OR REPAIR OF THE EQUIPMENT SPECIFIED IN THIS

MANUAL, OR ATTEMPTING TO INSTALL, ADJUST, SERVICE

OR REPAIR THE EQUIPMENT SPECIFIED IN THIS MANUAL

WITHOUT PROPER SUPERVISION OR TRAINING MAY

RESULT IN PRODUCT DAMAGE, PROPERTY DAMAGE,

PERSONAL INJURY OR DEATH.

Do not bypass safety devices.

www.daikincomfort.com

INSTALLATION INSTRUCTIONS

WARNING

Table of Contents

Need help?

Do you have a question about the DRC036 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daikin DRC036

Page 1 INSTALLATION INSTRUCTIONS 3-6 t ackaged onditioner drc/drH m fficiency igHt ommerciaL odeLs Installation Instructions WARNING ONLY PERSONNEL THAT HAVE BEEN TRAINED TO INSTALL, ADJUST, SERVICE, MAINTENANCE OR REPAIR (HEREINAFTER, “SERVICE”) THE EQUIPMENT SPECIFIED IN THIS MANUAL SHOULD SERVICE THE EQUIPMENT. THIS EQUIPMENT IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR...
Page 2: Table Of Contents
Safety Instructions............2 Replacement Parts............2 Do not connect to or use any device that is not design General Information............3 certified by daikin for use with this unit. Serious property damage, personal injury, reduced unit Unit Location..............4 performance and/or hazardous conditions may result Clearances...............5...
Page 3: General Information
Specification sheets can be found at www.daikinac.com for unit. The model number shown on the unit’s identification Daikin brand products. Within the website, please select plate identifies the various components of the unit such as the light commercial products menu and then select the refrigeration tonnage, heating output and voltage.
Page 4: Unit Location
UNIT LOCATION Roof top Installations Only: • To avoid possible property damage or personal injury, the roof must have sufficient structural WARNING strength to carry the weight of the unit(s) and snow or water loads as required by local codes. Consult a structural engineer to determine the weight To prevent possible equipment damage, property capabilities of the roof.
Page 5: Clearances
• Sufficient structural support must be determined prior there should be a minimum of 48” clearance and provisions to locating and mounting the curb and package unit. made to deflect the warm discharge air out from the • Ductwork must be constructed using industry overhang.
Page 6: Rigging Details
X (in) Y (in) • Unit must be lifted by the four lifting holes located at Weight (lb) Weight (lb) the base frame corners. DRC036 35.5 26.5 • Lifting cables should be attached to the unit with shackles. DRC048 34.2 26.8 •...
Page 7: Electrical Wiring
CAUTION CAUTION Conduit and fittings must be weather-tight to To prevent damage to the wiring, protect prevent water entry into the building. wiring from sharp edges. follow national electrical code and all local codes and ordinances. Do not route wires through For unit protection, use a fuse or HACR circuit breaker that removable access panels.
Page 8 Ensure the data plate is not covered by the field-supplied HP/AC Control Box disconnect switch. • Some disconnect switches are not fused. Protect the power leads at the point of distribution in accordance with the unit data plate. • The unit must be electrically grounded in accordance with prevailing local electrical codes (National Electrical Code, NFPA 70, or the Canadian Electrical Code, CSA C22.1, Part 1).
Page 9: Circulating Air And Filters
NOTE: Refer to unit wiring diagrams for HIGH VOLTAGE ENTRANCE (REMOVE PLUG) thermostat or remote sensor connections. CIRCULATING AIR AND FILTERS 19-3/8 Ductwork The supply duct from the unit through a wall may be 31-3/8 installed without clearance. However, minimum unit clearances must be maintained (see “Clearances”...
Page 10: Startup, Adjustments, And Checks
Horizontal Drain proper startup of the equipment in the minimum amount of Drainage of condensate directly onto the roof may be time. Air balancing of duct system is not considered part acceptable; refer to local code. It is recommended that a of this procedure.
Page 11: Air Flow Adjustments
Pre-startup Precautions Changing Speed Taps It is important to your safety that the unit has been properly Adjust the CFM for the unit by changing the position of grounded during installation. Check ground lug connection the low voltage leads on the terminal block TB1. Refer to in main control box for tightness prior to closing circuit Appendix A for blower performance at each speed tap.
Page 12 Model (°F) (°F) Device Stage Ambient (°F) perheat or counterclockwise (out) to decrease superheat. DRC036 14 - 16 11 - 13 It is recommended to make small adjustments at a time, DRC048 12 - 14 9 - 11 1/8-1/4 turn increments. Replace adjustment cap. Wait a...
Page 13 Refrigeration System Checks Perform the following to correct: This unit is equipped with thermal expansion valves. 7.1 Turn power to the unit OFF. Ensure the hold-down bolts on the compressor are secure 7.2 Switch any two leads of power supply at unit and have not vibrated loose during shipment.
Page 14: Heat Pump Operation
the test to another day when conditions are more It then goes through the expansion device to the outdoor suitable but-DO NOT FAIL TO TEST. If the outdoor coil (condenser on the cooling cycle) where the liquid is ambient is low and the unit operates properly on the evaporated, and the vapor goes to the compressor.
Page 15: Maintenance
the heat pump to the cooling cycle. At the same time, the The Self Contained Packaged Air Conditioner and Heat outdoor fan stops to hasten the temperature rise of the Pump should operate for many years without excessive outdoor coil and lessen the time required for defrosting. service calls if the unit is installed properly.
Page 16: Appendix A Blower Performance Tables - Ac
APPENDIX A BLOWER PERFORMANCE TABLES - AC 3 Ton 3 Ton Standard Static Drive Standard Static Drive Models: DRC0361D and DRC0363D Models: DRC0364D and DRC0367D DOWNFLOW HORIZONTAL DOWNFLOW HORIZONTAL EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED SPEED PRESSURE SCFM RPM BHP...
Page 17 APPENDIX A BLOWER PERFORMANCE DATA - AC 4 Ton 4 Ton Standard Static Drive Standard Static Drive Models: DRC0481D and DRC0483D Models: DRC0484D and DRC0487D DOWNFLOW HORIZONTAL DOWNFLOW HORIZONTAL EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED SPEED PRESSURE SCFM RPM BHP...
Page 18 APPENDIX A BLOWER PERFORMANCE TABLES - AC 5 Ton 5 Ton Standard Static Drive Standard Static Drive Models: DRC0601D and DRC0603D Models: DRC0604D and DRC0607D DOWNFLOW HORIZONTAL DOWNFLOW HORIZONTAL EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED SPEED PRESSURE SCFM RPM BHP...
Page 19: Appendix A Blower Performance Tables
APPENDIX A BLOWER PERFORMANCE TABLES - AC 6 Ton Cooler Standard Static Drive Models: DRC0723D, DRC0724D and DRC0727D Down Flow Horizontal Flow EXTERNAL EXTERNAL STATIC STATIC SPEED TORQUE SPEED TORQUE PRESSURE SCFM RPM BHP PRESSURE SCFM RPM BHP OZ-FT OZ-FT (ESP), (ESP), IN WC...
Page 20 APPENDIX A BLOWER PERFORMANCE TABLES - AC 3 Ton Cooler 3 Ton Cooler High Static Drive High Static Drive Models: DRC0363W, DRC0364W, DRC0367W Models: DRC0363W, DRC0364W, DRC0367W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED SPEED PRESSURE SCFM RPM BHP...
Page 21 APPENDIX A BLOWER PERFORMANCE TABLES - AC 4 Ton Cooler 4 Ton Cooler High Static Drive High Static Drive Models: DRC0483W, DRC0484W, DRC0487W Models: DRC0483W, DRC0484W, DRC0487W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED SPEED PRESSURE SCFM RPM BHP...
Page 22 APPENDIX A BLOWER PERFORMANCE TABLES - AC 5 Ton Cooler 5 Ton Cooler High Static Drive High Static Drive Models: DRC0603W, DRC0604W, DRC0607W Models: DRC0603W, DRC0604W, DRC0607W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED SPEED PRESSURE SCFM RPM BHP...
Page 23 APPENDIX A BLOWER PERFORMANCE TABLES - AC 6 Ton Cooler 6 Ton Cooler High Static Drive High Static Drive Models: DRC0723W, DRC0724W, DRC0727W Models: DRC0723W, DRC0724W, DRC0727W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED SPEED PRESSURE SCFM RPM BHP...
Page 24 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 3 Ton Heat Pump 3 Ton Heat Pump Standard Static Drive Standard Static Drive Models: DRH0361D and DRH0363D Models: DRH0364D and DRH0367D DOWNFLOW HORIZONTAL DOWNFLOW HORIZONTAL EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED...
Page 25 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 4 Ton Heat Pump 4 Ton Heat Pump Standard Static Drive Standard Static Drive Models: DRH0481D and DRH0483D Models: DRH0484D and DRH0487D DOWNFLOW HORIZONTAL DOWNFLOW HORIZONTAL EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED...
Page 26 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 5 Ton Heat Pump 5 Ton Heat Pump Standard Static Drive Standard Static Drive Models: DRH0601D and DRH0603D Models: DRH0604D and DRH0607D DOWNFLOW HORIZONTAL DOWNFLOW HORIZONTAL EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED...
Page 27 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 6 Ton Heat Pump Standard Static Drive Models: DRH0723D, DRH0724D and DRH0727D Down Flow Horizontal Flow EXTERNAL EXTERNAL STATIC STATIC SPEED SPEED PRESSURE SCFM RPM BHP PRESSURE SCFM RPM BHP (ESP), (ESP), IN WC IN WC 1394...
Page 28 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 3 Ton Heat Pump 3 Ton Heat Pump High Static Drive High Static Drive Models: DRH0363W, DRH0364W, DRH0367W Models: DRH0363W, DRH0364W, DRH0367W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED...
Page 29 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 4 Ton Heat Pump 4 Ton Heat Pump High Static Drive High Static Drive Models: DRH0483W, DRH0484W, DRH0487W Models: DRH0483W, DRH0484W, DRH0487W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED...
Page 30 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 5 Ton Heat Pump 5 Ton Heat Pump High Static Drive High Static Drive Models: DRH0603W, DRH0604W, DRH0607W Models: DRH0603W, DRH0604W, DRH0607W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED...
Page 31 APPENDIX A BLOWER PERFORMANCE TABLES - HEAT PUMP 6 Ton Heat Pump 6 Ton Heat Pump High Static Drive High Static Drive Models: DRH0723W, DRH0724W, DRH0727W Models: DRH0723W, DRH0724W, DRH0727W DOWNFLOW Horizontal EXTERNAL EXTERNAL EXTERNAL EXTERNAL STATIC STATIC STATIC STATIC SPEED SPEED SPEED...
Page 32 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP The following tables are provided for reference only to show DDC control settings relationship to unit CFM. Blower Speed settings must be set to meet the minimum required CFM of their stages. 3 TON MODELS : DRC0363D,DRC0364D &...
Page 33 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP 4 TON MODELS : DRC0483D,DRC0484D & DRC0487D WITH DDC CONTROL STANDARD STATIC DOWN FLOW DDC % DDC % DDC % DDC % DDC % 0.10 0.15 0.20 0.28 0.36 1000 0.14 0.20 0.25 0.35 0.43...
Page 34 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP 5 TON MODELS : DRC0603D,DRC0604D & DRC0607D WITH DDC CONTROL STANDARD STATIC DOWN FLOW DDC % DDC % DDC % DDC % DDC % 0.10 0.16 0.21 0.29 0.30 1100 0.14 0.21 0.27 0.36 0.38...
Page 35 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP 6 TON MODELS : DRC0723D,DRC0724D & DRC0727D WITH DDC CONTROL STANDARD STATIC DOWN FLOW DDC % DDC % DDC % DDC % DDC % 1200 0.17 0.23 0.28 0.34 0.47 1400 0.23 0.29 0.35 0.42...
Page 36 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP 3 TON MODELS : DRH0363D,DRH0364D & DRH0367D WITH DDC CONTROL STANDARD STATIC DOWN FLOW DDC % DDC % DDC % DDC % DDC % 0.06 0.09 0.13 0.16 0.22 0.08 0.12 0.17 0.21 0.27 1000...
Page 37 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP 4 TON MODELS : DRH0483D,DRH0484D & DRH0487D WITH DDC CONTROL STANDARD STATIC DOWN FLOW DDC % DDC % DDC % DDC % DDC % 0.10 0.13 0.17 0.22 0.26 1000 0.14 0.17 0.22 0.28 0.32...
Page 38 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP 5 TON MODELS : DRH0603D,DRH0604D & DRH0607D WITH DDC CONTROL STANDARD STATIC DOWN FLOW DDC % DDC % DDC % DDC % DDC % 0.08 0.09 0.15 0.20 0.27 1100 0.11 0.13 0.20 0.26 0.34...
Page 39 APPENDIX A BLOWER PERFORMANCE DATA -AC & HP 6 TON MODELS : DRH0723D,DRH0724D & DRH0727D WITH DDC CONTROL STANDARD STATIC DOWN FLOW DDC % DDC % DDC % DDC % DDC % 1200 0.17 0.23 0.28 0.34 0.47 1400 0.23 0.29 0.35 0.42...
Page 40: Appendix B Electrical Data
APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 26.2/26.2 40/40 9.6/8.7 35.8/34.9 50/50 1.7/1.5...
Page 41 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 10.1 14.4 10.6 14.9 10.6...
Page 42 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 34.3/34.3 50/50 9.6/8.7 43.9/43.0 60/60 1.7/1.5...
Page 43: Appendix B Electrical Data
APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Model Electrical Compressor Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA Part # 11.0 15.3 11.5 15.8 11.0 16.0 EH*D-4S05 6.01 11.5 16.6 18.2 23.5...
Page 44 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 43.2/43.2 70/70 9.6/8.7 52.8/51.9 70/70 1.7/1.5...
Page 45 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Model Electrical Compressor Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA Part # 13.6 17.9 14.1 18.4 13.6 17.9 EH*D-4S05 6.01 14.1 18.4 18.2 23.5...
Page 46 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 29.0/29.0 45/45 9.6/8.7 38.6/37.7 50/50 1.7/1.5...
Page 47 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Model Electrical Compressor Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating Part # 13.9 18.2 14.4 18.7 13.9 18.2 EH*D-4S05 6.01 14.4 18.7 18.2 23.5 EH*D-4S10 18.8...
Page 48 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 26.2/26.2 40/40 9.6/8.7 35.8/34.9 50/50 1.7/1.5...
Page 49 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Model Electrical Compressor Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 10.1 14.4 10.6 14.9 17.6...
Page 50 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Model Electrical Compressor Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 36.8/36.8 50/50 9.6/8.7 46.4/45.5 60/60 1.7/1.5...
Page 51 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Model Electrical Compressor Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA Part # 12.1 16.4 12.6 16.9 19.6 23.9 EH*D-4S05 6.01 20.1 24.4 27.1 31.4...
Page 52 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 44.1/44.1 70/70 9.6/8.7 53.7/52.8 80/70 1.7/1.5...
Page 53 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA Part # 13.6 17.9 14.1 18.4 21.2 25.5 EH*D-4S05 6.01 21.7 26.0 28.7 33.0...
Page 54 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Compressor Model Electrical Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating QTY RLA LRA QTY HP FLA QTY HP FLA Part # 29.0/29.0 45/45 9.6/8.7 38.6/37.7 50/50 1.7/1.5...
Page 55 APPENDIX B ELECTRICAL DATA Outdoor Fan Indoor Fan Optional Optional Powered Optional Power Model Electrical Compressor Motor Motor Electric Heat Convienience Outlet Power Exhaust Supply Number Rating Part # 13.9 18.2 14.4 18.7 21.4 25.7 EH*D-4S05 6.01 21.9 26.2 29.0 33.3 EH*D-4S10 29.5...
Page 56: Appendix C Unit Dimensions
APPENDIX C UNIT DIMENSIONS 73-3/8" 47-5/8" "A" 74" 48-5/16" UNIT HEIGHT HORIZONTAL CONDENSATE DRAIN TONNAGE DIM "B" (BELOW) DIM "C" (BELOW) DIM "A" (ABOVE) 3 TON 39-7/8" 43-1/2" 11-1/2" 15" 15" 4 TON 43-1/2" 20" 8-1/8" 5 TON 53-3/4" 15" 6 TON 19-1/2 RETURN...
Page 57: Appendix D Air Flow For Electric Heat
APPENDIX D AIR FLOW FOR ELECTRIC HEAT AIR FLOW FOR ELECTRIC HEAT HEATER KIT MODEL NUMBER NOMENCLATURE HEATER KIT MINIMUM MAXIMUM UNIT MODEL NUMBER Electric Heater EH*D-*S05A 3 ton AC EH*D-*S10A STD Static Heater Type EH*D-*S15A Staged EH*D-*S05A 3 ton HP SCR (modulating) EH*D-*S10A STD Static...
Page 58: Wiring Diagrams
WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 59 WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 60 WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 61 WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 62 WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 63 WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 64 WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 65 WIRING DIAGRAMS Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.
Page 68: Customer Feedback
CUSTOMER FEEDBACK Daikin Comfort Technologies is very interested in all product comments. Please fill out the feedback form on the following link: https://daikincomfort.com/contact-us You can also scan the QR code on the right to be directed to the feedback page.
