AJAX LeaksProtect Manual

LeaksProtect
1. FEATURES

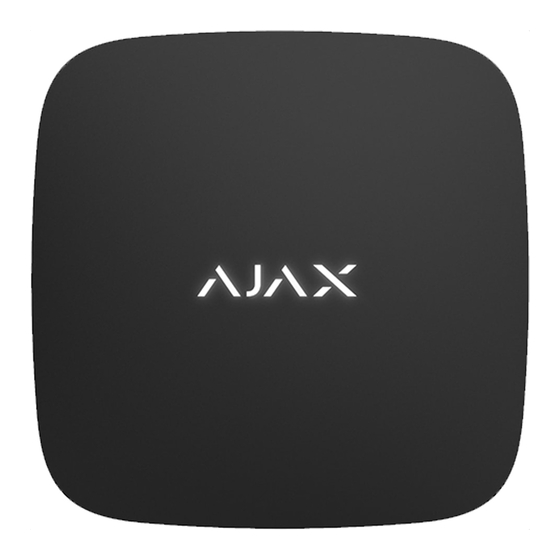

Wireless LeaksProtect flood detector is designed to detect water leakage.
2. SPECIFICATIONS
SPECIFICATION MEANING
Detector type Wireless
Use Indoor
Radio signal power 20 mW
Communication protocol Jeweller (868 or 915 MHz depending on the
country of distribution)
Maximum distance between
Up to 1,000 m (3,300 ft) (in open area)
detector and central unit
Polling interval 3 min
Transmission of alarm after
Immediately
detection
Battery type 2 ААА
Power supply voltage 3V
Battery life Up to
Operating temperature range From 0°С (+32°F) to +50°С (+122°F)
Tamper protection Аvailable
Alarm for detector's
Available
displacement
Operating humidity Up to 100%
Ingress protection IP65
Dimensions 56х56x14 mm
3. PACKAGE CONTENTS
Flood detector, manual, 2 batteries ААА (
4. GETTING STARTED
4.1 Before installing the detector it is required to register it in Ajax security system. To
register detector, Ajax security system receiving device must be set in "Add Device" mode
(refer to receiving unit user's manual) and switch on the detector with the power button
"3" (PICTURE 1) (the detector is switched on/off by holding down the power button for
three seconds). When switching on, detector will blink with a green light. Request for
registration is transmitted only when sensor is switching on! If sensor registration in the
security system for whatever reason did not take place, LeaksProtect blinks 6 times once
every second with green light, then switches off automatically (quickly blinking 3 times
with red light). After that sensor can be switched on again. If LeaksProtect has been
removed from registered devices list in security system, it also blinks 6 times with a green
LED and switches off automatically (quickly blinking 3 times with red light). Flood sensor
5 years
pre-installed)
always works in the active mode, when using it with third party central unit (panel), it is
desirable to place detector in a constantly active 24-hour security zone!
PICTURE 1. LeaksProtect Flood sensor
1 – light
2 – water sensor contacts
4.2 After successful sensor registration select optimal location for its installation.
IMPORTANT! Make sure that in the installation location sensor has a stable radio contact
with the receiver! A maximum distance of 1000 m (3300 ft) between the sensor and the
receiver is mentioned as a comparison with other devices. This distance was found as a
result of open area tests. Connection quality and distance between the sensor and the
receiver can vary depending on installation location, walls, compartments, bridgings, as
well as the thickness and constructional material. Signal coming through the obstacles,
loses power. For example, distance range between the sensor and receiver, divided with
two reinforced concrete bearing walls, constitutes approximately 30 m (98 ft). Please note
that moving the sensor even 10 cm (4 in), it is possible to improve the signal reception
considerably.
Before installation make sure to check the signal level test in the place where you intend
to install the sensor! It is possible to launch a signal strength test on the receiver's side.
Test launching is described in the receiver's manual.
RECEIVER SENSOR'S LIGHT
lights almost constantly, with
3 indication bars
short breaks every 1.5 seconds
2 indication bars blinks 5 times per second
1 indication bar blinks twice per second
0 bars short flashes each 1.5 seconds
3 – power button
4 – fixing screws
DESCRIPTION
excellent signal level
medium signal level
bad signal level
no signal
