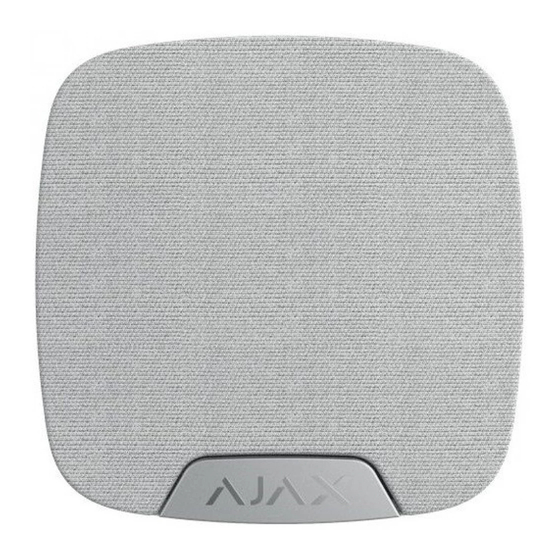

HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only
for indoor use. It can be quickly installed and set up, is furnished with a LED (plus
allows connecting an external LED), and can operate up to 5 years from a battery.
HomeSiren operates within the Ajax security system, by connecting via the
protected
Jeweller
meters if there are no obstacles.
The siren is set up via a
smartphones. The user is noti�ed of all events through push noti�cations, SMS
messages and calls (if activated).
Operates only with
modules is not provided.
HomeSiren User Manual
Updated April 13, 2021
protocol to the
hub
mobile application
Ajax hubs
. Connection to
. The communication range is up to 2,000
for iOS and Android-based
ocBridge Plus
and
uartBridge
integration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HomeSiren and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX HomeSiren

Summary of Contents for AJAX HomeSiren

  • Page 1 HomeSiren User Manual Updated April 13, 2021 HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only for indoor use. It can be quickly installed and set up, is furnished with a LED (plus allows connecting an external LED), and can operate up to 5 years from a battery.

  • Page 2: Functional Elements

    The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company. Buy home siren HomeSiren Functional elements 1. Light indicator 2. Siren buzzer covered with a fabric 3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to tear off the siren from the surface) 4.
  • Page 3 Connecting the Siren to the hub The HomeSiren siren operates only with the Ajax security system. Up to 10 sirens may be connected to the Ajax hub Before starting connection: 1.
  • Page 4 Request for connection to the hub is transmitted for a short time at the time of switching on the device. If the connection to the Ajax hub failed, the siren will switch off after 6 seconds. You may repeat the connection attempt then. To retry the connection, you do not need to turn off the device.
  • Page 5 States 1. Devices 2. HomeSiren Parameter Value Temperature of the device. Measured on the Temperature processor and changes gradually Jeweller Signal Strength Signal strength between the hub and the siren Connection Connection status between the hub and the siren Battery level of the device. Two states available: ОК...

  • Page 6: Setting Up The Detector

    Setting Up the Detector 1. Devices 2. HomeSiren 3. Settings Setting Value First �eld Device name, can be edited Selecting the virtual room to which the device is Room assigned Selecting the security group to which the siren is assigned. When assigned to a group, the siren...
  • Page 7 Setting up the processing of detector alarms Through the Ajax app, you can con�gure which detector alarms can activate the siren. This can help to avoid situations when the security system noti�es of LeaksProtect detector alarm or any other device alarm. The parameter is adjusted in the detector or device settings: 1.
  • Page 8 5. Enable the Alert with a siren if the hub or detector lid is open option. Setting the response to pressing the panic button in the Ajax The siren can respond to pressing the panic button in Ajax apps. Note that the panic button can be pressed even if the system is disarmed! For the siren to respond to pressing the panic button: 1.
  • Page 9 Thanks to this feature, system users and security companies patrols can understand that the alarm has occurred. The siren after-alarm indication does not work for always active detectors, if the detector was triggered when the system was disarmed. To enable the siren after-alarm indication, in Ajax PRO app...
  • Page 10 Lid opening 3. Select the sirens needed. Go back to Siren Settings. The set parameters will be saved. 4. Click Back. All values will be applied. HomeSiren with �rmware 5.55.2 and later supports this function. Indication Event Indication Emits an acoustic signal (the duration depends on...

  • Page 11: Performance Testing

    Jeweller Signal Strength Test Attenuation Test Installing the Siren Location of the HomeSiren determines its remoteness from the hub and presence of any obstacles between the devices, hindering the radio signal and sound transmission: walls, inserted �oors, large-size objects located within the room.

  • Page 12: Installation Process

    If the signal level is one division, we cannot guarantee stable operation of the security system. Take possible measures to improve the quality of the signal! As a minimum, move the device — even 20 cm shift can signi�cantly improve the quality of reception.

  • Page 13: External Led Connection

    Ajax Security System application and then the �xing tightness of the device on the panel. In case of any attempt to dismount the siren, you will receive the noti�cation. Do not install the siren: 1.

  • Page 14: Tech Specs

    If the battery is discharged, the security system will send respective notices and the LED will smoothly light up and goes out when the armed mode is activated. How long Ajax devices operate on batteries, and what affects this Battery Replacement Tech specs Type of noti�cation...

  • Page 15: Complete Set

    Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, Certi�cation EN 50131-4, EN 50131-5-3 Complete Set 1. HomeSiren 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) — 2 pcs 4. LED connection clamp 5. Installation Kit...
  • Page 16 User Agreement Technical support: support@ajax.systems...
