Fire Protect User Manual

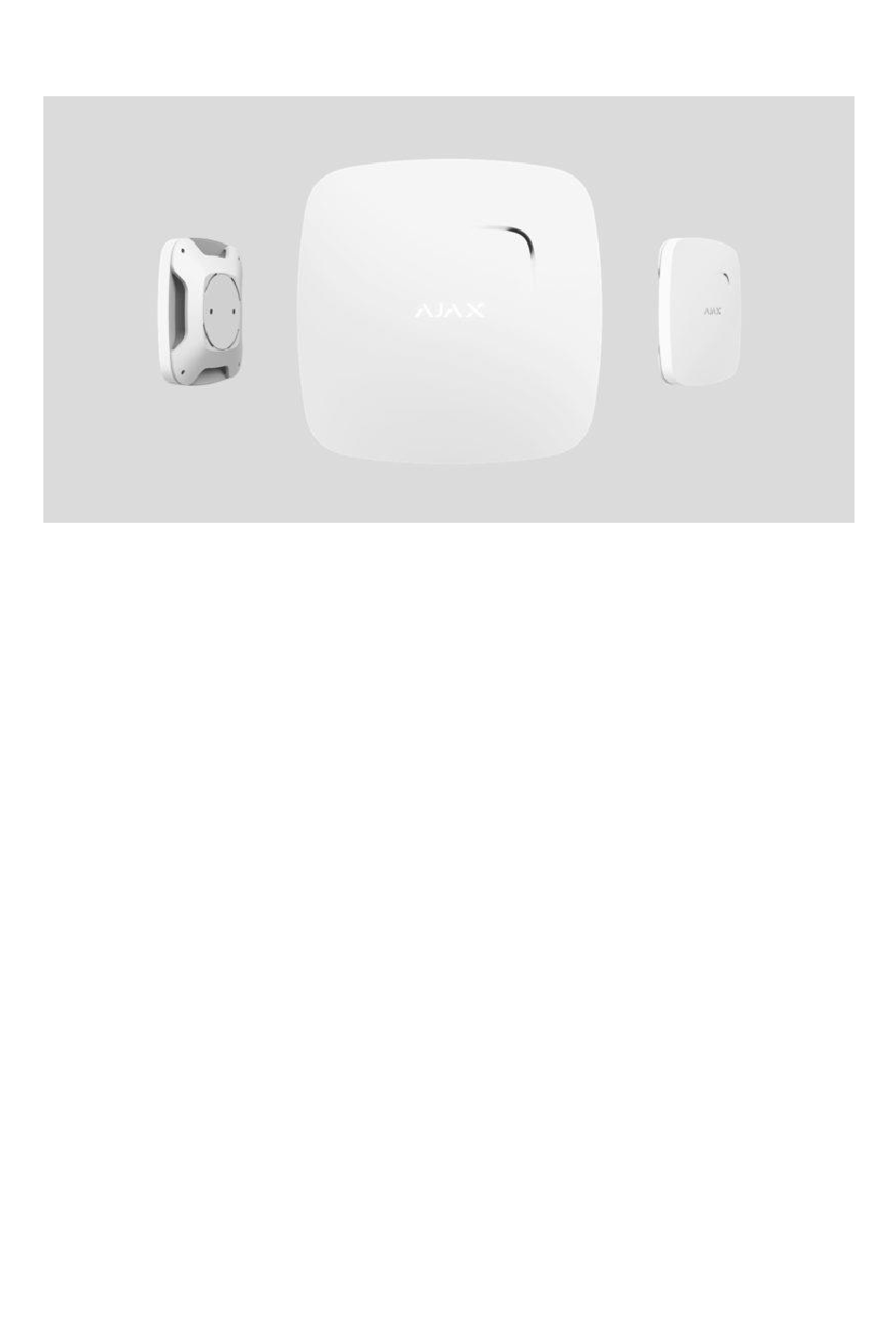

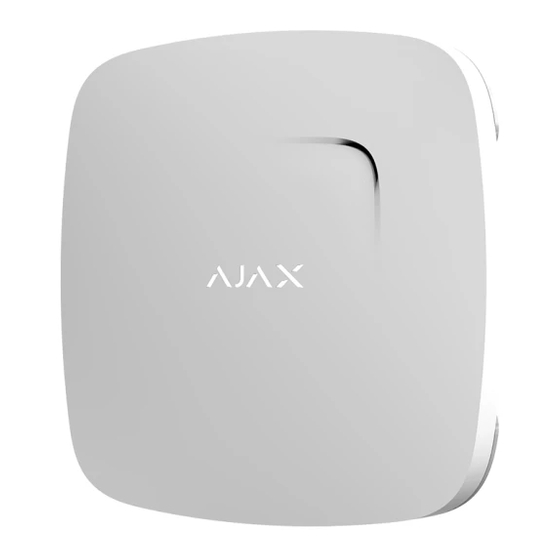

Fire Protect is a wireless indoor fire detector with an in-built buzzer and a
battery, ensuring up to 4 years of autonomous operation. Fire Protect can
detect smoke and rapid temperature increase.
Connecting to the Ajax security system via a secured Jeweller radio
protocol, Fire Protect
(Fire Protect
Plus) communicates with the hub at a
distance of up to 1,300 m in line of sight.
The detector can be a part of third-party security systems, connecting to
them via the Ajax uartBridge or Ajax ocBridge Plus integration module.
The detector is set up via the Ajax apps for iOS, Android, macOS, and
Windows. The system notifies the user of all events through push
notifications, SMS, and calls (if activated).
The Ajax security system can be connected to a central monitoring station
of a security company.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AJAX Fire Protect
Summary of Contents for AJAX Fire Protect
- Page 1 Fire Protect User Manual Fire Protect is a wireless indoor fire detector with an in-built buzzer and a battery, ensuring up to 4 years of autonomous operation. Fire Protect can detect smoke and rapid temperature increase. Connecting to the Ajax security system via a secured Jeweller radio...
-
Page 2: Functional Elements
Functional Elements 1. Siren hole 2. Light indicator (acts as the sensor and Test button) 3. Smoke chamber hole with the temperature detector behind the net 4. Smart Bracket attachment panel 5. Power button 6. Tamper button 7. QR code Operating Principle When smoke penetrates the detector chamber, it distorts infrared light between the emitter and photoelectric receiver. - Page 3 The siren can be turned off by pressing the touch button (the center of the light indicator) or in the Ajax app. If smoke and temperature levels do not restore to normal values, in 10 minutes, the detector turns on the siren again.
- Page 4 3. Tap Add — the countdown will start. 4. Switch on the device. To make sure that the detector is on, press the on/off button — the logo will light up red for a second. For detection and pairing to occur, the detector should be located within the coverage area of the wireless network of the hub (at a single protected object).
- Page 5 States 1. Devices 2. FireProtect | FireProtect Plus Parameter State Temperature of the device. Measures on the device processor Temperature and changes gradually Jeweller Signal Strength Signal strength between the hub and the detector Connection Connection status between the hub and the device Battery Charge Primary battery level of the device The tamper state of the device —...
- Page 6 Backup battery level of the device Smoke sensor The state of the smoke detector Smoke sensor dust level The dust level in the smoke chamber Firmware Detector firmware version Device ID Device identifier Setting 1. Devices 2. Fire Protect | Fire Protect Plus 3. Settings...
- Page 7 CO concentration is dangerous Jeweller Signal Strength Test Switches the device to the signal strength test mode Fire Protect Self-Test Starts Fire Protect self-test User Guide Opens the detector User Guide Un pair Device Disconnects the sensor from the hub and deletes its settings...
-
Page 8: Performance Testing
– the detector will test the smoke chamber with electronic simulation of smoke generation and then will switch on the siren for 6 seconds. You will receive the notification in the Ajax app regarding the test result and detector status. Installation... - Page 9 The location of the detector depends on its remoteness from the hub, and obstacles hindering the radio signal transmission: walls, floors, large objects inside the room. Check the Jeweller signal level at the installation location If the signal level is low (one bar), we cannot guarantee the stable operation of the detector.
- Page 10 If LED doesn’t blink after fixing in Smart Bracket, check the status of the tamper in the and then the fixing tightness of the panel. Ajax app If someone detaches the detector from the surface or takes it off the attachment panel, the security system notifies you.
-
Page 11: Maintenance And Battery Replacement
In case of autonomous use, the detector notifies of the detected fire/smoke with the siren sound and light of the logo. To switch off the siren, press the logo (there is a sensor button) or eliminate the cause of the actuated alarm. Maintenance and Battery Replacement Check the operational capability of the detector regularly. -
Page 12: Tech Specs
Tech Specs Smoke-sensitive element Photoelectric sensor Temperature sensitive element Thermocouple Sound notification volume 85 dB at a distance of 3 m Alarm threshold at the +59°С ±2°С temperature Tamper protection 868.0 – 868.6 MHz or 868.7 – 869.2 MHz depending on the Frequency band region of sale Operates independently or with Hub, Hub Plus, Hub... -
Page 13: Complete Set
5. Installation kit 6. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should first contact the support...
