Installation

DC-D4216X(-A), DC-D4216RX(-A)
1

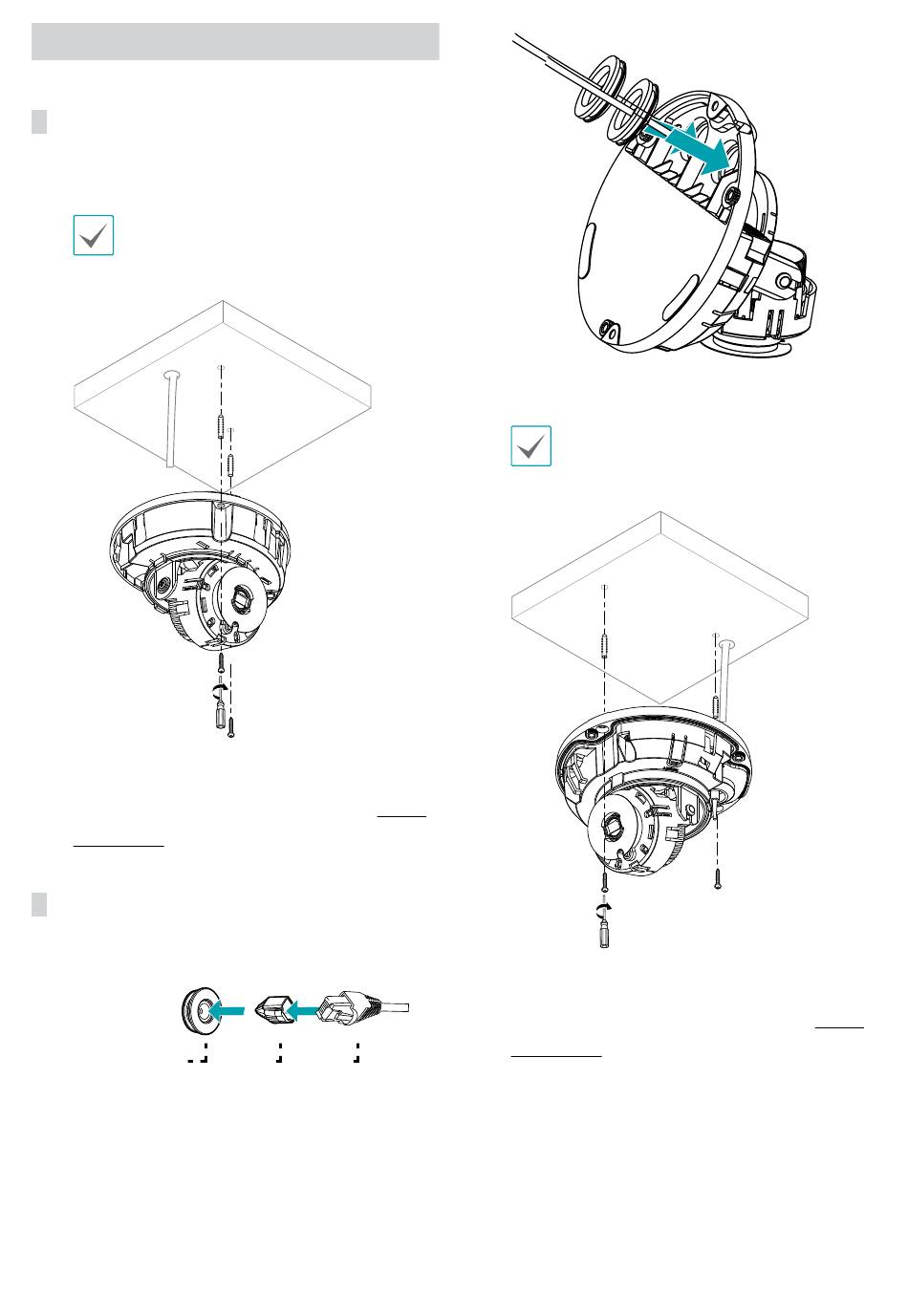

Use the screws, anchor provided with the camera
to secure the bottom cover on a wall or a ceiling.
Use the provided guide pattern to check
the distance between the screw holes if
necessary.
2
Connect external devices, the network cable, and
the power adapter.
3
Adjust the angle. For more details, refer to Angle
Adjustment.
DC-D4216WRX(-A)
1
Push the network cable through the cable rubber,
using the protective connector provided.
Cable rubber
2
Assemble the cable rubber to the bottom cover.
Network Camera
Protect Cable
connector
3
Use the screws, anchor provided with the camera
to secure the bottom cover on a wall or a ceiling.
Use the provided guide pattern to check
the distance between the screw holes if
necessary.
4
Connect external devices, the network cable, and
the power adapter.
5
Adjust the angle. For more details, refer to Angle
Adjustment.
6
Attach the enclosed desiccant to the designated
space inside the dome cover using double-sided
tape as shown below.
7
