REDCAT ACCESS REGISTRATION GUIDE
STANDARD REGISTRATION
MEDIA CONNECTOR REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)
(Particularly valuable when Redcat is mounted on the wall)
For users adding a Media Connector or replacing a lost or malfunctioning Media Connector.

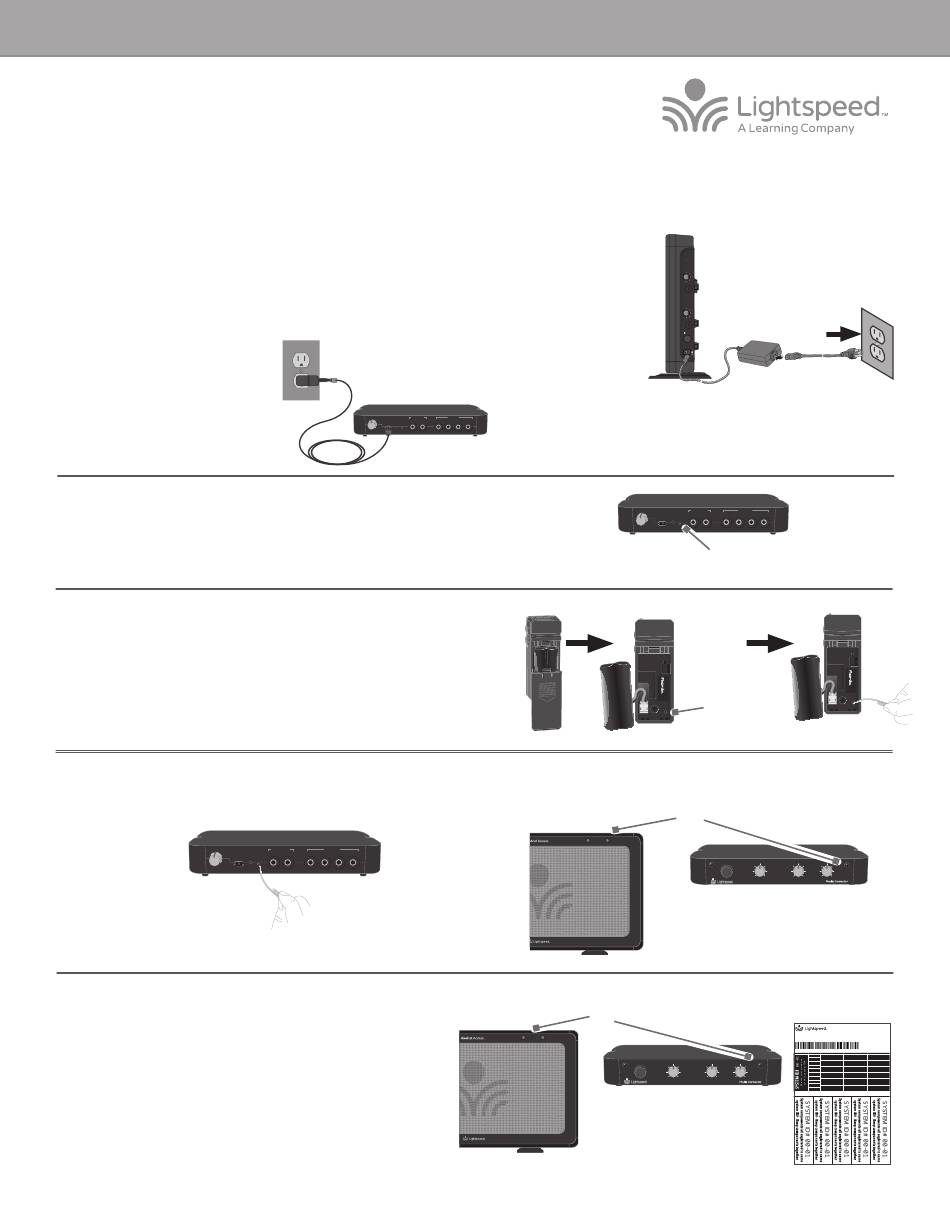

1. Start with the Redcat plugged in and powered on.
2. If replacing a Media Connector, make sure the malfunctioning Media Connector is
unplugged.
3. Plug in the new Media Connector. The blue power light will turn on.
4. Locate the registration button on the back panel marked "REGISTER"
5. Use another registered functional component (existing Flexmike or Sharemike) to
trigger the registration function in Redcat. (For the purpose of these instructions,
it is assumed that a Flexmike is the the existing registered component.)
• Using a paperclip with the end straightened out, press and hold the
registration button for 3 seconds inside the registered Flexmike.
• The 1 and 2 amber lights will begin blinking on the Redcat.
6. Briefly press the registration button on the Media Connector. The REGISTER light will begin blinking.
TONE
USB POWER
TREBLE BASS
5V/1.5A
7. After several seconds, the #1 light on the Redcat will turn solid. The
LINK light on front of the Media Connector will begin blinking, then
turn solid.
8. The registration is complete. You can now plug any audio source into
the Media Connector to verify there is audio.
9. Place system ID number (attached to the Redcat Quickstart Guide) on
the new Flexmike.
NOTE: if at any point, the Redcat or Media Connector lights begin
blinking rapidly, that indicates a registration error. Unplug the Media
Connector, then repeat steps 3-8.
TONE AUDIO OUT
1 2
USB POWER
TREBLE BASS REGISTER
5V/1.5A
AUDIO OUT AUDIO IN
1 2 1 2 3 4
REGISTER
AUDIO IN
1 2 3 4
1 POWER 2
Solid lights
1 POWER 2
REGISTER
AUDIO IN
MIN
MAX
REGISTER
AUDIO
(ALD) OUT
MIN
MAX
ON/OFF
DC INPUT
16V/2.0A
AUDIO IN
MIN
MAX
AUDIO
TONE AUDIO OUT AUDIO IN
1 2 1 2 3 (ALD) OUT 4
USB POWER
TREBLE BASS REGISTER
5V/1.5A MIN
Registration
Button
MAX
ON/OFF
Registration
DC INPUT
Button
16V/2.0A
Blinking lights
MICROPHONE AUDIO IN
POWER
MIN MAX MIN MAX
Apply to system components to indicate which parts are registered
as a system. Keep registered items together when storing away.
334-0162-02-00-01
00-01
00-01
LINK
MICROPHONE AUDIO IN AUDIO OUT 00-01
POWER
00-01
00-01
00-01
00-01
MIN MAX MIN MAX MIN MAX
00-01
00-01
00-01
RETAIN EXTRA LABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.
AUDIO OUT LINK
MIN MAX
Registration ID Labels
