REDCAT ACCESS REGISTRATION GUIDE
STANDARD REGISTRATION
REPLACING A FLEXMIKE (NO OTHER REGISTERED COMPONENTS IN PLACE)
For users replacing a lost or malfunctioning Flexmike.

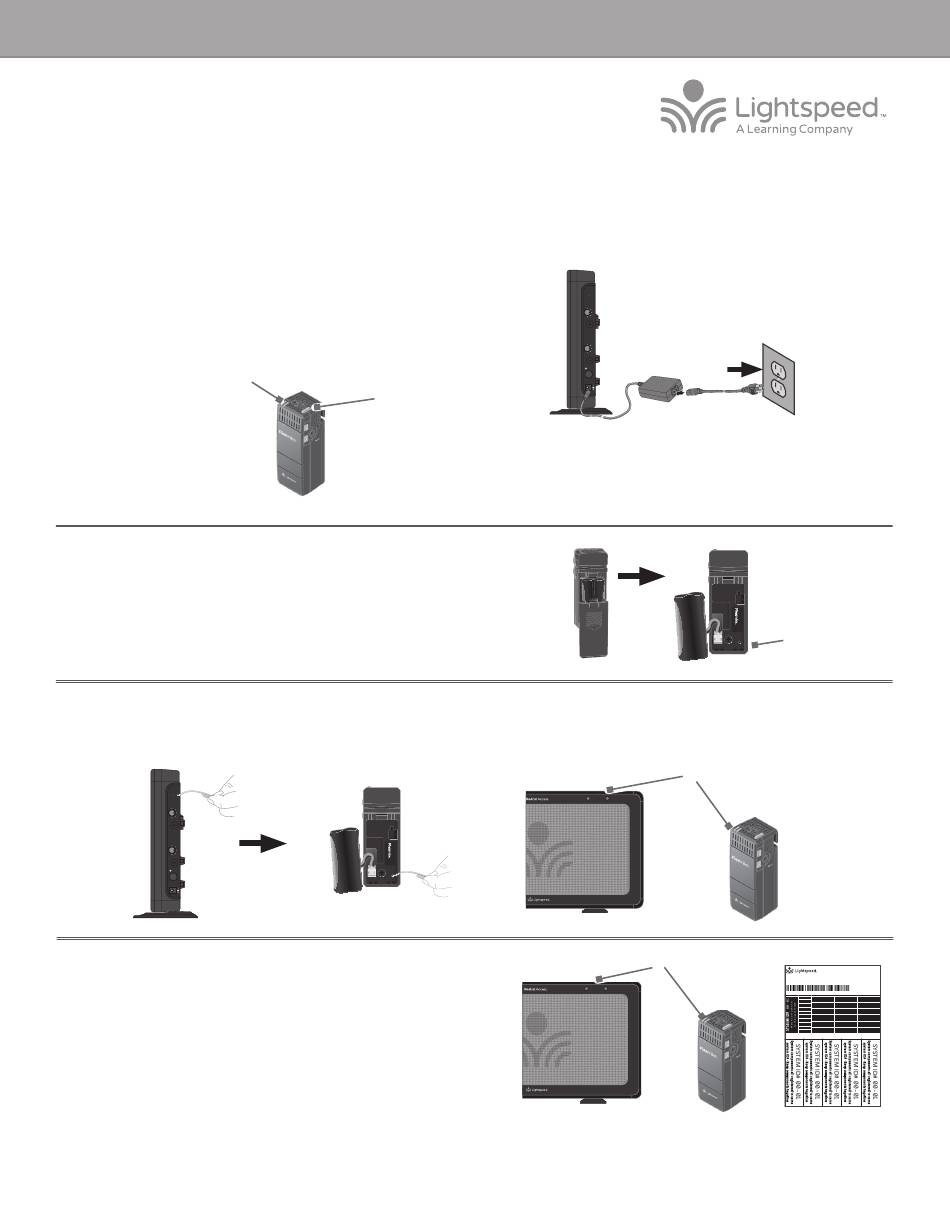

1. Start with the Redcat plugged in and powered on.
2. If replacing a Flexmike, make sure the malfunctioning Flexmike is powered off.
3. Power on the new Flexmike. Both microphone 1 and 2 blue lights should start
blinking.
Blinking lights
4. Open the Flexmike battery compartment and pull the battery out (leaving it
plugged in) to reveal the registration button.
5. Using a paperclip with the end straightened out, briefly press the registration button on the side of the Redcat. The 1 and 2
lights will begin blinking on the Redcat.
6. Briefly press the registration button on the Flexmike. The 1 and 2 lights will start blinking alternately.
REGISTER
AUDIO IN
MIN
MAX
AUDIO
(ALD) OUT
MIN
MAX
ON/OFF
DC INPUT
16V/2.0A
7. After several seconds, the #1 light on the Redcat will turn solid and the #1 light on
Flexmike will remain blinking, then turn solid.
8. The registration is complete. You can begin speaking into the new Flexmike to
verify there is audio.
9. Place system ID number (attached to Redcat Quickstart Guide) on the new
Flexmike.
NOTE: if at any point, the Redcat or Flexmike lights begin blinking rapidly, that
indicates a registration error. Turn the new Flexmike off and repeat steps 4-9.
Power On
(NEW Flexmike)
REGISTER
AUDIO IN
MIN
MAX
AUDIO
(ALD) OUT
MIN
MAX
ON/OFF
DC INPUT
16V/2.0A
Blinking lights
1 POWER 2
Solid lights
1 POWER 2
Registration
Button
Registration ID Labels
Apply to system components to indicate which parts are registered
as a system. Keep registered items together when storing away.
334-0162-02-00-01 10101
00-01 00-01 00-01
00-01
00-01
00-01 00-01 00-01
00-01
00-01
00-01 00-01 00-01
00-01
00-01 00-01 00-01
00-01
00-01
00-01 00-01 00-01
00-01
00-01 00-01 00-01 00-01
00-01
RETAIN EXTRA LABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.
