Figure

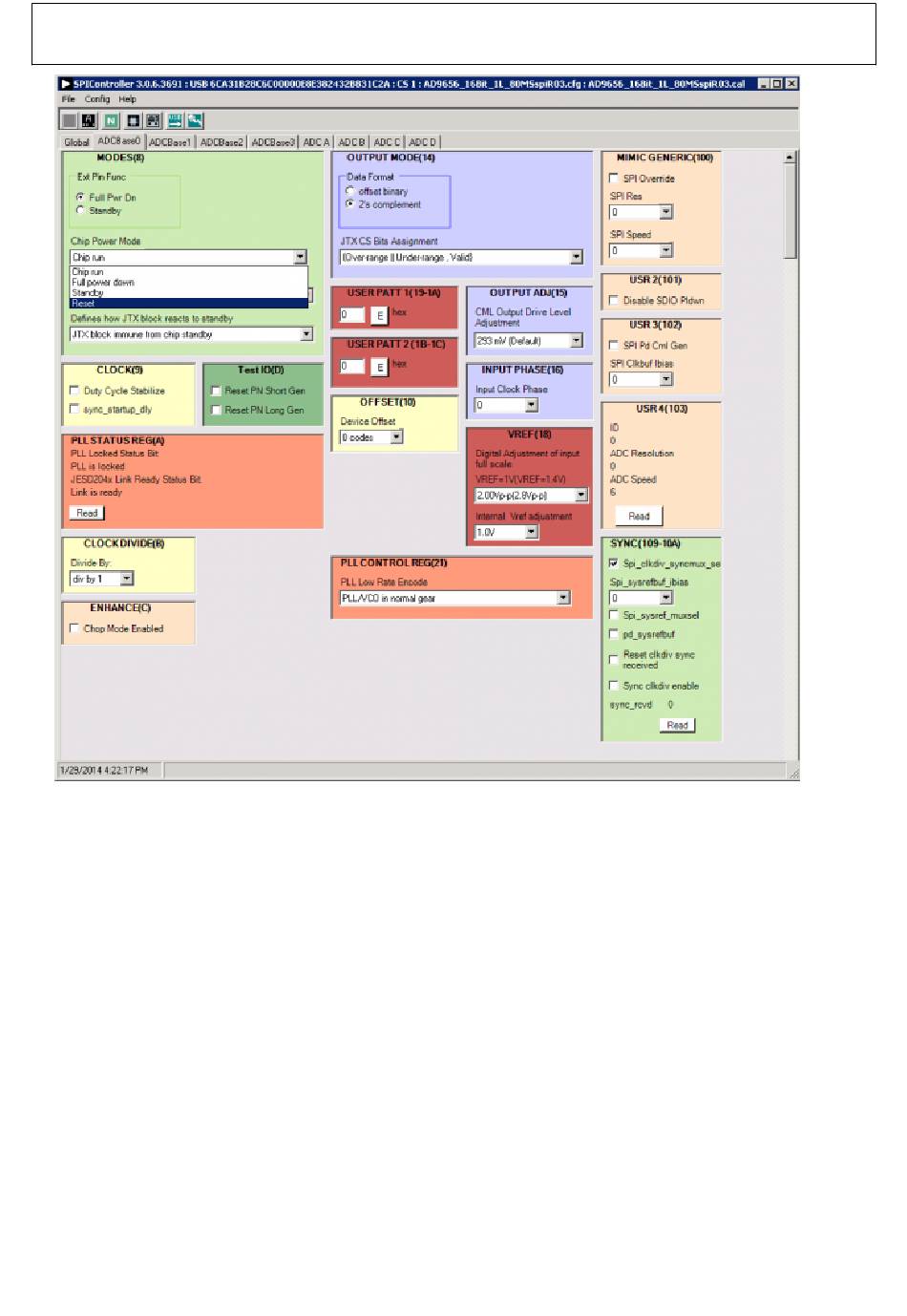

14. SPI Controller, Chip Power Mode - Digital Reset Selection
4.
In the ADCBase1 tab of the SPIController window, set the number of lanes the AD9656 will be
configured to. Note that the number of lanes selected here must match the settings made in
VisualAnalog as shown in Step 7, Figure 10 above.
Rev 20 Feb 2014 17:53 | Page 15
