SPIController software desktop icon. If prompted for a configuration file, select .cfg file whose
name begins with AD9656. If not prompted, check the title bar of the window to determine which
configuration is loaded. If necessary, choose Cfg Open from the File menu and select the
appropriate file based on your part type. Note that the CHIP ID(1) box should be filled to indicate
whether the correct SPI controller configuration file is loaded (see Figure 11).

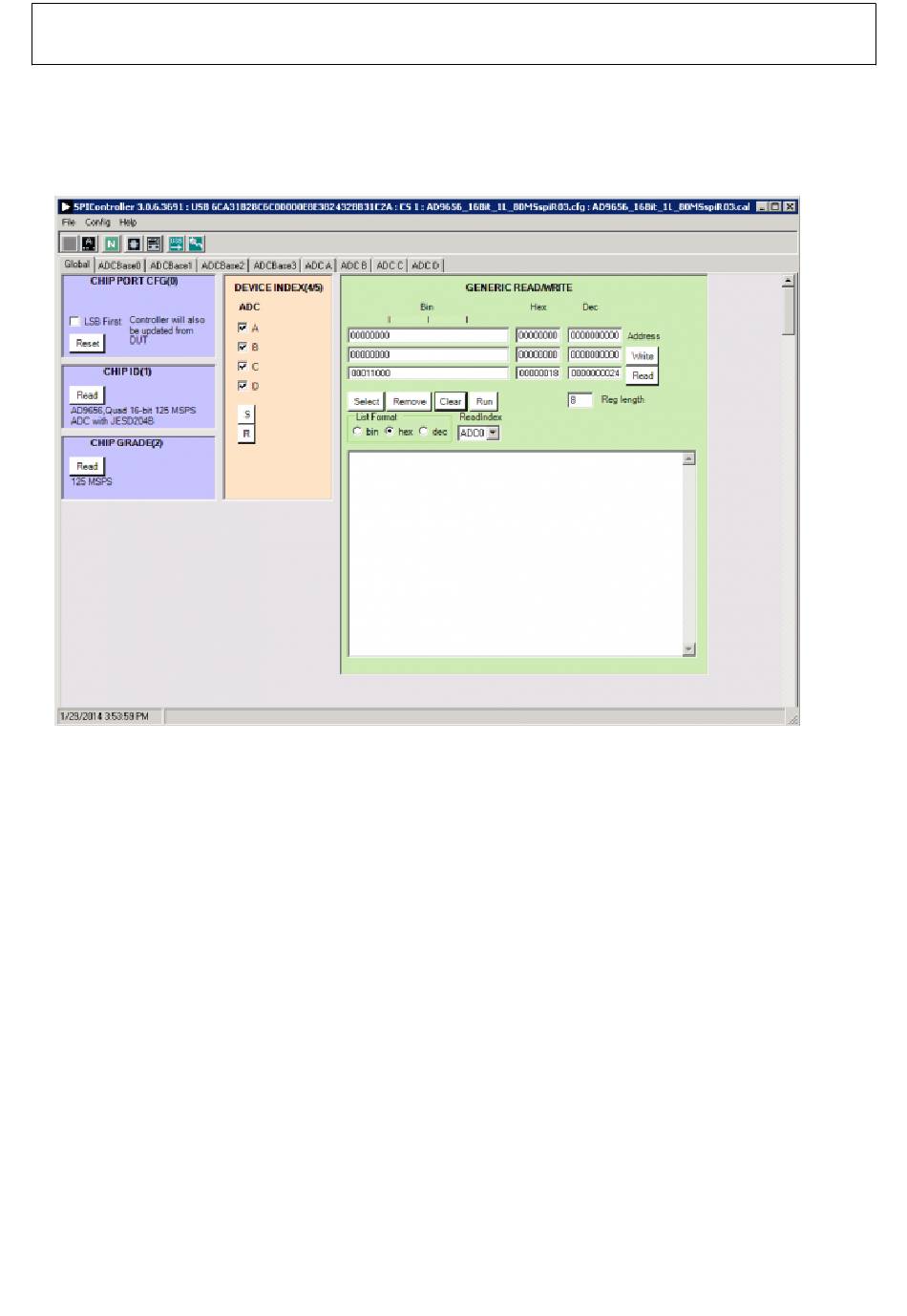

Figure
11. SPI Controller, CHIP ID(1) Box
2. Click the New DUT button in the SPIController window (see Figure 12)
