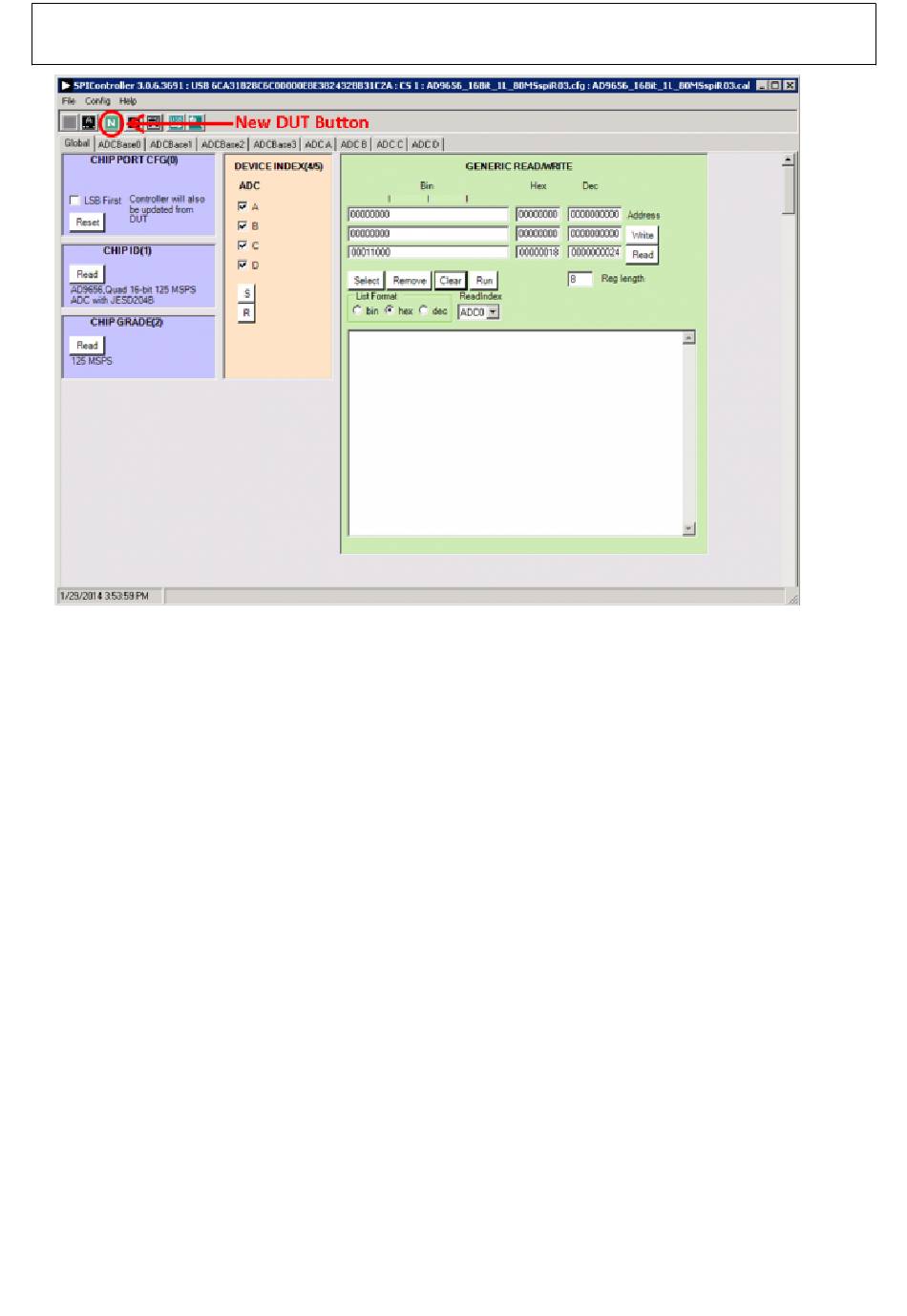

12. SPI Controller, New DUT Button

In the ADCBase0 tab of the SPIController window, find the CLOCK DIVIDE(B) box (see Figure

13), and the MODES(8) box (see Figure 14). If using the clock divider, use the drop-down box to

select the correct clock divide ratio, if necessary. If there is any interruption of the ADC clock

during power-up or during operation, a Digital Reset may be needed to re-initialize the ADC (Figure

14). For additional information, refer to the data sheet, the

AN-878 Application

Note, High Speed

ADC SPI Control Software, and the

AN-877 Application

Note, Interfacing to High Speed ADCs via SPI.
