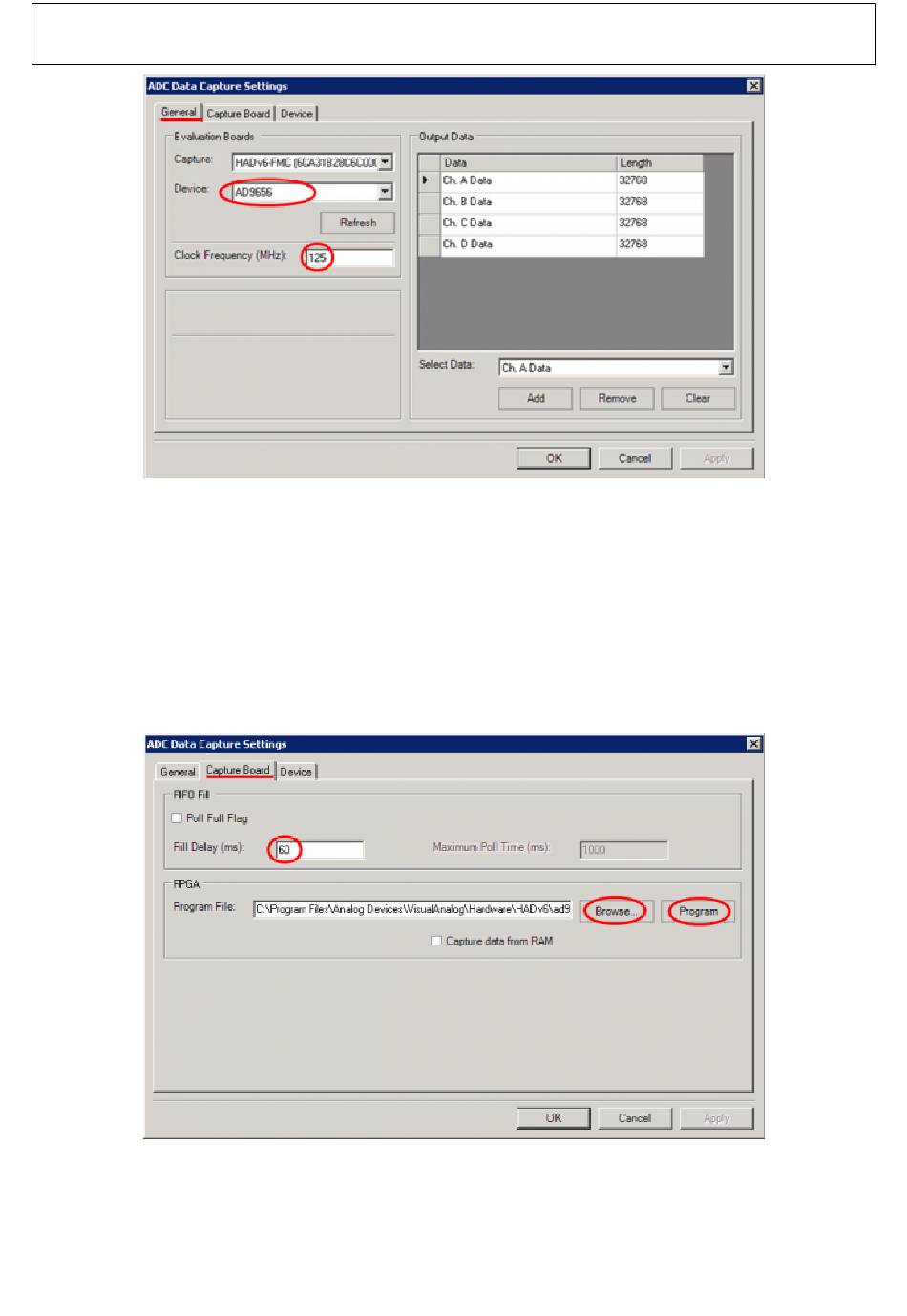

Figure 8. VisualAnalog ADC Data Capture Settings Window, General Tab
6. In the ADC Data Capture Settings Window, Capture Board Tab, enter 60 in the Fill Delay field. Push
the Browse button to navigate to the FPGA program file for the AD9656. The default installation
location and filename will be similar to: C:\Program Files\Analog
Devices\VisualAnalog\Hardware\HADv6\AD9656_hadv6fmc.mcs
Push the program button.
Figure 9. VisualAnalog ADC Data Capture Settings Window, Capture Board Tab
7. In the ADC Data Capture Settings Window, Device Tab, check the Enable Data Capture Controls
