User's Guide
M/E-PSW-FX-01, MP/E-PSW-FX-01
& MU/E-PSW-FX-01

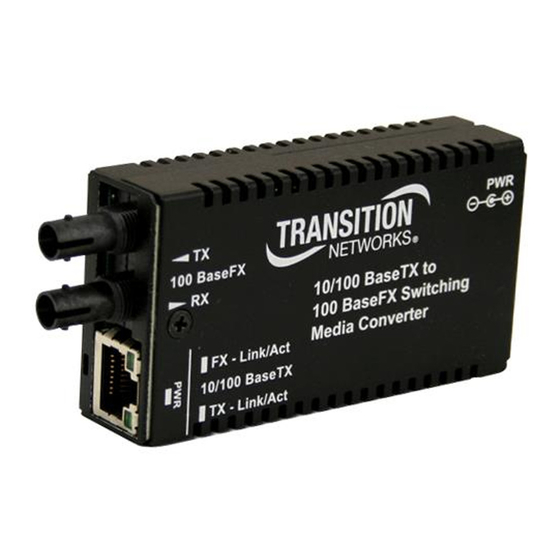

Stand-Alone Media Converters
• Copper to Fiber
• 10/100Base-TX to 100Base-FX
The miniature, plug-and-play operation Mx/E-PSW-
FX-01 2-port Ethernet/Fast Ethernet bridging media
converters allow connecting 10Base-T Ethernet and/or 100Base-TX Fast Ethernet
twisted-pair copper network devices to network devices on a 100Base-FX Fast Ethernet
fiber network. Depending on the media converter, the end user has the choice of three
options for powering the converters: power adapter (shipped with converter), USB, or
"802.3af™ Power over Ethernet" (PoE) enabled device.
M/E-PSW-FX-01: Auto-Negotiation, AutoCross, Far End Fault (FEF)
Part Number
Copper - Port
10Base-T/100Base-TX
M/E-PSW-FX-01 (ST)
RJ-45
100 m (328 ft)*
M/E-PSW-FX-01 (SC)
RJ-45
100 m (328 ft)*
M/E-PSW-FX-01 (SM) RJ-45
100 m (328 ft)*
Single-Strand Fiber Models
M/E-PSW-FX-01 (100) RJ-45
100 m (328 ft)*
M/E-PSW-FX-01 (101) RJ-45
100 m (328 ft)*
MP/E-PSW-FX-01: PoE PD, Auto-Negotiation, AutoCross, Link-Pass Through,
Far End Fault
Part Number
Copper - Port
10Base-T/100Base-TX
MP/E-PSW-FX-01 (ST) RJ-45
100 m (328 ft)*
MP/E-PSW-FX-01 (SC) RJ-45
100 m (328 ft)*
MP/E-PSW-FX-01(SM) RJ-45
100 m (328 ft)*
Fiber-Optic -Port
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310TX/1550RX nm. single
mode, 20 km (12.4 miles)*
SC, 1550TX/1310RX nm single
mode, 20 km (12.4 miles)*
Fiber-Optic -Port
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . .10
Technical Specifications . . . . . . .12
Troubleshooting . . . . . . . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
Advertisement
Table of Contents
Related Manuals for Transition Networks M/E-PSW-FX-01SC
Summary of Contents for Transition Networks M/E-PSW-FX-01SC
- Page 1 User’s Guide M/E-PSW-FX-01, MP/E-PSW-FX-01 & MU/E-PSW-FX-01 Stand-Alone Media Converters • Copper to Fiber • 10/100Base-TX to 100Base-FX The miniature, plug-and-play operation Mx/E-PSW- FX-01 2-port Ethernet/Fast Ethernet bridging media converters allow connecting 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX Fast Ethernet fiber network.
-
Page 2: Installation
Locate or build IEEE 803.2™ compliant 100Base-FX fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cable to the Mx/E-PSW-FX-01 media converters as follows: • Connect the male TX cable connector to the female TX port. -
Page 3: Connect The Twisted-Pair Copper Cable
Mx/E-PSW-FX-01 Installation -- Continued Connect the twisted-pair copper cable The AutoCross feature allows either MDI (straight-through) or MDI-X (crossover) cable connections to be configured automatically, according to network conditions. • If half-duplex mode is used, refer to the 512-Bit Rule. •... -
Page 4: Power Adapter
Operation -- Continued Product features Congestion reduction The Mx/E-PSW-FX-01 media converters do not forward collision signals or error packets from one collision domain to another, resulting in improvements in baseline network performance. In addition, the media converter filters packets destined for local devices, which reduces network congestion also. -
Page 5: Automatic Link Restoration
Fast Ethernet collision domain: In a half-duplex Ethernet or Fast Ethernet environment, the Mx/E-PSW-FX-01 media converters extend network distances by segmenting collision domains so that the 512-Bit Rule applies separately to each collision domain. In a full-duplex Ethernet or Fast Ethernet environment, the Mx/E-PSW-FX-01 media converters extend network distances to the physical cable limitations imposed by the selected twisted-pair copper fiber cables. -
Page 6: Cable Specifications
Mx/E-PSW-FX-01 Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber cable Bit Error Rate: <10-9 single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm M/E-PSW-FX-01 M/E-PSW-FX-01 (SC) 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm... -
Page 7: Technical Specifications
Mx/E-PSW-FX-01 Technical Specifications For use with Transition Networks Model Mx/E-PSW-FX-01 converters. Standards: IEEE 802.3™, IEEE 802.3af™ Data rate: 10 Mb/s, 100 Mb/s Dimensions: 1.8"W x 3.35"D x 0.85"H (45.7 x 85.1 x 21.6 mm) Weight: 3.2 oz. (90.7 g) approximately Power consumption: 2.6 watts MTBF*:... -
Page 8: Compliance Information
Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours) Declaration of Conformity Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: Mx/E-PSW-FX-01 Series Media Converters Part Number(s): M/E-PSW-FX-01, M/E-PSW-FX-01(10x) MP/E-PSW-FX-01, MU/E-PSW-FX-01, MU/E-PSW-FX-01(10x) Regulation: EMC Directive 89/336/EEC Purpose: To declare that the Mx/E-PSW-FX-01 and the Mx/E-PSW-FX-01(10x) to which this declaration refers is in conformity with the following standards. - Page 9 Mx/E-PSW-FX-01 Compliance -- Continued In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
