Transition Networks M/GE-PSW-SX-01 User Manual

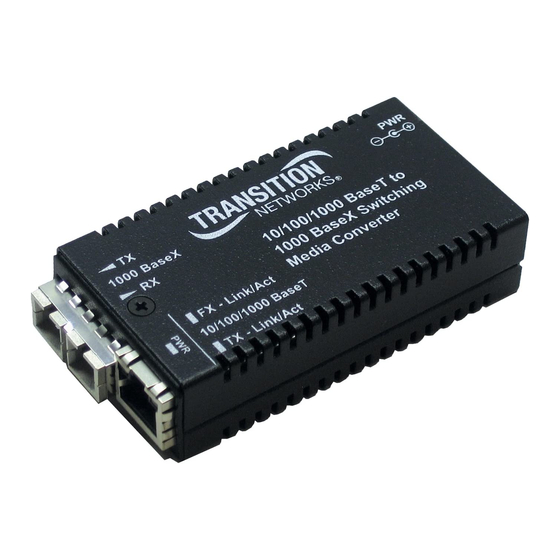

Standalone mini media converters
Hide thumbs Also See for M/GE-PSW-SX-01:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
M/GE-PSW-SX-01, M/GE-PSW-LX-01,
and M/GE-PSW-SX-01(ST)
Standalone Mini Media Converters
•
Unit and Port LEDs allow for quick
status information
•
Auto-Negotiation
•
Fixed Full-Duplex on fiber
•
Auto-MDI/MDIX
•
Active Link Pass Through
•
Automatic Link Restoration
Contents
Introduction .................................................................................................................................................. 1
Model Numbers ............................................................................................................................................ 2
Options (sold separately) .............................................................................................................................. 2
Applications................................................................................................................................................... 3
Package Contents .......................................................................................................................................... 3
Installation .................................................................................................................................................... 4
Electrostatic Discharge (ESD) .................................................................................................................... 4
Copper and Fiber Ports ............................................................................................................................. 4
Connect the Fiber Cable ........................................................................................................................... 4
Connect the Twisted-pair Copper Cable ................................................................................................... 5
Power up the Media Converter ................................................................................................................ 5
Operation ...................................................................................................................................................... 6
Status LEDs ............................................................................................................................................... 6
Features .................................................................................................................................................... 6
Cable Specifications .................................................................................................................................. 9
Technical Specifications .............................................................................................................................. 11
Troubleshooting .......................................................................................................................................... 12
For More Information ................................................................................................................................. 12
Contact Us ................................................................................................................................................... 13
Compliance Information ............................................................................................................................. 13
Declaration of Conformity ...................................................................................................................... 13
CE Mark ................................................................................................................................................... 14
Record of Revisions ..................................................................................................................................... 15

Introduction

The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost
effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed
configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where
space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to
fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-
SX/LX fiber.
33398 Rev. D
•
•
•
https://www.transition.com/
Connect Legacy
Networking Equipment: Connect an existing
10/100 Mbps device to 1000 Mbps devices.
Jumbo Frame (up to 10,240 Bytes)
USB Power Option, requires the use of a
USB to DC barrel connector cable (USBC-
AM-DC)
Page 1 of 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M/GE-PSW-SX-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks M/GE-PSW-SX-01

Summary of Contents for Transition Networks M/GE-PSW-SX-01

  • Page 1: Table Of Contents

    User Guide M/GE-PSW-SX-01, M/GE-PSW-LX-01, and M/GE-PSW-SX-01(ST) Standalone Mini Media Converters • Connect Legacy • Unit and Port LEDs allow for quick Networking Equipment: Connect an existing status information 10/100 Mbps device to 1000 Mbps devices. • Auto-Negotiation • Jumbo Frame (up to 10,240 Bytes) •...

  • Page 2: Model Numbers

    Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Model Numbers Note: Long Haul single mode and Single Strand single mode are available upon request. Model 10/100/1000Base-T (RJ-45) [100 m/328 ft.] to 1000Base-SX 850nm M/GE-PSW-SX-01(ST) multimode (ST) [62.5/125 µm fiber: 220 m/722 ft.] Link Budget: 7.0 dB [50/125 µm fiber: 550 m/1804 ft.]* Link Budget: 7.0 dB...

  • Page 3: Applications

    Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Applications Connect legacy networking equipment: connect an existing 10/100 Mbps device to 1000 Mbps devices. Package Contents Make sure you have received the items below. Contact your sales representative if any items are missing. Save the packaging for possible future use.

  • Page 4: Installation

    ESD protection. Copper and Fiber Ports The figure below shows the front panel of the M/GE-PSW-SX-01 media converter. Connect the Fiber Cable Full duplex (always ON) is on the fiber side only; therefore, the 512-Bit Rule does not apply. The cable lengths are constrained by the cable requirement.

  • Page 5: Connect The Twisted-Pair Copper Cable

    1. Locate or build IEEE 803.2™ compliant 10/100/1000Base-T cables with RJ-45 connectors installed at both ends. 2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the M/GE-PSW-SX-01 media converter. 3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device switch, workstation, etc.

  • Page 6: Operation

    Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Operation Status LEDs Use the status LEDs to monitor the status of the media converter. LED states are as follows: Fiber-Link/Act LED: Green = Link (fiber) Flashing = Activity TP-Link/Act LED: Green = Link (copper)
  • Page 7 Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Active Link Pass-Through (ALPT) Link Pass-Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal. With the loss of RX signal on one media port, the converter will automatically disable the TX signal of the other media port, thus “passing through”...
  • Page 8 Transition Networks, Inc. M/GE-PSW-xX-01 User Guide ™ AutoCross The AutoCross feature allows using either straight-through (MDI) or crossover (MDI-X) copper cables when connecting to 10Base-T or 100Base-TX devices. AutoCross determines the characteristics of the connection and automatically configures the device to link up, regardless of the copper cable configuration, MDI or MDI-X.

  • Page 9: Cable Specifications

    Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Rate conversion The M/GE-PSW-xX-01 media converters allow the following connections: • 10Mb/s devices on a 10Base-T legacy copper network to 1000Mb/s devices on a 1000Base SX/LX Gigabit Ethernet fiber network. • 100Mb/s devices on a 100Base-T legacy copper network to 1000Mb/s devices on a 1000Base SX/LX Gigabit Ethernet fiber network.
  • Page 10 Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Copper cable Categories 5 and 5e: minimum requirement Gauge 24 to 22 AWG Attenuation 22.0 dB /100m @ 100 MHz Maximum Cable Distance 100 meters • Straight-through or crossover twisted-pair cable may be used.

  • Page 11: Technical Specifications

    Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Technical Specifications For Transition Networks M/GE-PSW-SX-01 or equivalent: Standards IEEE 802.3 Data rate 10 Mb/s, 100 Mbps, 1000 Mbps Dimensions 1.8"W x 3.35"D x 0.85"H (45.7 x 85.1 x 21.6 mm) 3.15 oz. (127.5 g) approximately Weight Shipping Weight 2 lbs.

  • Page 12: Troubleshooting

    WMBS, WMBL, WMBP, & WMBM Wall-Mount Brackets Install Guide (33393) • Release Notes (firmware version specific) For Transition Networks Drivers, Firmware, etc. go to the Product Support webpage at https://www.transition.com/support/product-support/ (registration / logon required). For Transition Networks Manuals, Brochures, Data Sheets, Specifications, etc. go to https://www.transition.com/support/library/...

  • Page 13: Contact Us

    Transition Networks, Inc. M/GE-PSW-xX-01 User Guide Contact Us Technical Support: Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Address Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A.

  • Page 14: Ce Mark

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.

  • Page 15: Record Of Revisions

    Trademark Notice : All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions : © 2010-2021 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
