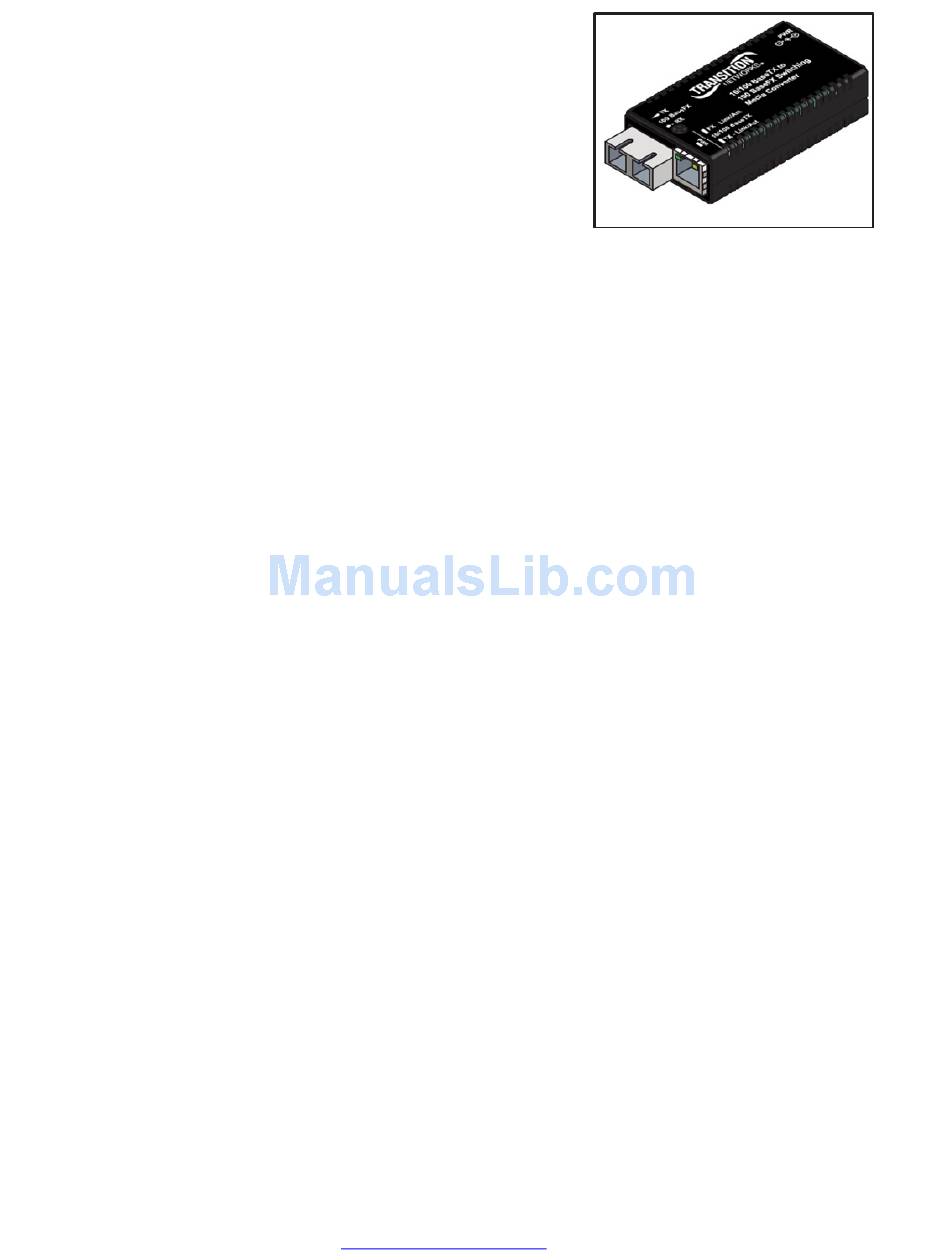

User Guide
M/E-PSW-FX-02
Stand-Alone Media Converters
• Copper to Fiber
• 10/100Base-TX to 100Base-FX
Contents
Introduction.................................................................................................................................................... 1
Models / Part Numbers ................................................................................................................................. 2
Installation ..................................................................................................................................................... 3
Copper and fiber ports .............................................................................................................................. 3
Electrostatic Discharge (ESD) ................................................................................................................... 3
Connect the fiber cable ............................................................................................................................. 3
Connect the twisted-pair copper cable ..................................................................................................... 4
Powering the media converter ................................................................................................................... 4
Power adapter............................................................................................................................................ 5
Operation....................................................................................................................................................... 5
Status LEDs .............................................................................................................................................. 5
Product Features ...................................................................................................................................... 5
Optic and Cable Specifications ..................................................................................................................... 7
Technical Specifications ................................................................................................................................ 9
Troubleshooting .......................................................................................................................................... 10
Contact Us................................................................................................................................................... 10
Compliance Information .............................................................................................................................. 11
Declaration of Conformity ....................................................................................................................... 11
Record of Revisions .................................................................................................................................... 12
Introduction
The miniature, plug-and-play operation Ethernet/Fast Ethernet bridging media converter allows
connecting 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-pair copper network devices to
network devices on a 100Base-FX Fast Ethernet fiber network.
33487 Rev. C
http://www.transition.com/
Page 1 of 12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks M/E-PSW-FX-02
Summary of Contents for Transition Networks M/E-PSW-FX-02
-
Page 1: Table Of Contents
User Guide M/E-PSW-FX-02 Stand-Alone Media Converters • Copper to Fiber • 10/100Base-TX to 100Base-FX Contents Introduction..............................1 Models / Part Numbers ..........................2 Installation ..............................3 Copper and fiber ports ..........................3 Electrostatic Discharge (ESD) ........................3 Connect the fiber cable ..........................3 Connect the twisted-pair copper cable ..................... -
Page 2: Models / Part Numbers
Transition Networks ME-PSW-FX-02 User Guide Models / Part Numbers 33487 Rev. C http://www.transition.com/ Page 2 of 12... -
Page 3: Installation

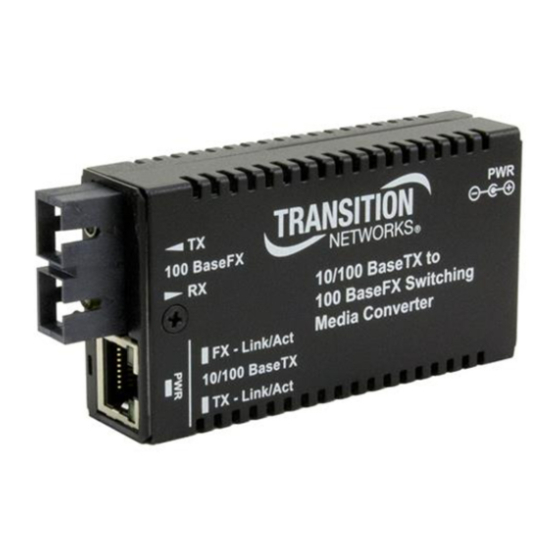

The illustration below shows the front panel of the M/E-PSW-FX-02 media converters. Electrostatic Discharge (ESD) Always observe the following ESD precautions when installing or handing the M/E-PSW-FX-02 media converter: Do not remove the converter from its protective packaging until you are ready to install it. -
Page 4: Connect The Twisted-Pair Copper Cable
Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (switch, workstation, etc.). Powering the media converter The power options for the M/E-PSW-FX-02 media converter are product dependent. The following shows the various power configurations associated with each model. M/E-PSW-FX-02 Back Panel Power 33487 Rev. -
Page 5: Power Adapter
Product Features Congestion reduction The M/E-PSW-FX-02 media converters do not forward collision signals or error packets from one collision domain to another, resulting in improvements in baseline network performance. In addition, the media converter filters packets destined for local devices, which reduces network congestion. -
Page 6: Flow Control
In a full-duplex network, maximum cable lengths are determined by the type of cables used. See front cover for M/E-PSW-FX-02 cable specifications. The 512-Bit Rule does not apply in a full-duplex network. Note: Full duplex is ON permanently for the fiber port only. -
Page 7: Optic And Cable Specifications
Transition Networks ME-PSW-FX-02 User Guide Far-End Fault When a fault occurs on an incoming fiber link (1), the media converter transmits a Far-End Fault signal on the outgoing fiber link (2). In addition the Far-End Fault signal also activates the Link Pass-Through, which in turn, disables the link on the copper portion of the network (3) and (4). - Page 8 Transition Networks ME-PSW-FX-02 User Guide 33487 Rev. C http://www.transition.com/ Page 8 of 12...
-
Page 9: Technical Specifications
Transition Networks ME-PSW-FX-02 User Guide Technical Specifications For current information view the online user guide at www.transition.com. * MTBF (Mean Time Between Failure) is estimated using the predictability method. The computation is based on the MIL-HDBK-217 F and Bellcore standards.. -
Page 10: Troubleshooting
Technical support Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Transition now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-based seminars Transition Networks provides seminars via live web-based training. -
Page 11: Compliance Information
Transition Networks ME-PSW-FX-02 User Guide Compliance Information Declaration of Conformity FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 12: Record Of Revisions
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
