Installing DIN Rail Clip

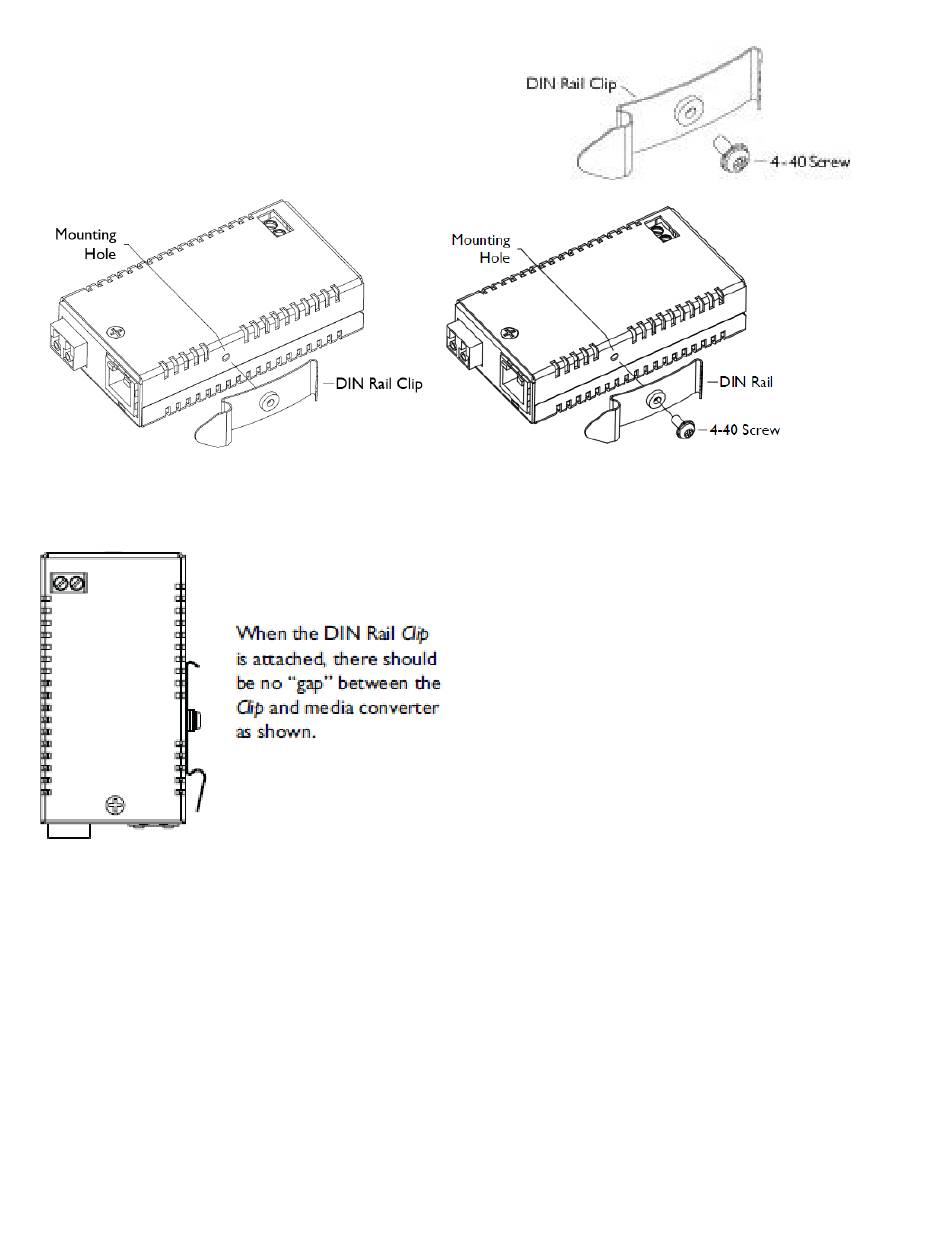

To install the DIN rail onto the media converter (parts are
shown right):
1. Position the DIN rail clamp to the side of the media
converter as shown below.
2. Position the 4-40 screw to attach the DIN rail to the media converter as shown above left.
3. Insert and tighten the 4-40 screw until the DIN rail clip appears as shown above right. When the DIN Rail Clip is
attached, there should be no gap between the Clip and the media converter as shown below.
