User Guide
M/GE-ISW-SFP-01-PD
Hardened Mini PD Media Converter
• 1G Mini with IEEE 802.3af
• IEEE 802.3af PD power input from the RJ-45 TP interface
• Fully compliant with the IEEE 802.3af standard
• Class 1 - Very low power device, 3.84W
• Same form factor as all other Transition Networks Mini devices
• Industrial temperature rating of -40 to +75 degrees C
• Fixed configuration, no DIP switch or jumper configuration needed
• Auto-Cross, Auto-Negotiation, and Active Link Pass-Through
Contents
Introduction.................................................................................................................................................... 1
Product Numbers .......................................................................................................................................... 2
Connectors and LEDs ................................................................................................................................... 2
Application Example ...................................................................................................................................... 3
Package Contents ......................................................................................................................................... 3
Installation ..................................................................................................................................................... 4
Electrostatic Discharge (ESD) Precautions .............................................................................................. 4
Installation Options ................................................................................................................................... 4
Connect Fiber Cables ............................................................................................................................... 6
Connect the Twisted-Pair Copper Cable .................................................................................................. 6
Operation....................................................................................................................................................... 6
Status LEDs .............................................................................................................................................. 6
Fiber Port Mode at Power Up ................................................................................................................... 7
Product Features ...................................................................................................................................... 7
Cable and Optic Specifications ................................................................................................................. 9
Technical Specifications .............................................................................................................................. 11
PoE Standards and Power Classifications .................................................................................................. 12
Troubleshooting .......................................................................................................................................... 13
Contact Us................................................................................................................................................... 14
Compliance Information .............................................................................................................................. 15
Declaration of Conformity ....................................................................................................................... 15
Record of Revisions .................................................................................................................................... 16
Introduction

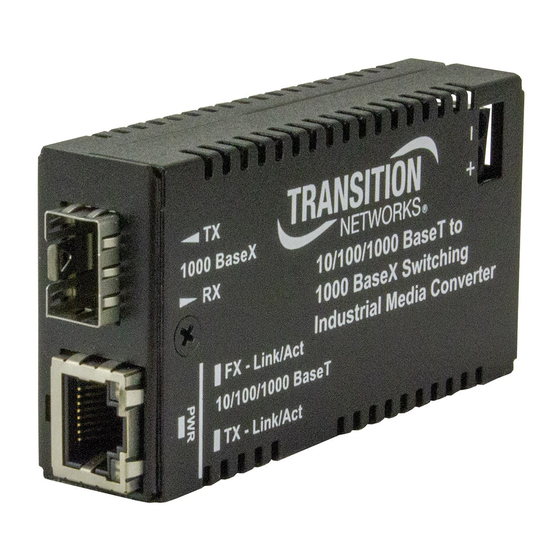

Transition Networks' M/GE-ISW-SFP-01-PD is a PoE Powered Device (PD) media converter, with one
10/100/1000Base-T copper port and one 1000Base-X SFP fiber port, in Mini form factor. An addition to
the Transition Networks Mini product line, it has the same physical size metal enclosure as existing Minis.
It supports Auto-Negotiation and Auto Cross, and uses a fixed configuration, with no DIP switches. It is
powered through the RJ-45 copper port when connected to Power Sourcing Equipment (PSE) device, so
no separate power connection is needed.
The copper port supports 10/100/1000Base-T and the fiber port supports an open SFP slot. It is an
Extended Temperature Enterprise grade product supporting an operating temperature of -40 ̊ C to + 75 ̊ C.
LEDs indicate the status of the copper and fiber port.
33668 Rev. A
http://www.transition.com/
Page 1 of 16
Advertisement
Table of Contents
Related Manuals for Transition Networks M/GE-ISW-SFP-01-PD
Summary of Contents for Transition Networks M/GE-ISW-SFP-01-PD
-
Page 1: Table Of Contents
10/100/1000Base-T copper port and one 1000Base-X SFP fiber port, in Mini form factor. An addition to the Transition Networks Mini product line, it has the same physical size metal enclosure as existing Minis. It supports Auto-Negotiation and Auto Cross, and uses a fixed configuration, with no DIP switches. It is powered through the RJ-45 copper port when connected to Power Sourcing Equipment (PSE) device, so no separate power connection is needed. -
Page 2: Product Numbers
Product Numbers Product Number Description M/GE-ISW-SFP-01-PD PoE Powered Device (PD) Hardened Mini Media Converter A wide operating temperature SFP is required. Transition Networks has a SFPs wide range of MSA compliant SFPs and XFPs. See the Transition Networks SFP webpage for details. -
Page 3: Application Example
Transition Networks M/GE-ISW-SFP-01-PD User Guide Application Example The M/GE-ISW-SFP-01-PD is used to operate/maintain a network with data transmit rates to 1G using Transition Networks products as shown below. Package Contents Check that your package contains the following items. Contact your point of purchase if anything is missing. -
Page 4: Installation
SFP-01-PD media converter. • Wear an ESD wrist grounding strap before handling the M/GE-ISW-SFP-01-PD media converter or any of these component. If you do not have a wrist strap, maintain grounded contact with the unit throughout any procedure requiring ESD protection. - Page 5 Transition Networks M/GE-ISW-SFP-01-PD User Guide Installing DIN Rail Clip A DIN Rail Clip and a 4-40 Screw are included. To install the DIN Rail onto the media converter: 1. Position the DIN Rail Clip to the side of the media converter as shown below.
-
Page 6: Connect Fiber Cables
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (switch, workstation, etc.). Operation Status LEDs Use the status LEDs to monitor M/GE-ISW-SFP-01-PD operation in the network. PWR: Power status: On = power is on Off = power is off... -
Page 7: Fiber Port Mode At Power Up
Congestion Reduction The M/GE-ISW-SFP-01-PD media converters do not forward collision signals or error packets from one collision domain to another, resulting in improvements in baseline network performance. In addition, the media converter filters packets destined for local devices, which reduces network congestion. - Page 8 Automatic Link Restoration The media converter will automatically re-establish the link when connected to switches if the link is lost. Distance Extension The M/GE-ISW-SFP-01-PD media converters can segment one Ethernet and/or Fast Ethernet and one fiber Fast Ethernet collision domain: •...
-
Page 9: Cable And Optic Specifications
Transition Networks M/GE-ISW-SFP-01-PD User Guide Cable and Optic Specifications The fiber optic cable physical characteristics must meet or exceed IEEE 802.3ae specification. Fiber Cable Bit Error Rate: <10-9 9 μm Single mode fiber (recommended): 62.5/125 μm Multimode fiber (recommended): 100/140, 85/140, 50/125 μm... - Page 10 Transition Networks M/GE-ISW-SFP-01-PD User Guide 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T/1000BASE-TX (Gigabit Ethernet) and 10GBASE- T (10-Gigabit Ethernet). Category 6 cable has a reduced maximum length when used for 10GBASE-T. Like most of the earlier twisted-pair cables, Category 6 cable contains four twisted wire pairs. Attenuation, Near End crosstalk (NEXT), and PSNEXT (Power Sum NEXT) in Cat 6 cable and connectors are all much lower than Cat 5 or Cat 5e, which uses 24 AWG wire.
-
Page 11: Technical Specifications
• Unbundle or more loosely bundle the horizontal cabling; and • Reconfigure the cross-connect as an interconnect. Technical Specifications The Transition Networks M/GE-ISW-SFP-01-PD was designed to meet these specifications. Standards Compliance IEEE 802.3-2012 Regulatory Compliance for Emission EN55022 Class A... -
Page 12: Poe Standards And Power Classifications
Transition Networks M/GE-ISW-SFP-01-PD User Guide PoE Standards and Power Classifications The original IEEE 802.3af-2003 PoE standard provides up to 15.4 W of DC power (minimum 44 V DC and 350 mA) to each device. The updated IEEE 802.3at-2009 PoE standard also known as PoE+ or PoE plus, provides up to 25.5 W of power. -
Page 13: Troubleshooting
Transition Networks M/GE-ISW-SFP-01-PD User Guide Troubleshooting If the media converter fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: Is the PWR (power on) LED lit? • Is the RJ-45 wired to an IEEE 802.3af or 802.3at PSE product powered and enabled? •... -
Page 14: Contact Us
Technical support Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Transition now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-based seminars Transition Networks provides seminars via live web-based training. -
Page 15: Compliance Information
Transition Networks M/GE-ISW-SFP-01-PD User Guide Compliance Information Declaration of Conformity FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 16: Record Of Revisions
All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions © 2015-16 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
