Summary of Contents for Transition Networks M/GE-PSW-PSE-01

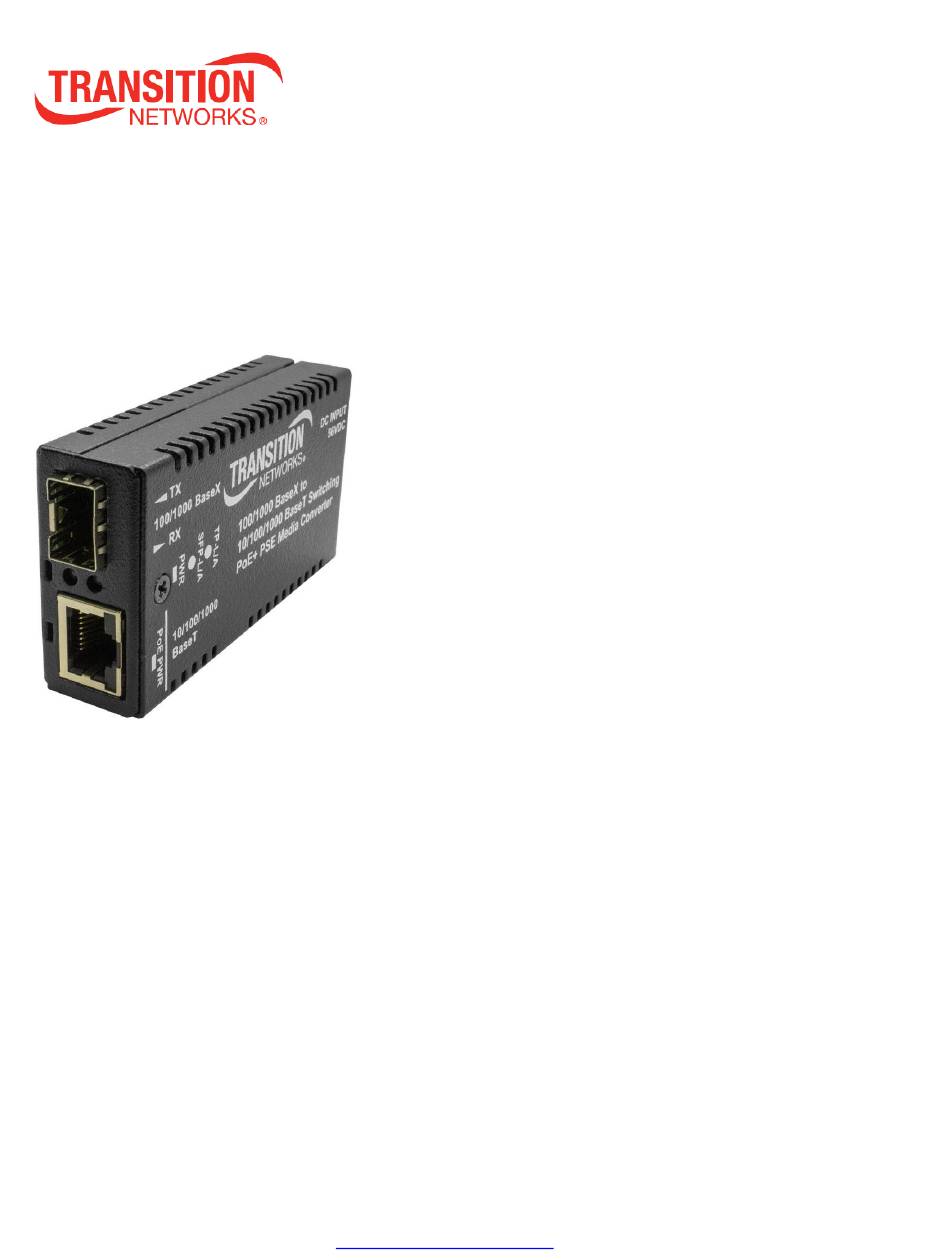

- Page 1 Transition Networks M/GE-PSW-PSE-01 User Guide M/GE-PSW-PSE-01 Mini Fast / Gigabit Ethernet PoE+ Media Converter (1) 10/100/1000Base-T PoE+ RJ-45 Port + (1) 100/1000Base-X SFP Slot User Guide 33830 Rev. B 33830 Rev. B https://www.transition.com Page 1 of 16...
-
Page 2: Cautions And Warnings
Trademarks : All trademarks and registered trademarks are the property of their respective owners. Copyright Notice/Restrictions : Copyright © 2021 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks. -
Page 3: Table Of Contents
Contact Us ................................... 16 Introduction The Transition Networks M/GE-PSW-PSE-01 Gigabit Ethernet Stand-alone Mini Media Converter provides cost effective media conversion between 10/100/1000Base-T ports and 100/1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. -
Page 4: Ordering Information
Power Supply included: to order the corresponding country specific power supply, add the extension below to the end of the SKU. For example: M/GE-PSW-PSE-01-NA = North America, -LA = Latin America, -EU = Europe, -UK = United Kingdom, -SA = South Africa, -JP = Japan, -OZ = Australia, and -BR = Brazil. -
Page 5: Auto Power Reset
Transition Networks M/GE-PSW-PSE-01 User Guide Auto Power Reset The Automatic Power Reset (APR) feature is enabled after the device has been powered for one minute and the ALPT feature is enabled. When both of these conditions are met, whenever the fiber link goes down due to the fiber partner link status or the ALPT forwarded copper link partner status. -
Page 6: Specifications And Standards
EN55032-2012 Class A, IEC 61850-3:2002, Certifications EN55024-2010, CE Mark, Power Supply is UL listed The M/GE-PSW-PSE-01 is an 802.3at device; it will only provide power on one pair. Highlighted in yellow below is the M/GE-PSW-PSE-01 pinout. PSE Pinout Alternatives: Conductor... -
Page 7: Installation
Transition Networks M/GE-PSW-PSE-01 User Guide Installation Warning: Do not attempt to open the enclosure or service the power supply. Opening the enclosure may cause serious injury or death. There are no user replaceable or serviceable part in thus device. Installation Overview Mount the Media Converter in its final location;... -
Page 8: Operation
Transition Networks M/GE-PSW-PSE-01 User Guide Operation Status LEDs When the module has been installed and configured, verify the converter is operational by viewing the LEDs. The Power LED indicates the module is receiving power. The Fiber status LED indicates the fiber optic connection has been established. -
Page 9: Led Descriptions
Transition Networks M/GE-PSW-PSE-01 User Guide LED Descriptions Description Top LED - TP Status: • Green = Gigabit • Amber = 100 or 10 speeds. • Off = no link Two-up Bi-Color LEDs • There is no indication for duplex Bottom LED - Fiber Status: •... -
Page 10: Compliance Information
Transition Networks M/GE-PSW-PSE-01 User Guide Compliance Information Declaration of Conformity Product Views 33830 Rev. B https://www.transition.com Page 10 of 16... - Page 11 Transition Networks M/GE-PSW-PSE-01 User Guide 33830 Rev. B https://www.transition.com Page 11 of 16...
-
Page 12: Power Supply
Transition Networks M/GE-PSW-PSE-01 User Guide Power Supply The M/GE-PSW-PSE-01 uses Power Supply 25173. 25173 Commercial Power Supply The 25173 AC/DC desktop power supply offer 40 watts of output power with an IEC-320-C8 AC inlet. The 25173 has a rated input voltage of 100-240VAC, and is designed to meet Energy Star Ver. - Page 13 Transition Networks M/GE-PSW-PSE-01 User Guide Output Specifications Unit of Specification Min. Typ. Max. Measure Output Voltage Regulation 53.2 58.8 Line Regulation ± 1 Dynamic Load Regulation ± 5 Voltage Tolerance ± 5 Output Power Output Current 0.71 Ripple and Noise...
- Page 14 Transition Networks M/GE-PSW-PSE-01 User Guide General Specifications Unit of Specification Min. Typ. Max. Measure Efficiency ≥ 87.59 ≥ 50 MΩ Leakage Current ≥ 500 Voltage Isolation: DC ground may be separated from AC neutral and AC line. Insulation Test: Between primary and secondary circuit: 500VDC, 2 Sec.
-
Page 15: 25173 Mechanical Drawing
Transition Networks M/GE-PSW-PSE-01 User Guide 25173 Mechanical Drawing 33830 Rev. B https://www.transition.com Page 15 of 16... -
Page 16: Troubleshooting
7. Record device information (see below) 8. Contact Transition Networks Technical Support (see below). Problem: The Auto Power Reset feature only works once after cold boot; subsequent tries to get the feature to power-cycle a PD fail to cut the PD's power.
