Transition Networks M/E-PSW-FX-02(SC) User Manual

Transition Networks M/E-PSW-FX-02(SC) User Manual

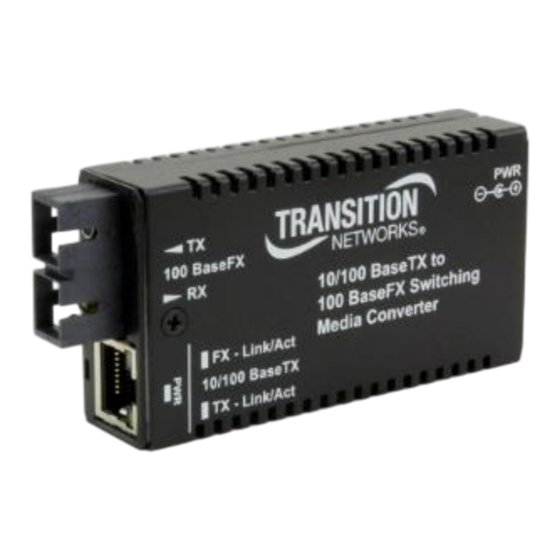

Stand-alone media converter

Advertisement

Quick Links

User Guide

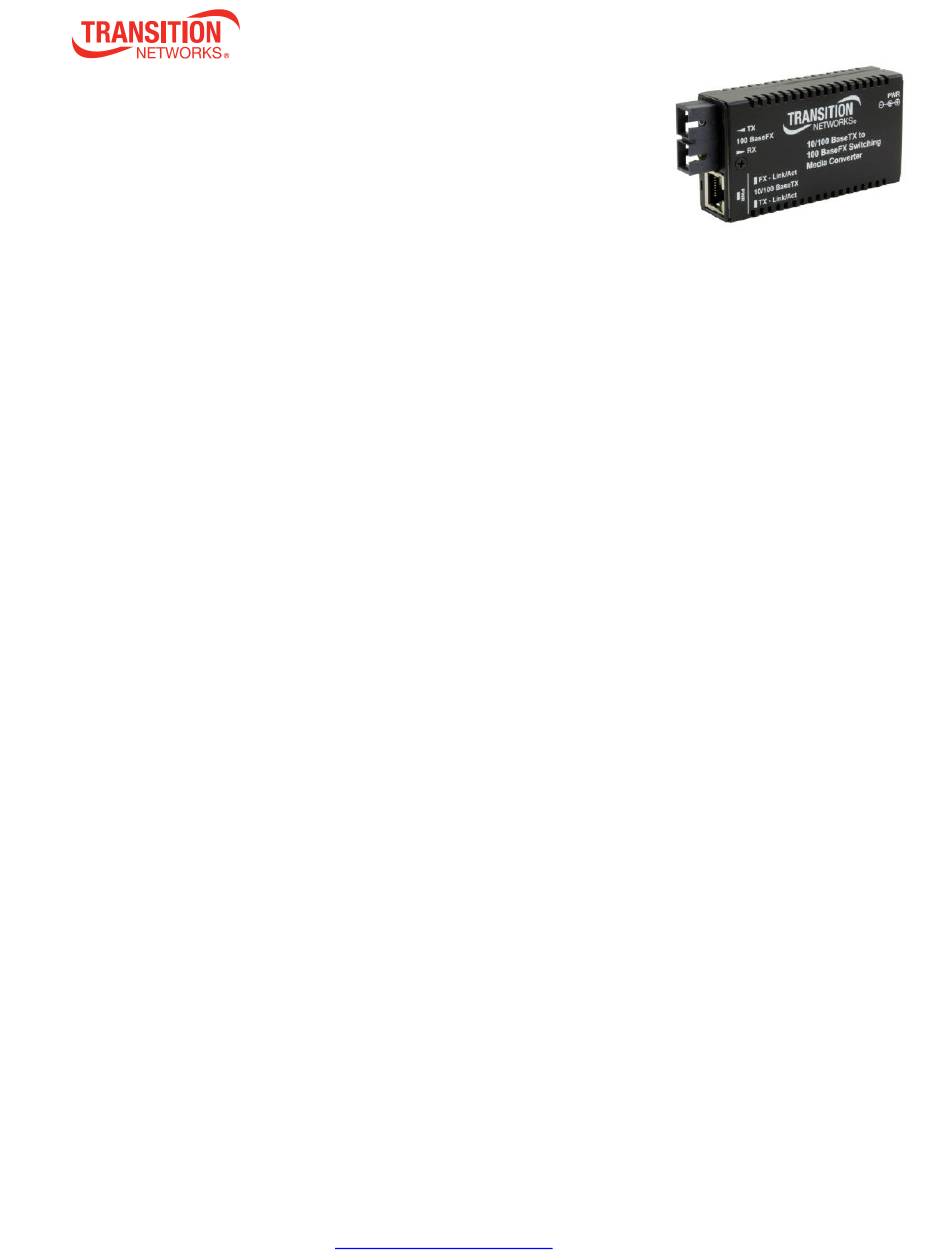

M/E-PSW-FX-02
Stand-Alone Media Converters
• Copper to Fiber
• 10/100Base-TX to
100Base-FX
• Unit and Port LEDs allow
for quick status
information
Contents
Introduction .................................................................................................................................................. 1
Ordering Information .................................................................................................................................... 2
Power Supply Included ............................................................................................................................. 2
Installation .................................................................................................................................................... 3
Copper and Fiber Ports ............................................................................................................................. 3
Electrostatic Discharge (ESD) ..................................................................................................................... 3
Connect the Fiber Cable ............................................................................................................................ 3
Connect the Twisted-pair Copper Cable ................................................................................................... 4
Powering the Media Converter ................................................................................................................. 4
Power Adapter ........................................................................................................................................... 5
Operation ...................................................................................................................................................... 5
Status LEDs ............................................................................................................................................... 5
Product Features ...................................................................................................................................... 5
Optic and Cable Specifications ...................................................................................................................... 8
Fiber Optic Specs ...................................................................................................................................... 8
Copper Cable Specs .................................................................................................................................. 8
Technical Specifications ................................................................................................................................ 9
Troubleshooting .......................................................................................................................................... 10
Contact Us ................................................................................................................................................... 10
Compliance Information ............................................................................................................................. 11
Declaration of Conformity ...................................................................................................................... 11
Record of Revisions ..................................................................................................................................... 12

Introduction

The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective
media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration,
deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited.
Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides
rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
33487 Rev. D
• Auto-Negotiation
• Fixed Full-Duplex on fiber
• Auto-MDI/MDIX
• Automatic Link
Restoration
• Far-End-Fault (FEF)
http://www.transition.com/
• Connect to legacy network
equipment
• Eliminate Collision
Domains
Page 1 of 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M/E-PSW-FX-02(SC) and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks M/E-PSW-FX-02(SC)

  • Page 1: Table Of Contents

    User Guide M/E-PSW-FX-02 Stand-Alone Media Converters • Copper to Fiber • Auto-Negotiation • 10/100Base-TX to • Fixed Full-Duplex on fiber 100Base-FX • Auto-MDI/MDIX • Connect to legacy network • Unit and Port LEDs allow • Automatic Link equipment for quick status •...
  • Page 2: Ordering Information

    Transition Networks M/E-PSW-FX-02 User Guide Ordering Information Description 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode M/E-PSW-FX-02 (ST) [2 km/1.2 mi.] Link Budget: 11.0 dB 10/100Base-TX (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode M/E-PSW-FX-02(SC) (SC) [2 km/1.2 mi.] Link Budget: 11.0 dB 10/100Base-TX (RJ-45) [100 m/328 ft.]...
  • Page 3: Installation

    Transition Networks ME-PSW-FX-02 User Guide Installation Copper and Fiber Ports The illustration below shows the front panel of the M/E-PSW-FX-02 media converters. Electrostatic Discharge (ESD) Always observe the following ESD precautions when installing or handing the M/E-PSW-FX-02 Do not remove the converter from its protective packaging until you are ready to install it.
  • Page 4: Connect The Twisted-Pair Copper Cable

    Transition Networks M/E-PSW-FX-02 User Guide Connect the Twisted-pair Copper Cable The AutoCross feature allows either MDI (straight-through) or MDI-X (crossover) cable connections to be configured automatically, according to network conditions. If half-duplex mode is used, refer to the 512-Bit Rule.
  • Page 5: Power Adapter

    Verify that the media converter is powered up by observing the illuminated LED power indicator light on the front panel. DC Power See the Transition Networks SPS-1872-SA DC User Guide for the external power supply for powering the media converter. Operation Status LEDs Use the status LEDs to monitor the media converter operation in the network.
  • Page 6 Transition Networks M/E-PSW-FX-02 User Guide AutoCross™ The AutoCross feature allows using either straight-through (MDI) or crossover (MDI-X) copper cables when connecting to 10Base-T or 100Base-TX devices. AutoCross determines the characteristics of the connection and automatically configures the device to link up, regardless of the copper cable configuration, MDI or MDI-X.
  • Page 7 Transition Networks ME-PSW-FX-02 User Guide Far-End Fault When a fault occurs on an incoming fiber link (1), the media converter transmits a Far-End Fault signal on the outgoing fiber link (2). In addition the Far-End Fault signal also activates the Link Pass-Through, which in turn, disables the link on the copper portion of the network (3) and (4).
  • Page 8: Optic And Cable Specifications

    Transition Networks M/E-PSW-FX-02 User Guide Optic and Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Optic Specs Bit Error Rate: <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm...
  • Page 9: Technical Specifications

    Transition Networks ME-PSW-FX-02 User Guide Technical Specifications The information in this user guide is subject to change. For the most current information, view the online user guide online at https://www.transition.com. Standards IEEE 802.3 Data rate 10 Mbps, 100 Mbps Max Frame Size 1632 bytes (tagged or untagged;...
  • Page 10: Troubleshooting

    Transition Networks M/E-PSW-FX-02 User Guide Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions, and then taking the indicated action: Is the power LED illuminated and did the TX and FX LEDs turn ON and then turn OFF? Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? •...
  • Page 11: Compliance Information

    Transition Networks ME-PSW-FX-02 User Guide Compliance Information Declaration of Conformity FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 12: Record Of Revisions

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.

This manual is also suitable for:

M/e-psw-fx-02M/e-psw-fx-02(sm)
