Spectrum Digital, Inc
To support selection of the proper I/O voltage, the target header has a Target Voltage
Detect (TVD) signal. This signal (pin 5) should be tied to the I/O voltage of the target
processor.
If the target system needs to supports multiple I/O voltages on the scan string, the
lowest voltage devices should be placed first.
A translation buffer should be used to connect the rest of the scan string. TCK, TMS,
and TRST must have similar considerations.
Two copies of each signal may be required with each driving a different voltage level.
3-6
In
In
.01 uF
Op-Amp
Level
Translator
27Ω
Out
27Ω
Out
27Ω
Out
27Ω
Out
27Ω
Out
27Ω
Out
100 100 100
Comparator
KΩ
KΩ KΩ
In1
In2
In3
In4

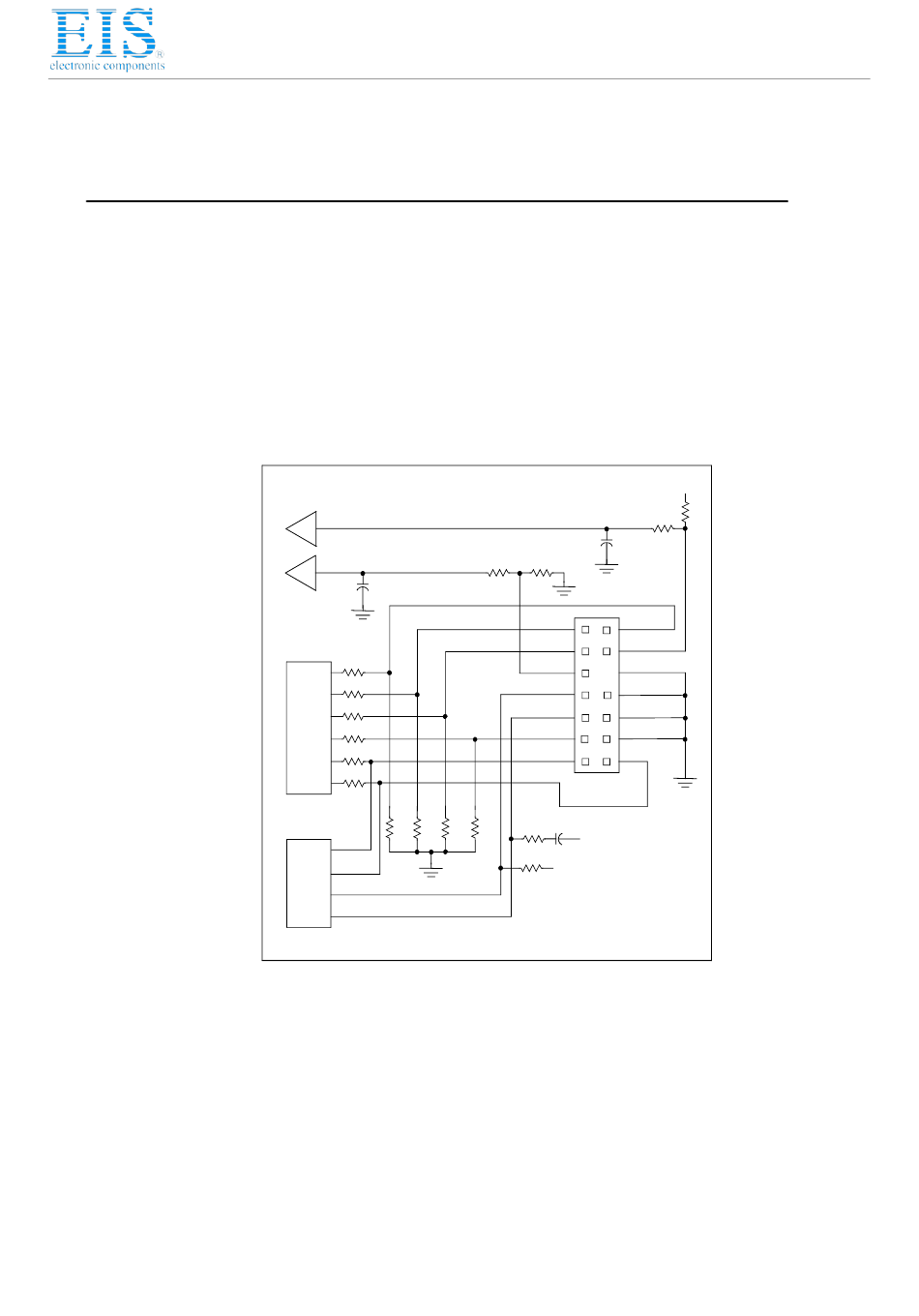

Figure 3-3, Emulator Pod Interface
.01 uF
10 KΩ 100 KΩ
TMS 1 2 TRST
TDI 3 4 TDIS
TVD 5
6 GND
TDO 7 8 GND
10 GND
TCKR 9
TCK 11 12 GND
EMU0 13 14 EMU1
Emulation
Header
100
100Ω
KΩ
TVD Voltage /2
100 pF
TVD Voltage
100
KΩ
XDS560R JTAG Emulator Installation Guide
VCC
100 KΩ
10 KΩ
