2.4 XDS560R LEDs
The XDS560R has five (5) Light Emitting Diodes (LEDs). These LEDs provide
the user with the status of the emulator. The position of each LED is shown in the
diagram below.
The meaning of the LED is described in the table below.
PWR LED - When illuminated emulator +5V is on
LED 3 - Indicates that emulation application is active
LED 2,1 - USB traffic status
LED 0 - A slow flash indicates the USB cable is disconnected
A fast flash indicates the USB cable is connected and the emulation
operating system is running.
On power up LEDs 1-3 will sequence to indicate the emulator is in boot load mode and
ready for an emulation session. Once the emulation sequence begins LEDs 1-3 show
the status described in the table above.
LEDs

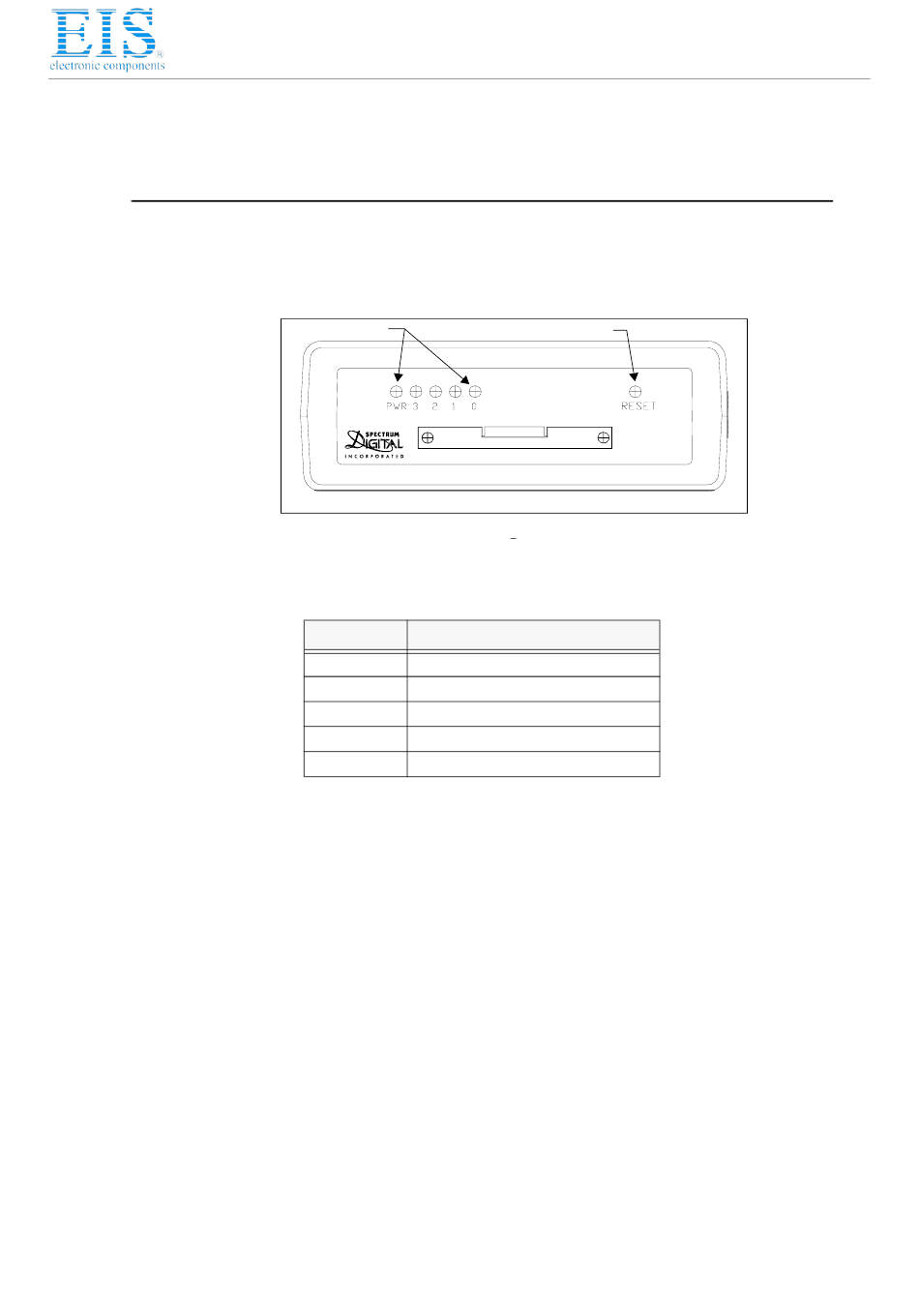

Figure 2-4, XDS560R Front Panel
Table 1: XDS560R LEDs
LED Name
PWR
Emulator power indicator
3
EMU application is active
2
USB Traffic -1
1
USB Traffic -0
0
USB Cable connected/Heartbeat
Spectrum Digital, Inc
Reset Switch
Function
2-7
