Series 2600B System SourceMeter® instrument User's Manual
8. Display indicators (not shown)
The items listed below represent the possible display indicators and their meanings.
Indicator
4W
AUTO
EDIT
ERR
FILT
LSTN
REL
REM
SRQ
TALK
* (asterisk)
Rear panel
The rear panels of the 2600B is shown below. The descriptions of the rear-panel components follow
the figures.
2600BS-900-01 Rev. A / August 2021
Meaning
Remote (4-wire) sense is selected
Source or measure autorange is selected
Instrument is in editing mode
Questionable reading or invalid calibration step
Digital filter is enabled
Instrument is addressed to listen
Relative mode is enabled
Instrument is in remote mode
Service request is asserted
Instrument is addressed to talk
Readings are being stored in the buffer

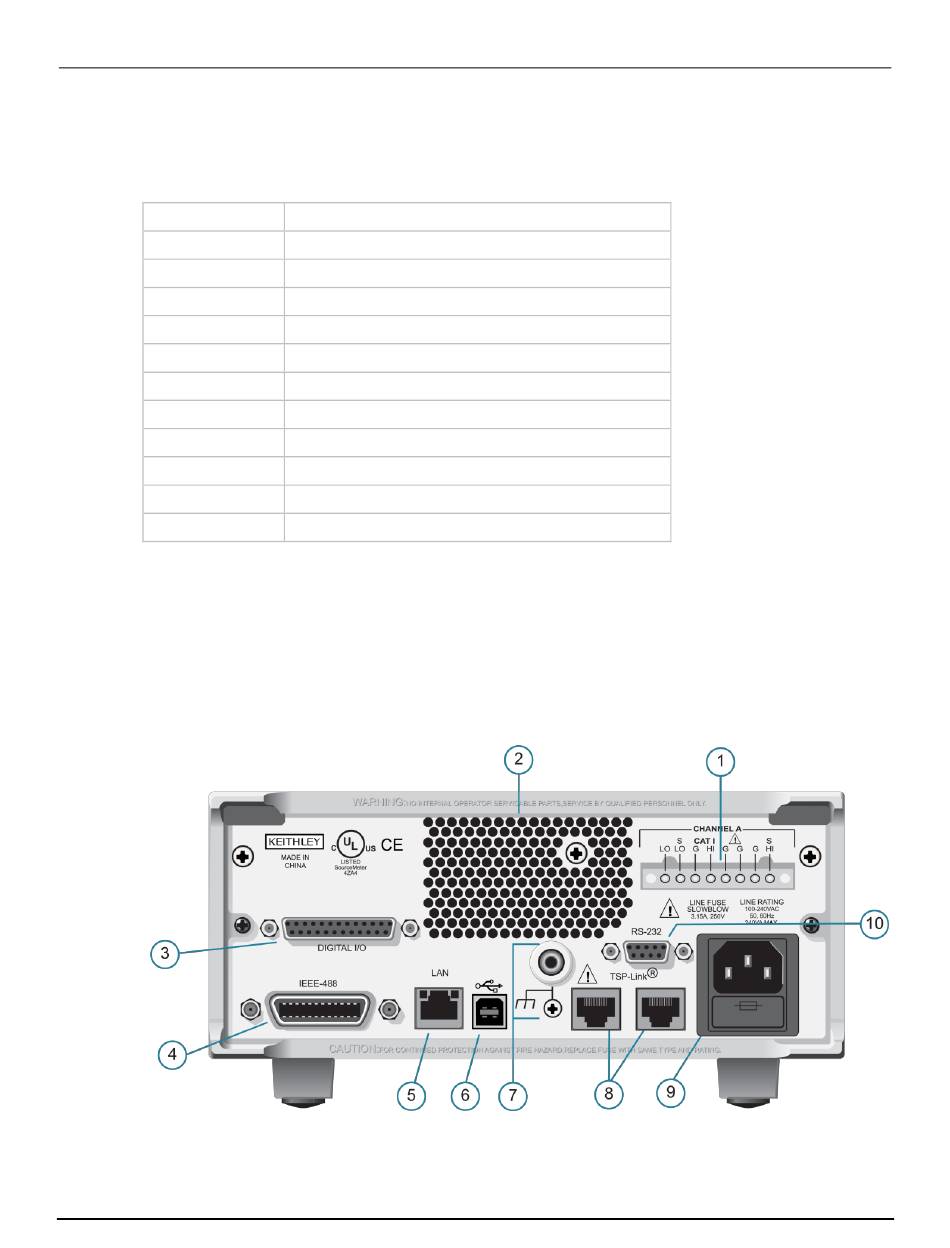

Figure 3: 2601B and 2611B rear panel
Section 3: Instrument description
3-5
