Series 2600B System SourceMeter® instrument User's Manual

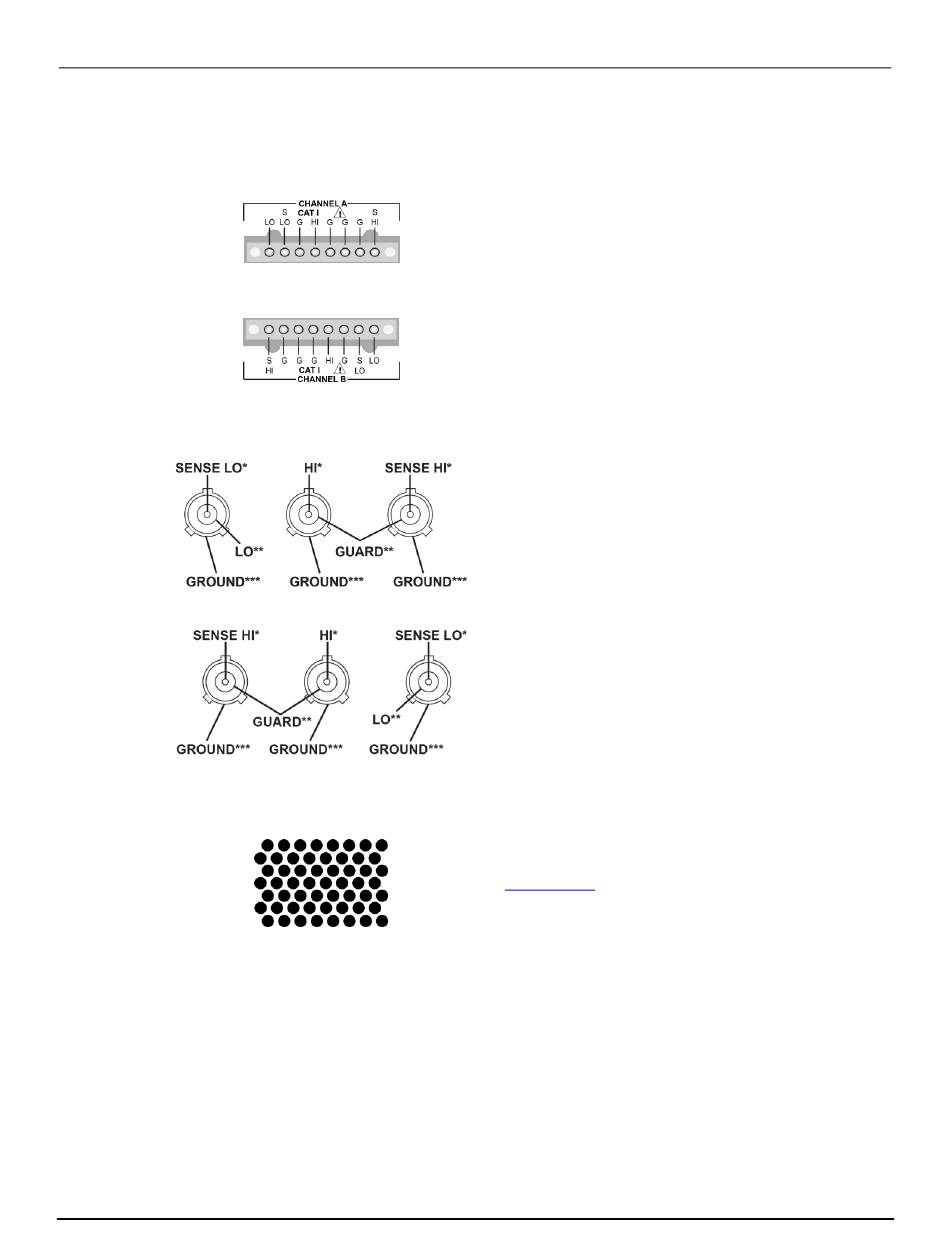

1. SMU connector
Channel A
2601B, 2602B, 2604B, 2611B, 2612B, 2614B
Channel B
2602B, 2604B, 2612B, 2614B
Channel A
2634B, 2635B, 2636B
Channel B
2634B, 2636B
2. Cooling exhaust vents
2600BS-900-01 Rev. A / August 2021
Section 3: Instrument description
This connector provides input/output connections for HI
and LO, sense (S HI/S LO), and guard (G). Connections
are as follows:
LO = LO
S LO = Sense LO
G = Guard
S HI = Sense HI
HI = HI
These triaxial connectors provide input/output
connections for HI and LO, sense HI and sense LO,
guard, and ground. See connections at left. The
connector conductors are as follows:
* Center conductor
** Inner shield
*** Outer shield
Exhaust vent for the internal cooling fan. Keep the vent
free of obstructions to prevent overheating. Also see
Cooling vents (on page 2-1).
3-9
