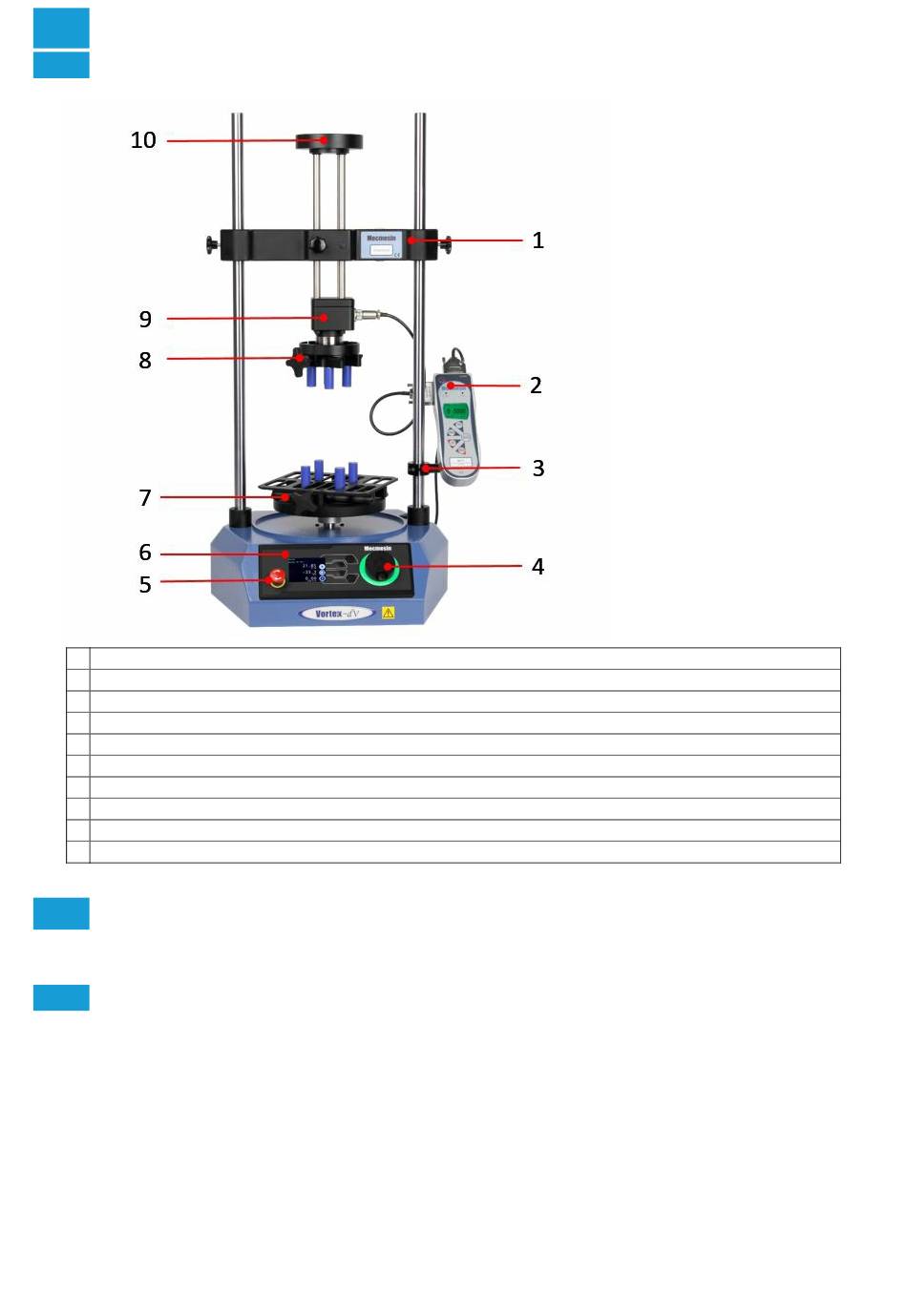

System Diagram

3.0.1
1 1
Adjustable crosshead
2 2
AFTI (Advanced Force / Torque Indicator)
3 3
AFTI Mounting bracket
4 4
Multi-function scroll wheel
5 5
Emergency stop button
6 6
Front panel control
7 7
Lower fixing plate. (optional) Shown with saddle plate
8 8
Upper fixing plate (optional)
9 9
Static torque transducer
10
10 Top load tray (height adjustable)
3.1
Identifying the Model of Vortex- dV
The Vortex- dV has been through minimal design changes from it's inception. However, please see the sections
below to assist in clearly identifying the exact model.
3.1.1
Mark 1
Vortex- dV Mark 1 machines are the original motorised torque stands developed for use with the AFTI digital
force/torque indicator. These are controlled by VectorPro Lite functionality (as well as the stand-alone operation).
These stands were produced up to April 2020 and will have formatted serial numbers up to 20-XXXX-04.
These are identified by the rear panel shown below:
20-XXXX-04.
7
