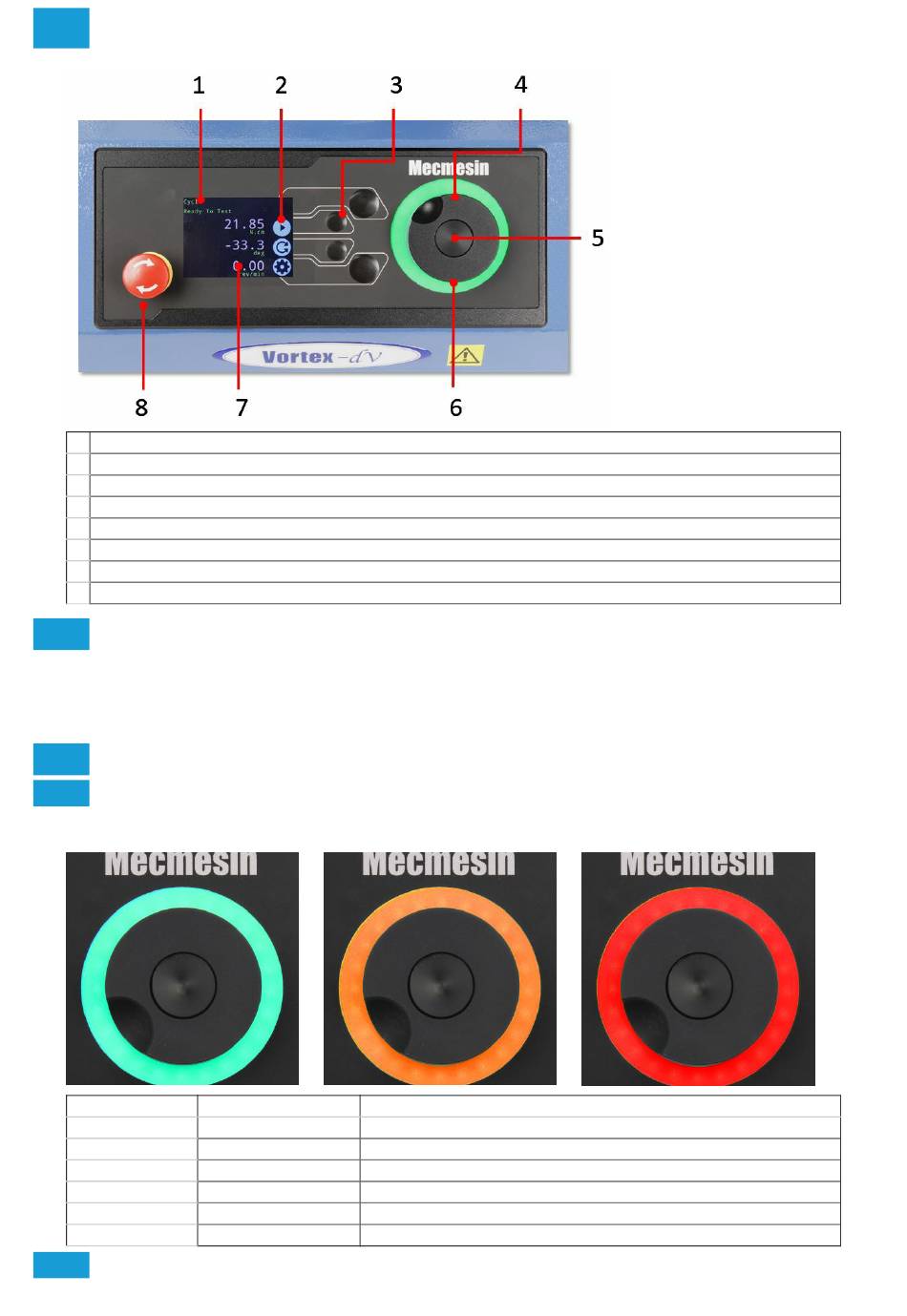

Front Panel Controls

1 1
Status messages and information
2 2
Button function icons
3 3
Multi-function selection buttons
4 4
Multi-function scroll wheel
5 5
Scroll wheel button (used in function menus)
6 6
LED dial status ring
7 7
Colour display
8 8
Emergency Stop button
6.1
Emergency Stop Button
Push to stop the crosshead movement. Rotate the button to release it and resume crosshead control. If pressed
during a test, do
not restart a test, ensure you remove any residual force using the test stand's jog controls.
6.2
Multi-function Scroll Wheel Control
6.2.1
Scroll Wheel Colours
The lights surrounding the wheel illuminate in three colours, indicating the status of the test stand:
Colour
Colour
Status
Status
Green
Green
Pulsating
Green
Green
Rotating
Green
Green
Flashing
Amber
Amber
Static
Amber
Amber
Rotating
Red
Red
Static
6.2.2
Jog Mode
When in jog mode the wheel drives the Vortex- dV clockwise or anticlockwise, matching the direction the wheel is
Indication
Indication
Ready to start a test
Scrolling through menus
Test completed
In jog mode menu
Lower spindle moving
Test aborted/limit triggered
21
