Note: Take care when handling lower capacity torque transducers, as damage can occur from Note:
mishandling.
It is also essential to ensure that the attached grips and fixtures cannot cause excess leverage on the
torque transducer or exhibit excessive axial load on the transducer.
5.6

Fitting the AFTI Torque Indicator

The AFTI can be fitted to either the left or right-hand of the test stand, but it is important to ensure that the cable
coming from the transducer points to the side that the gauge is mounted, as this prevents any unnecessary
kinking.

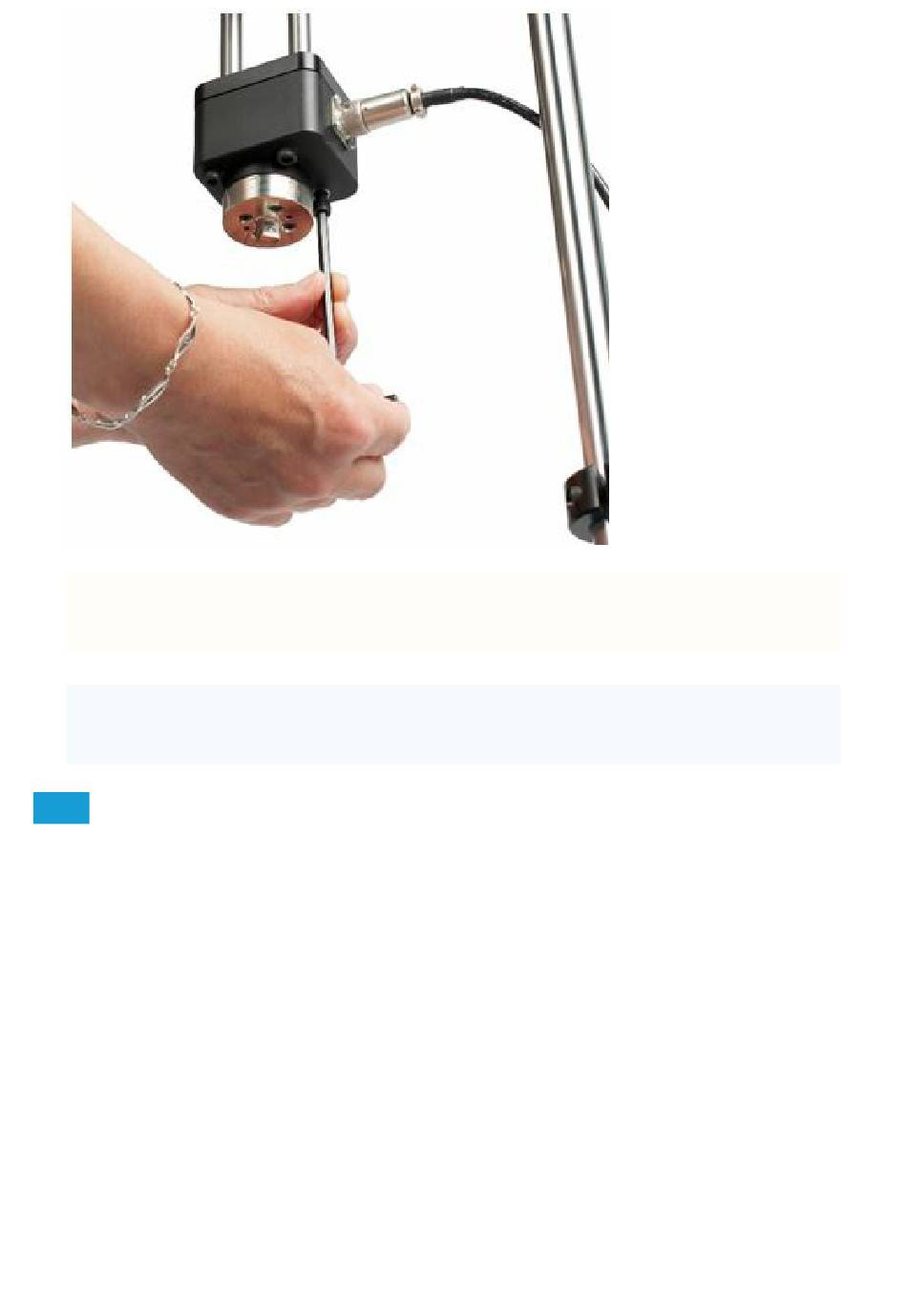

The fixing bracket can be easily fitted, adjusted or removed and transferred to the opposite column using a 4 mm
Hex key to loosen the retention screws.
