Error detection and problem solutions

7.1

LEDs

The valve interface is provided with 6 LEDs at the front of the device which inform about the status of the
device and about errors related to the hardware which must be eliminated locally under normal circumstanc-
es.
Channel 1

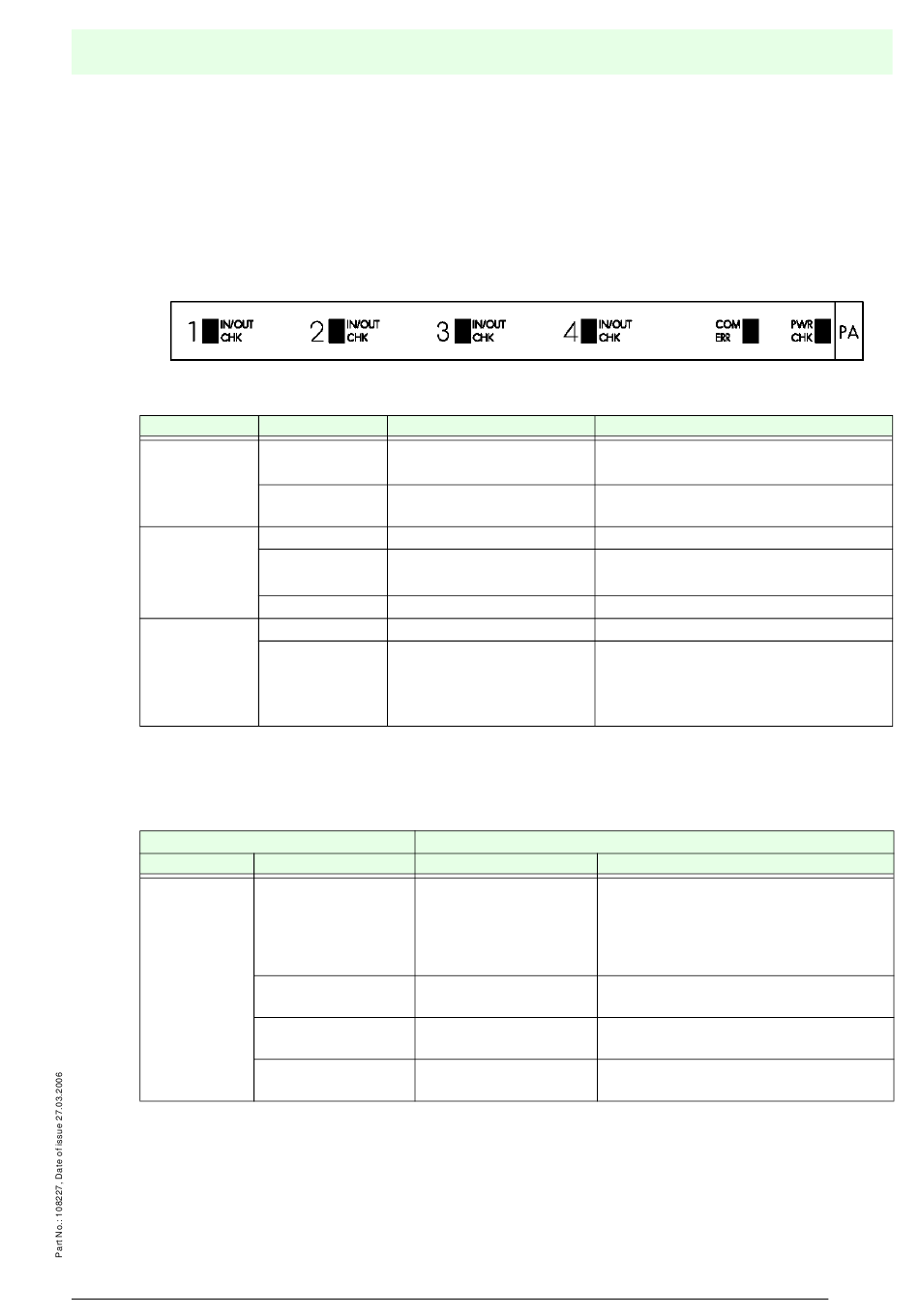

Figure 7.1: LEDs at device
LED
1
PWR CHK
COM ERR
IN/OUT CHK
(Channel 1...4)
1
Attention: The light intensity is low for reasons of power saving.
7.2

Resource block

Parameter
BLOCK_ERR Lost Static Data
Subject to reasonable modifications due to technical advances.
Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com
Channel 2
States
OFF No power supply.
Permanently Power supply available,
green device is ready to operate.
OFF No communication errors.
Flashing red No bus activity or bus error. • Check wiring.
Permanently red Hardware error.
OFF No errors detected.
Flashing red Lead breakage or short cir-
cuit of PFC or valve lead.
Problem
Message
Device Maintenance Hardware error.
Simulation
OOS
Fieldbus Valve Coupler FD0-VC-Ex4.FF
Error detection and problem solutions
Channel 3 Channel 4
Cause
Elimination of error
Cause
The parameterisation
data stored in the
device were faulty and
replaced by the default
settings.
Simulation allowed by
setting the switch 1.
The target mode of the
block is OOS.
Elimination
• Check power supply.
• Check wiring of F
OUNDATION
• Check LAS.
Send device to manufacturer.
• Inform about exact error in device, re-
fer to diagnosis messages.
• Check PFC and valve line of affected
channel.
Elimination
Repeat parameterisation. If this error
occurs repeatedly, send the device to
Pepperl+Fuchs for repair.
Send device to Pepperl+Fuchs for
repair.
Check whether simulation shall be
allowed.
Set block to "Auto" mode.
