5.4.3

Connection of auxiliary valves and final position feedback contacts

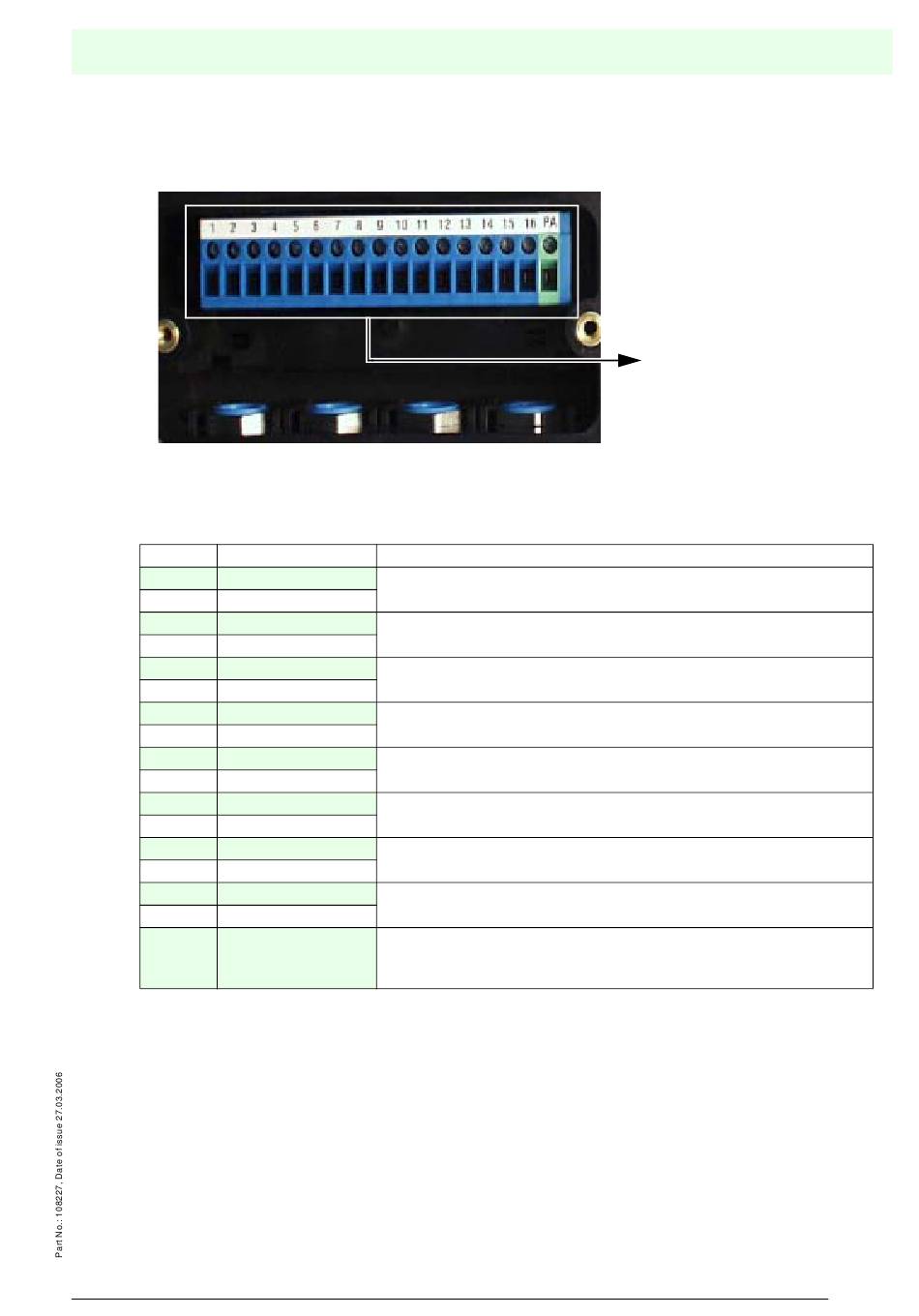

The following illustration shows the location and designation of the terminals for valve connection and PFCs.
Figure 5.4: Location and designation of the connector terminals for the valve connection incl. final position feedback contacts
Terminal assignment
Terminal
1 Valve 1 +
2 Valve 1 –
3 PFC 1A +, PFC 1B –
4 PFC 1A –, PFC 1B +
5 Valve 2 +
6 Valve 2 –
7 PFC 2A +, PFC 2B –
8 PFC 2A –, PFC 2B +
9 Valve 3 +
10 Valve 3 –
11 PFC 3A +, PFC 3B –
12 PFC 3A –, PFC 3B +
13 Valve 4 +
14 Valve 4 –
15 PFC 4A +, PFC 4B –
16 PFC 4A –, PFC 4B +
Equipotential bon-
PA
ding
As described in section 4.2.4, the PFCs are used in the 2:1 procedure. For the connection of sensors or
mechanical contacts the possible connections are shown in figure 5.5; terminals 3 and 4 are given as
examples.
Subject to reasonable modifications due to technical advances.
Pepperl+Fuchs Group • Tel.: Germany +49 621 776-0 • USA +1 330 4253555 • Singapore +65 67799091 • Internet http://www.pepperl-fuchs.com
Signal
Output, trigger signal for valve 1
2 inputs, signals of 2 PFCs from valve 1, transfer by 2:1 procedure
Output, trigger signal for valve 2
2 inputs, signals of 2 PFCs from valve 2, transfer by 2:1 procedure
Output, trigger signal for valve 3
2 inputs, signals of 2 PFCs from valve 3, transfer by 2:1 procedure
Output, trigger signal for valve 4
2 inputs, signals of 2 PFCs from valve 4, transfer by 2:1 procedure
Connection for equipotential bonding and/or connection for the
screen between the valve coupler and valve and PFC. Preferably no
screened cable should be used here
Fieldbus Valve Coupler FD0-VC-Ex4.FF
Connector terminals for the
valves and final position sensors
Explanation
