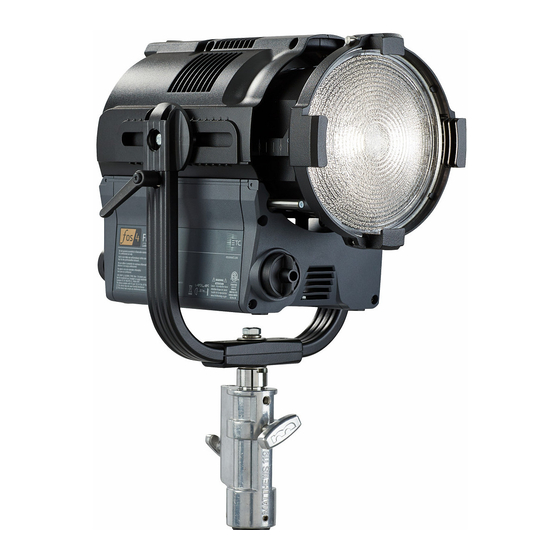

fos/4 Fresnel
User Manual
Version 1.1.1
Part Number: 7470M1200-1.1.1 Rev: B
Released: 2021-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the fos/4 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ETC fos/4 Series

  • Page 1 fos/4 Fresnel User Manual Version 1.1.1 Part Number: 7470M1200-1.1.1 Rev: B Released: 2021-05...
  • Page 2 To view a list of ETC trademarks and patents, go to etcconnect.com/ip. All other trademarks, both marked and not marked, are the property of their respective owners. ETC intends this document, whether printed or electronic, to be provided in its entirety.
  • Page 3: Table Of Contents

    Table of Contents Introduction Help from ETC Technical Services Safety Overview Fixture User Interface Set Up and Focus the Fixture Mount the Fixture Add Accessories Connect Power and Data Focus the Fixture Use Fixture in DMX Mode Set DMX Address Set DMX Mode Set DMX Loss Behavior Use Fixture in Stand-alone Mode...
  • Page 4 Control and Customize the Display Lock the Display Adjust the Display Settings Troubleshooting and Maintenance Troubleshooting Checklist Test the Emitters View Diagnostic Data View Battery Level Export Fixture Data for Troubleshooting Restore Default Settings Update Firmware Backup and Restore the Fixture Configuration Clean the Lens Specifications and Reference Environment...
  • Page 5: Introduction

    Introduction The fos/4 Fresnel is a shapable wash light with top quality, highly tunable output. The fos/4 Fresnel is available in two arrays: Lustr X8: The next generation of the Lustr color system incorporates deep red into the • already amazing x7 mix to create an even more rich, vibrant X8 color palette. Daylight HDR: Years of research resulted in an LED mix that yields the highest quality •...
  • Page 6: Help From Etc Technical Services

    Help from ETC Technical Services If you are having difficulties and your problem is not addressed by this document, try the ETC support website at support.etcconnect.com or the main ETC website at etcconnect.com. If none of these resources are sufficient, contact ETC Technical Services directly at one of the offices identified below.
  • Page 7: Safety

    WARNING: RISK OF ELECTRIC SHOCK! The light source in this luminaire is not user-replaceable, and must be replaced only by a qualified technician. Contact ETC Customer Support for assistance. AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source lumineuse de ce projecteur n'est pas remplaçable par l'utilisateur et ne doit être remplacée seulement par un technicien qualifié.
  • Page 8 AVERTISSEMENT : Prendre connaissance des avertissements de sécurité suivants avant toute utilisation : Débranchez le projecteur de son alimentation et du DMX et laissez-le • refroidir avant d’installer des accessoires ou d’effectuer un nettoyage ou un entretien. N’utilisez que de la quincaillerie de montage adaptée au poids total •...
  • Page 9: Overview

    Overview Fixture Accessory holder: Insert accessories into the two available slots from either side of the holder, and then lock the holder. See Add Accessories on page 7 Cable tie: Store power cable on the yoke. Yoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the position.
  • Page 10: User Interface

    User Interface Effects Max Int 100% Effect Flicker Rate Display: The colors of options on the display correspond to the colors of the encoders below the display ( E ) and the Intensity encoder to the right of the display ( B ). Intensity encoder: When in DMX mode, press the Intensity encoder to enter Focus mode when focusing the •...
  • Page 11: Set Up And Focus The Fixture

    Set Up and Focus the Fixture WARNING: Note the following safety warnings before use: Only use mounting hardware that is rated for the total weight of the • fixture and accessories. In addition to primary suspension, attach a safety cable (or other •...
  • Page 12: Connect Power And Data

    Maximum fixture output may be reduced when the fixture is connected to battery power. Focus the Fixture 1. Apply power to the fixture, and wait until the fixture has booted up (the ETC splash screen displays during boot up). 2. Press any encoder to "wake" the display.
  • Page 13: Use Fixture In Dmx Mode

    Use Fixture in DMX Mode After you connect power and data to the fixture and provide DMX, press the Function button ( repeatedly to toggle to the DMX screen, where you can set the DMX address, DMX mode, and DMX loss behavior. (You can also set these values using RDM.) The DMX screen displays the current DMX values.
  • Page 14: Set Dmx Address

    DMX Control Channels Parameter DMX Value Description Comments 3200 K 1–165 1900–6000 K CCT values increase by 25 for each DMX value (1 = 1900 K, 2 = 1925 K, etc.). 166–254 6050–10,450 K CCT values increase by 50 for each DMX value (166 = 6050 K, 167 = 6100 K, etc.). 5600 K fos/4 Fresnel User Manual...
  • Page 15 Parameter DMX Value Description Comments Curve 0–9 Incandescent 10–19 Linear 20–29 Incandescent Red Shift In Direct Mode, the fixture uses Incandescent instead of Incandescent Red Shift. 30–39 Linear Red Shift In Direct Mode, the fixture uses Linear instead of Linear Red Shift.
  • Page 16: Set Dmx Loss Behavior

    Set DMX Loss Behavior In the DMX screen, turn the red encoder to set the DMX loss behavior. Options are: Instant:The fixture immediately goes dark. • HLL 2min: Hold last look for two minutes or until you make local changes. If you make no •...
  • Page 17: Use Fixture In Stand-Alone Mode

    Use Fixture in Stand-alone Mode After you connect power to the fixture, press the Function button ( ) repeatedly to toggle through the following stand-alone modes: Studio: Use one of three studio (white light) presets, or customize the presets. • Color: Use one of 12 color presets, or customize the presets. •...
  • Page 18: Studio Mode

    Studio Mode 1. Press the Function button ( ) until the display shows the Studio screen. Turn to adjust intensity, or press to toggle between current intensity and 0. Studio Studio 100% 100% 3200 K 3125 K Tint 0.0 Green Tint 0.0 Green Tune...
  • Page 19: Color Mode

    Color Mode 1. Press the Function button ( ) until the display shows the Color screen. Turn to adjust intensity, or press to toggle between current intensity and 0. Color Color I: 97% I: 97% Page 1 Page 2 Turn the green or blue encoder to Press and hold an encoder to Turn the red encoder to move modify the value in the matching field.
  • Page 20: Effects Mode

    Effects Mode 1. Press the Function button ( ) until the display shows the Effects screen. Turn an encoder to modify the value in the matching field. Effects Settings Max Int 100% Max Int 100% Effect TV Set Style Custom Rate Step Preset...
  • Page 21: Preset Mode

    Preset Mode 1. Press the Function button ( ) until the display shows the Preset screen. The background approximates Turn an encoder to modify the the preset color. value in the matching field. Preset Edit Preset Color 4 100% 100% I: 100% Preset Yellow...
  • Page 22: Set Up Wireless Control

    Set Up Wireless Control Set Up Multiverse Wireless Communication ® You can use a City Theatrical Multiverse transmitting device to wirelessly configure and control the fixture. For information on using Multiverse products, see the documentation provided with the products. Note: For additional guidance and troubleshooting resources when setting up your wireless system, download the Multiverse Wireless Setup Information Guide at etcconnect.com.
  • Page 23: Control And Customize The Display

    Control and Customize the Display UI Lock Lock the Display Set this switch to lock the UI and prevent any changes to the fixture setup. The display indicates when the UI is locked. Effects Max Int 100% Effect Flicker Adjust the Display Settings Rate 1.
  • Page 24: Troubleshooting And Maintenance

    Troubleshooting and Maintenance Troubleshooting Checklist If you cannot find the resources that you need in this document, contact ETC Technical Services (see Help from ETC Technical Services on page 2 What I'm Seeing What Might Be Wrong What To Try Color on the fixture does...
  • Page 25: Test The Emitters

    (overriding any other instructions to the fixture) until you return to the Test screen and exit it. View Diagnostic Data As part of troubleshooting any issues with a fixture, ETC Technical Services may ask that you view diagnostic data on the fixture. 1. Press the Menu button ( ), turn the Intensity encoder to navigate to Diagnostics, and then press the Intensity encoder to select it.
  • Page 26: View Battery Level

    Export Fixture Data for Troubleshooting As part of troubleshooting any issues with a fixture, ETC Technical Services may ask that you export fixture data to a USB flash drive and then send the data for further analysis.
  • Page 27: Restore Default Settings

    Copying the files to the fixture: A progress meter displays as the files are copied to the fixture. b. Verifying the files: The ETC logo displays on the top half of the screen as the fixture verifies the files. You can safely remove the USB drive at this time.
  • Page 28: Backup And Restore The Fixture Configuration

    Update All Connected Fixtures 1. After you update the firmware on a fixture, verify that the fixture is not receiving DMX/RDM before you proceed. 2. Press the Menu button ( ) on the fixture, and then use the Intensity encoder to navigate through the menu: Local Settings > Push Firmware.
  • Page 29: Specifications And Reference

    Specifications and Reference For full product specifications, see the fos/4 Fresnel datasheet at etcconnect.com. Environment The fos/4 Fresnel operates in ambient temperatures of 0°C–40°C (32°F–104°F) and is rated IP20 (for use in dry locations only). Fixture temperature information: Maximum recommended ambient operating temperature: Ta=40°C (104°F) •...
  • Page 30: Rdm Parameters

    Fixture Value Description Manufacturer ID 0x6574 Electronic Theatre Controls Model ID fos4FL7 0x460 ETC fos/4 Medium Fresnel Lustr fos4FD7 0x461 ETC fos/4 Medium Fresnel Daylight DMX Personality 0x00E0 1 = Direct 2 = Expanded 3 = Studio 4 = RGB 5 = 1-channel DMX Start Address...
  • Page 31: Licensed Software

    EU Declaration of Conformity This product complies with the essential requirements of the Radio Equipment Directive of the European Union 2014/53/EU (RED). This product conforms to the following standards: ETSI EN 300 328 v2.1.1 (2016) • ETSI EN 301 489 v2.1.1 (2017) •...
  • Page 32 | Support support.etcconnect.com | Contact etcconnect.com/contactETC © 2021 Electronic Theatre Controls, Inc. | Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7470M1200-1.1.1 Rev B Released 2021-05...
