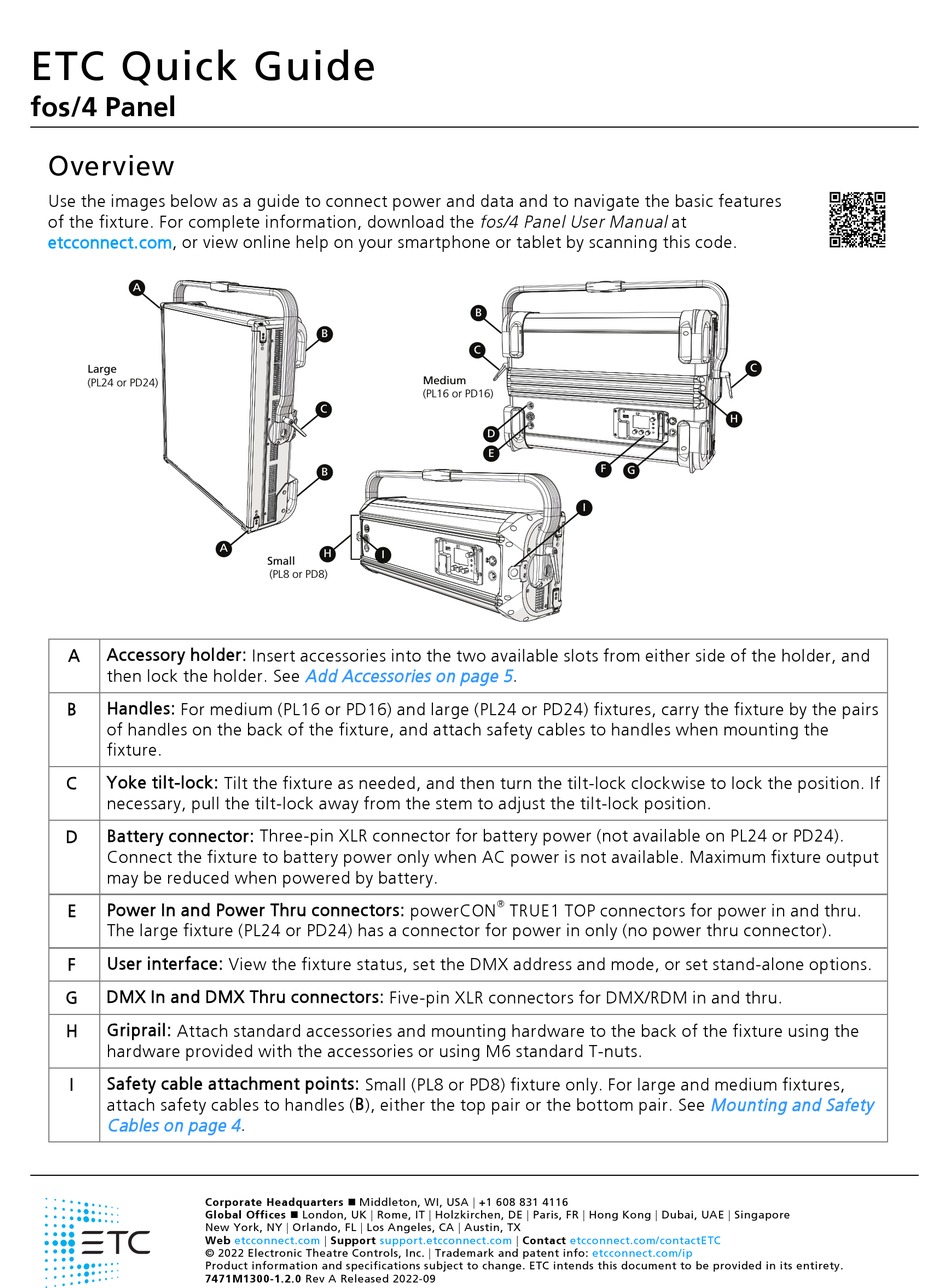

ETC Quick Guide
fos/4 Panel

Overview

Use the images below as a guide to connect power and data and to navigate the basic features
of the fixture. For complete information, download the fos/4 Panel User Manual at
etcconnect.com, or view online help on your smartphone or tablet by scanning this code.
A
Large
(PL24 or PD24)
Accessory holder: Insert accessories into the two available slots from either side of the holder, and
A
then lock the holder. See
Handles: For medium (PL16 or PD16) and large (PL24 or PD24) fixtures, carry the fixture by the pairs
B
of handles on the back of the fixture, and attach safety cables to handles when mounting the
fixture.
Yoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the position. If
C
necessary, pull the tilt-lock away from the stem to adjust the tilt-lock position.
Battery connector: Three-pin XLR connector for battery power (not available on PL24 or PD24).
D
Connect the fixture to battery power only when AC power is not available. Maximum fixture output
may be reduced when powered by battery.
Power In and Power Thru connectors: powerCON
E
The large fixture (PL24 or PD24) has a connector for power in only (no power thru connector).
User Interface: View the fixture status, set the DMX address and mode, or set stand-alone options.
F
DMX In and DMX Thru connectors: Five-pin XLR connectors for DMX/RDM in and thru.
G
Griprail: Attach standard accessories and mounting hardware to the back of the fixture using the
H
hardware provided with the accessories or using M6 standard T-nuts.
Safety cable attachment points: Small (PL8 or PD8) fixture only. For large and medium fixtures,
I
attach safety cables to handles ( B ), either the top pair or the bottom pair. See
Cables on page 4
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX
Web
© 2022 Electronic Theatre Controls, Inc. | Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7471M1300-1.2.0 Rev A Released 2022-09
B
C
B
A
H
I
Small
(PL8 or PD8)
Add Accessories on page 5
.
etcconnect.com
| Support
support.etcconnect.com
B
C
Medium
(PL16 or PD16)
D
E
F
I
.
®
TRUE1 TOP connectors for power in and thru.
| Contact
etcconnect.com/contactETC
etcconnect.com/ip
C
H
G
Mounting and Safety

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the fos/4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ETC fos/4

Summary of Contents for ETC fos/4

  • Page 1 | Support support.etcconnect.com | Contact etcconnect.com/contactETC © 2022 Electronic Theatre Controls, Inc. | Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7471M1300-1.2.0 Rev A Released 2022-09...
  • Page 2 ETC Quick Guide fos/4 Panel User Interface Effects Max Int 100% Effect Flicker Rate Display: The colors of options on the display correspond to the colors of the encoders below the display ( F ) and the Intensity encoder to the right of the display ( B ).
  • Page 3 AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La source lumineuse de ce projecteur n'est pas remplaçable par l'utilisateur et ne doit être remplacée seulement par un technicien qualifié. Contactez le service client ETC pour obtenir de l’assistance. WARNING: Note the following safety warnings before use: Use the fixture in dry locations only, where humidity does not exceed 90 •...
  • Page 4 ETC Quick Guide fos/4 Panel AVERTISSEMENT : Prendre connaissance des avertissements de sécurité suivants avant toute utilisation : Débranchez le projecteur de son alimentation et du DMX et laissez-le • refroidir avant d’installer des accessoires ou d’effectuer un nettoyage ou un entretien.
  • Page 5 Maximum fixture output may be reduced when the fixture is connected to battery power. Focus the Fixture 1. Apply power to the fixture, and wait until the fixture has booted up (the ETC splash screen displays during boot up). 2. Press any encoder to "wake" the display.
  • Page 6 Press the Intensity encoder to toggle between the current intensity and 0%. If the fixture is connected to other fos/4 Panel fixtures that are in the same stand-alone mode, the connected fixtures will play the same preset or effect.
  • Page 7 ETC Quick Guide fos/4 Panel Select a Color Temperature 1. Press the Function button ( ), use the Intensity encoder to navigate to Studio Mode, and then press the Intensity encoder to select it. 2. Press the color encoder that matches the studio preset you want to use (Blue = 3200 K, Green= 4500 K, Red= 5600 K).
  • Page 8 ETC Quick Guide fos/4 Panel Select a Gel 1. Press the Function button ( ), use the Intensity encoder to navigate to Gel Mode, and then press the Intensity encoder to select it. 2. Turn the encoders to change the corresponding values. For example, turn the red encoder to change the Gel value, or turn the blue encoder to change the CCT value.
