ETC Quick Guide
fos/4 Fresnel
Overview

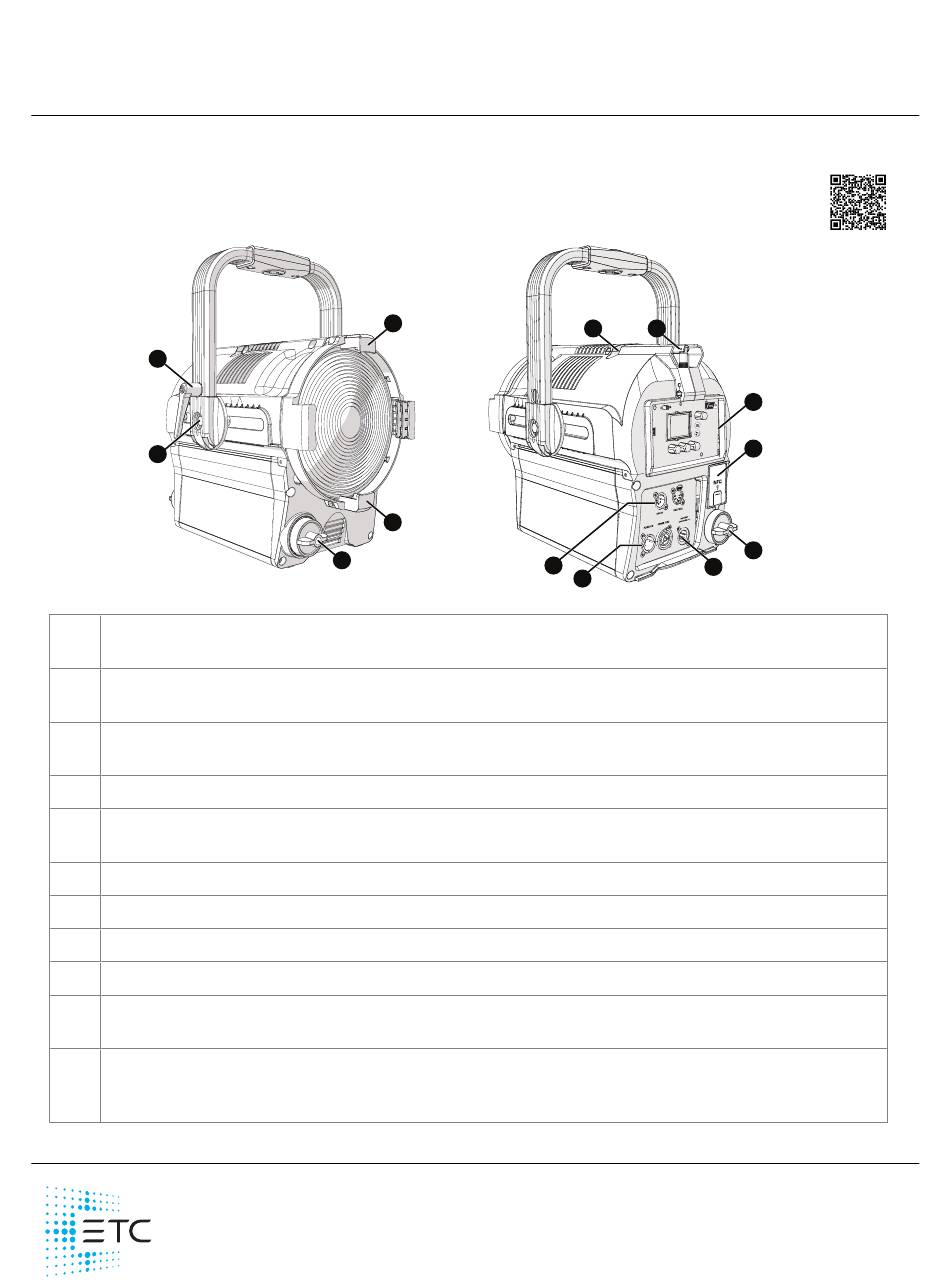

Use the images below as a guide to connect power and data and to navigate the basic features of
the fixture. For complete information, see the fos/4 Fresnel User Manual at etcconnect.com.
B
C
Accessory holder: Insert accessories into the two available slots from either side of the holder, and
A
then lock the holder. See
Yoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the position. If
B
necessary, press the center button on the tilt-lock to adjust the tilt-lock position.
Adjustable yoke: Loosen the bolts, and then shift the adjustable yoke forward or backward as
C
needed to balance the fixture. Tighten the bolts to secure. See
Zoom knob: Rotate the zoom knob on either side of the fixture to adjust from spot to flood.
D
NFC (Near Field Communication) tag: Use the Set Light app to wirelessly configure the fixture, with
E
or without power applied to the fixture.
User interface: View the fixture status, set the DMX address and mode, or set stand-alone options.
F
Antenna: For use when controlling the fixture using wireless DMX.
G
Safety cable attachment point: See
H
DMX In and DMX Thru connectors: Five-pin XLR connectors for DMX/RDM in and thru.
I
Power In and Power Thru connectors: powerCON
J
thru.
Battery connector: Three-pin XLR connector for battery power. Connect the fixture to battery power
K
only when AC power is not available. Maximum fixture output may be reduced when powered by
battery.
Corporate Headquarters Middleton, WI, USA +1 608 831 4116 London, UK +44 (0)20 8896 1000
Holzkirchen, DE +49 (80 24) 47 00-0 Rome, IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Paris, FR +33 1 4243 3535
Web
© 2020 Electronic Theatre Controls, Inc. Trademark and patent
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7470M1300-1.1.1 Rev A Released 2020-10
A
A
D
Add Accessories on page 4
Mounting and Safety Cables on page 4
etcconnect.com
Support
support.etcconnect.com
H
G
I
J
.
Add Accessories on page 4
®
TRUE1 TOP connectors for power in and power
Contact
etcconnect.com/contactETC
info: etcconnect.com/ip
F
E
D
K
.
.

Advertisement

Table of Contents
loading

Related Manuals for ETC fos/4 Fresnel

Summary of Contents for ETC fos/4 Fresnel

  • Page 1 Holzkirchen, DE +49 (80 24) 47 00-0 Rome, IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Paris, FR +33 1 4243 3535 etcconnect.com Support support.etcconnect.com Contact etcconnect.com/contactETC © 2020 Electronic Theatre Controls, Inc. Trademark and patent info: etcconnect.com/ip Product information and specifications subject to change. ETC intends this document to be provided in its entirety. 7470M1300-1.1.1 Rev A Released 2020-10...

  • Page 2: User Interface

    ETC Quick Guide fos/4 Fresnel User Interface Effects Max Int 100% Effect Flicker Rate Display: The colors of options on the display correspond to the colors of the encoders below the display ( E ) and the Intensity encoder to the right of the display ( B ).

  • Page 3: Important Safeguards

    SAVE THESE INSTRUCTIONS Note: The light source in this luminaire is not user-replaceable, and must be replaced only by a qualified technician. Contact ETC Customer Support for assistance. WARNING: Note the following safety warnings before use: Use the fixture in dry locations only, where humidity does not exceed 90 •...
  • Page 4 ETC Quick Guide fos/4 Fresnel AVERTISSEMENT : Prendre connaissance des avertissements de sécurité suivants avant toute utilisation : Débranchez le projecteur de son alimentation et du DMX et laissez-le • refroidir avant d’installer des accessoires ou d’effectuer un nettoyage ou un entretien.

  • Page 5: Focus The Fixture

    Maximum fixture output may be reduced when the fixture is connected to battery power. Focus the Fixture 1. Apply power to the fixture, and wait until the fixture has booted up (the ETC splash screen displays during boot up). 2. Press any encoder to "wake" the display.

  • Page 6: Dmx Modes

    ETC Quick Guide fos/4 Fresnel Use Fixture in DMX Mode After you connect power and data to the fixture and provide DMX, press the Function button ( repeatedly to toggle to the DMX screen, where you can set the DMX address, DMX mode, and DMX loss behavior.
  • Page 7 Press the Intensity encoder to toggle between the current intensity and 0%. If the fixture is connected to other fos/4 Fresnel fixtures that are in the same stand-alone mode, the connected fixtures will play the same preset or effect.

  • Page 8: Select A Preset

    ETC Quick Guide fos/4 Fresnel Save the modified preset: Press and hold the encoder that corresponds to the preset that you • want to re-record. The display shows a three-second countdown before re-recording the preset. Select a Color 1. Press the Function button ( ) until the display shows the Color screen.
