ETC Quick Guide
fos/4 Fresnel

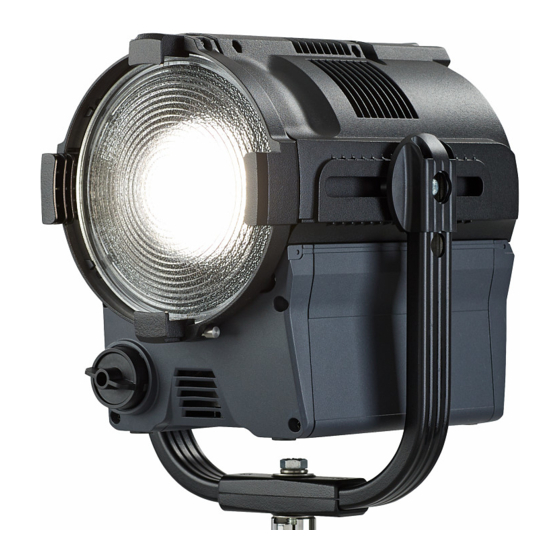

Overview

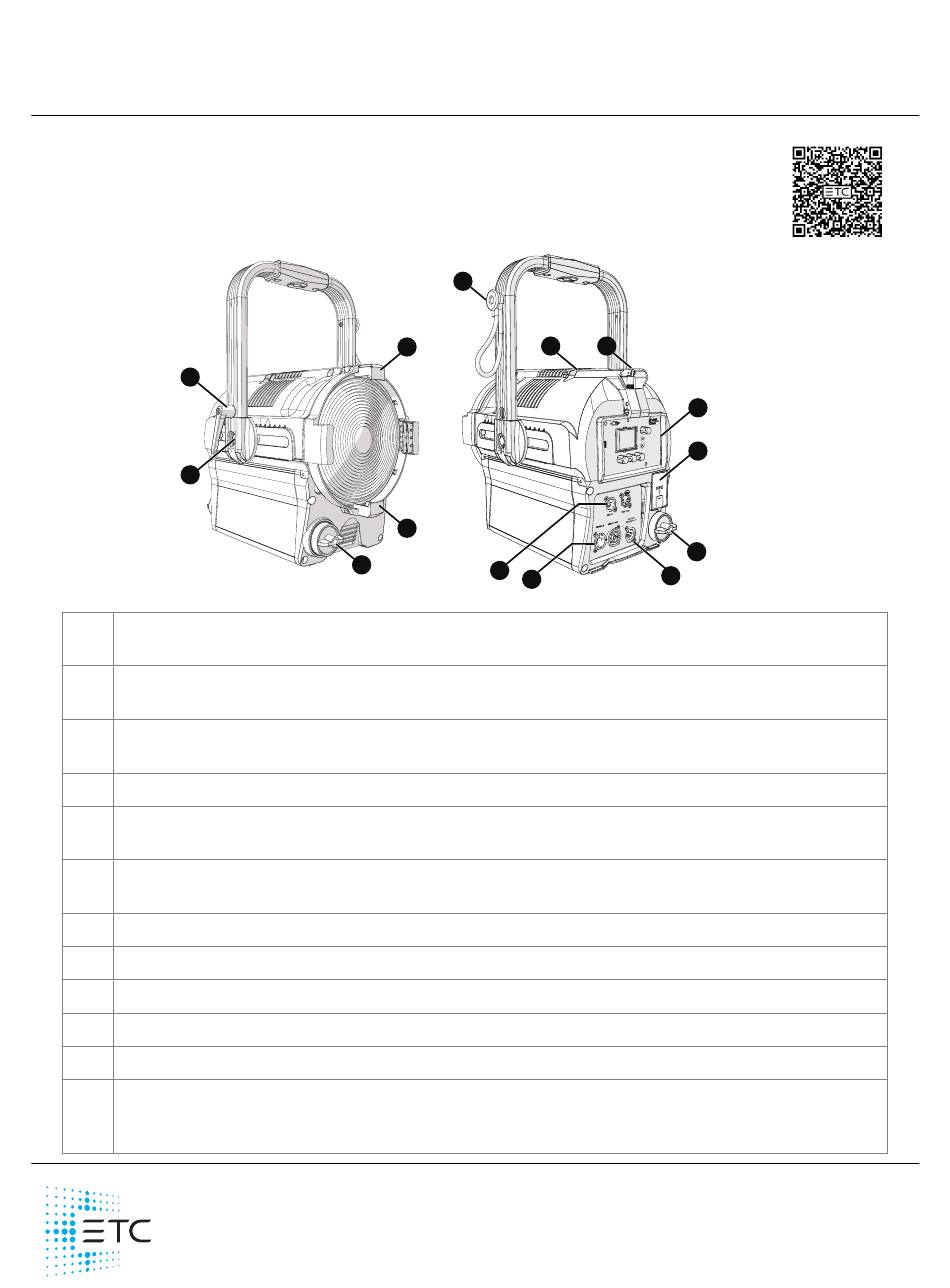

Use the images below as a guide to connect power and data and to navigate the
basic features of the fixture. For complete information, download the fos/4 Fresnel
User Manual at etcconnect.com, or view online help by scanning this code.
B
C
A
Accessory holder: Insert accessories into the two available slots from either side of the holder,
and then lock the holder. See
B
Yoke tilt-lock: Tilt the fixture as needed, and then turn the tilt-lock clockwise to lock the position.
If necessary, pull the tilt-lock away from the stem to adjust the tilt-lock position.
C
Adjustable yoke: Loosen the bolts, and then shift the adjustable yoke forward or backward as
needed to balance the fixture. Tighten the bolts to secure. See
D
Zoom knob: Rotate the zoom knob on either side of the fixture to adjust from spot to flood.
E
NFC (Near Field Communication) tag: Use the Set Light app to wirelessly configure the fixture,
with or without power applied to the fixture.
F
User Interface: View the fixture status, set the DMX address and mode, or set stand-alone
options.
G
Antenna: For use when controlling the fixture using wireless DMX.
H
Safety cable attachment point: See
I
Cable tie: Store power cable on the yoke.
J
DMX In and DMX Thru connectors: Five-pin XLR connectors for DMX/RDM in and thru.
K
Power In and Power Thru connectors: powerCON
L
Battery connector: Three-pin XLR connector for battery power. Connect the fixture to battery
power only when AC power is not available. Maximum fixture output may be reduced when
powered by battery.
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX | © 2023 Electronic Theatre Controls, Inc.
Web
Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7470M1300-1.3.0 Rev A Released 2023-11
A
A
D
Add Accessories on page 4
etcconnect.com
| Support
support.etcconnect.com
etcconnect.com/ip
I
H
G
J
K
.
Add Accessories on page 4
®
TRUE1 TOP connectors for power in and thru.
| Contact
etcconnect.com/contactETC
| Third-party license agreement
F
E
D
L
.
.
info: etcconnect.com/licenses
