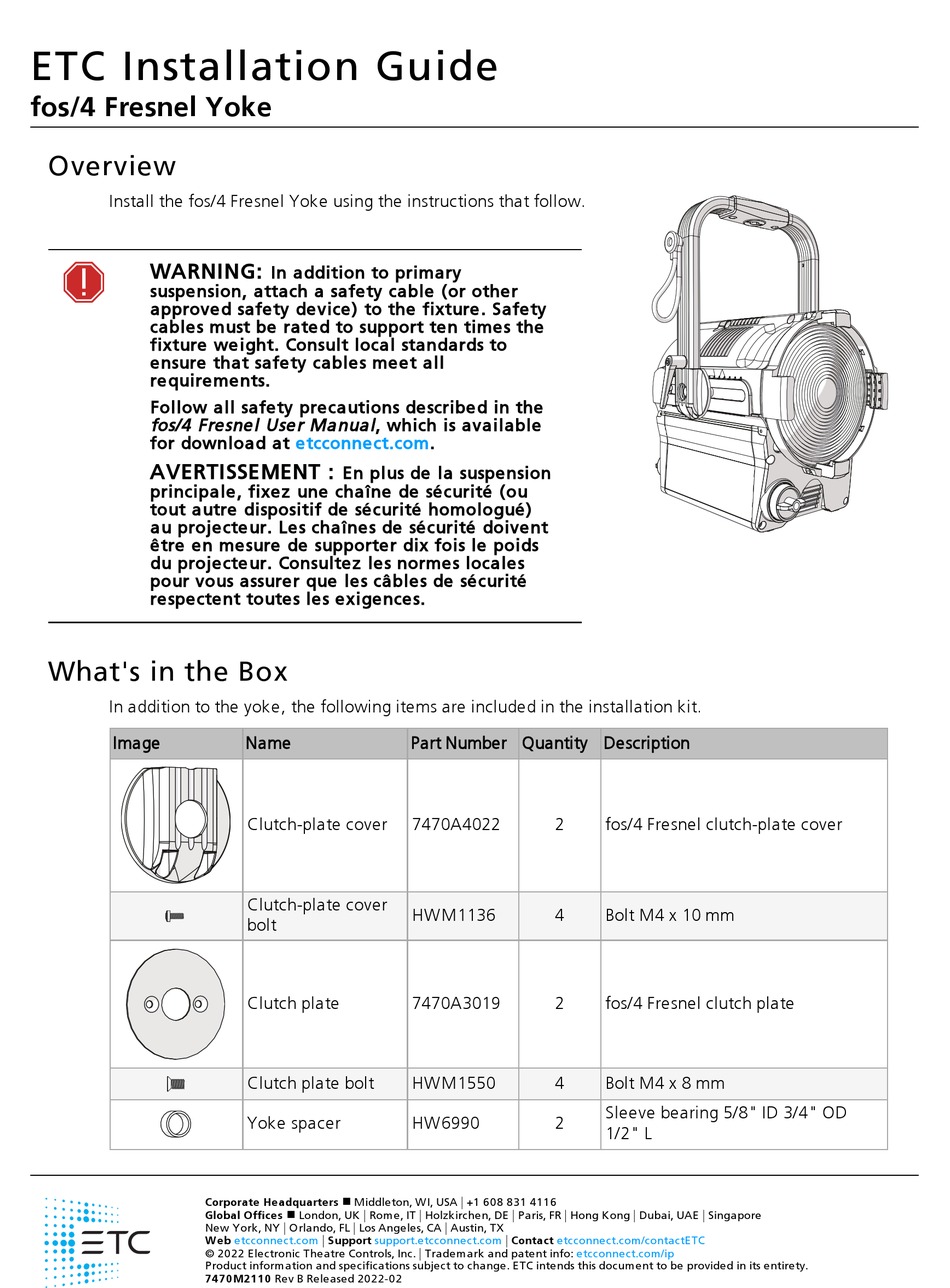

ETC Installation Guide
fos/4 Fresnel Yoke
Overview
Install the fos/4 Fresnel Yoke using the instructions that follow.
WARNING:
suspension, attach a safety cable (or other
approved safety device) to the fixture. Safety
cables must be rated to support ten times the
fixture weight. Consult local standards to
ensure that safety cables meet all
requirements.
Follow all safety precautions described in the
fos/4 Fresnel User Manual , which is available
for download at etcconnect.com.
AVERTISSEMENT :
principale, fixez une chaîne de sécurité (ou
tout autre dispositif de sécurité homologué)
au projecteur. Les chaînes de sécurité doivent
être en mesure de supporter dix fois le poids
du projecteur. Consultez les normes locales
pour vous assurer que les câbles de sécurité
respectent toutes les exigences.
What's in the Box
In addition to the yoke, the following items are included in the installation kit.
Corporate Headquarters
Global Offices
New York, NY
Web
© 2022 Electronic Theatre Controls, Inc.
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7470M2110 Rev B Released 2022-02
In addition to primary
En plus de la suspension
Name Part Number Quantity Description
Clutch-plate cover 7470A4022
Clutch-plate cover
HWM1136
bolt
Clutch plate 7470A3019
Clutch plate bolt HWM1550
Yoke spacer HW6990
n
Middleton, WI, USA
n |
London, UK Rome, IT
| |
Orlando, FL Los Angeles, CA
etcconnect.com | Support support.etcconnect.com
2
4
2
4
2
| +1 608 831 4116
| | |
Holzkirchen, DE Paris, FR Hong Kong
|
Austin, TX
| Contact etcconnect.com/contactETC
| Trademark and patent info: etcconnect.com/ip
fos/4 Fresnel clutch-plate cover
Bolt M4 x 10 mm
fos/4 Fresnel clutch plate
Bolt M4 x 8 mm
Sleeve bearing 5/8" ID 3/4" OD
1/2" L
| |
Dubai, UAE Singapore
