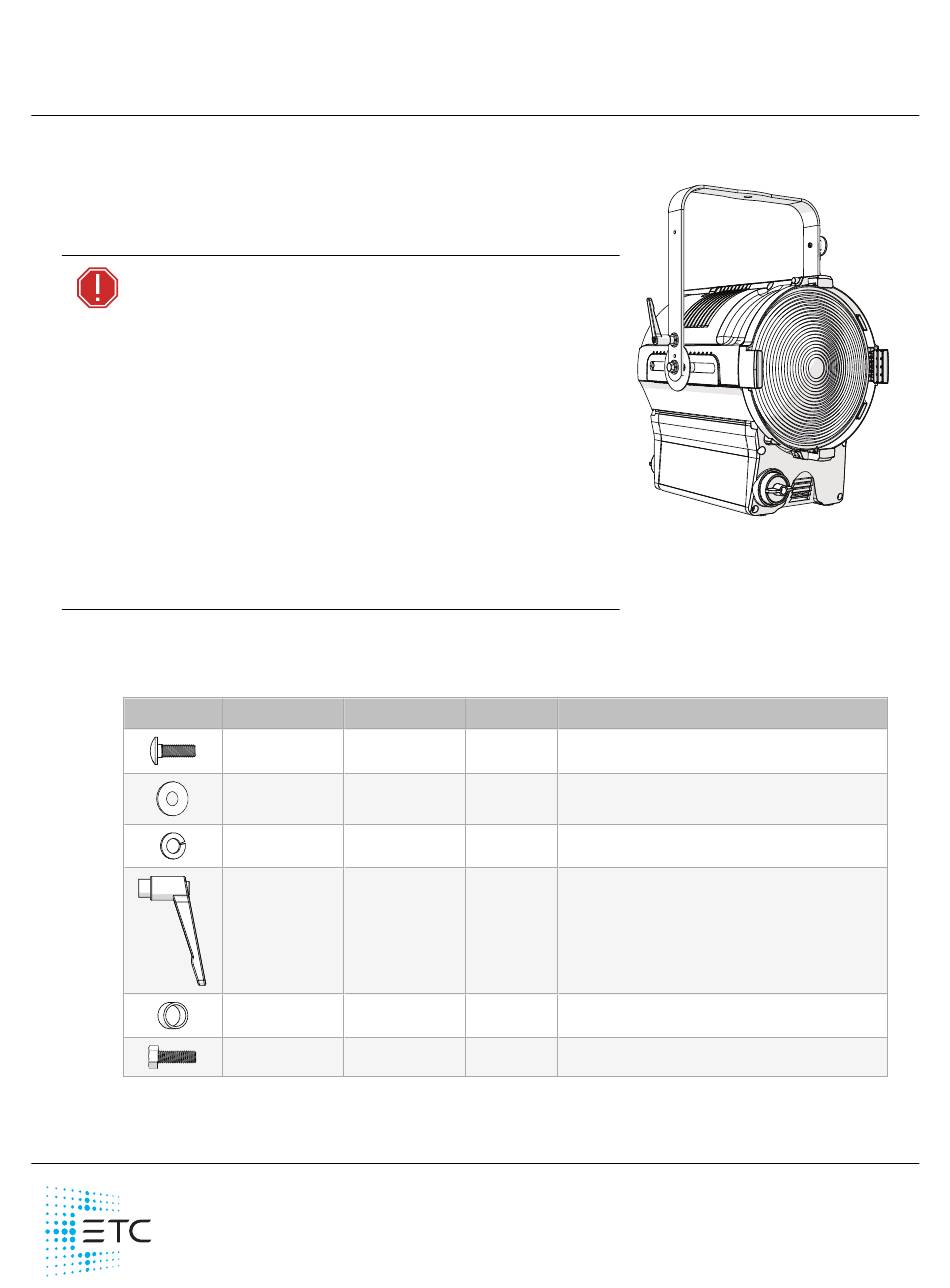

ETC fos/4 Fresnel Theatrical Yoke Installation Manual

ETC Installation Guide
fos/4 Fresnel Theatrical Yoke
Overview
The fos/4 Fresnel Theatrical Yoke can be installed on the large
(FD10 or FL10) fos/4 Fresnel. Install the fos/4 Fresnel
Theatrical Yoke using the instructions that follow.
WARNING:
attach a safety cable (or other approved safety
device) to the fixture. Safety cables must be
rated to support ten times the fixture weight.
Consult local standards to ensure that safety
cables meet all requirements.
Follow all safety precautions described in the
fos/4 Fresnel User Manual , which is available for
download at etcconnect.com.
AVERTISSEMENT :
principale, fixez une chaîne de sécurité (ou tout
autre dispositif de sécurité homologué) au
projecteur. Les chaînes de sécurité doivent être
en mesure de supporter dix fois le poids du
projecteur. Consultez les normes locales pour
vous assurer que les câbles de sécurité respectent
toutes les exigences.
What's in the Box
In addition to the yoke, the following items are included in the installation kit.
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX | © 2023 Electronic Theatre Controls, Inc.
Web
Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7470M2120 Rev A Released 2023-11
In addition to primary suspension,
En plus de la suspension
Name Part Number
Tilt-lock bolt HWM2375
Washer HW5126
Lock washer HW599-2
Tilt-lock HWM8014
Yoke spacer HW6990
Yoke bolt HWM2350
etcconnect.com | Support support.etcconnect.com
etcconnect.com/ip
Quantity Description
2 Bolt M8x20 mm
4 Flat washer 5/16 0.375x0.875x0.078
4 Lock washer 3/8 0.390x0.683x0.094
2 fos/4 Fresnel tilt-lock
2 Sleeve bearing 5/8" ID 3/4" OD 1/2" L
2 Bolt M8x25 mm
