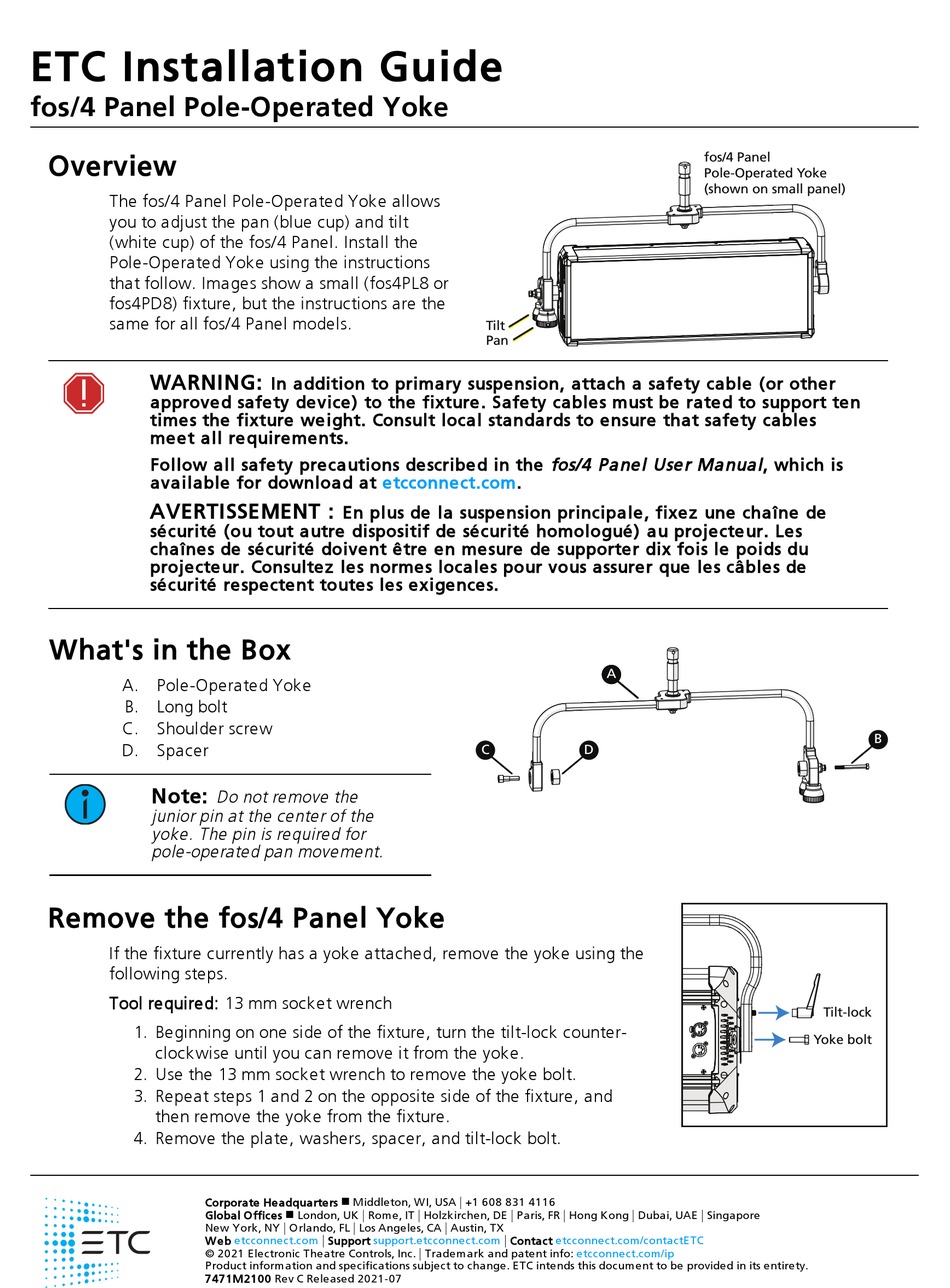

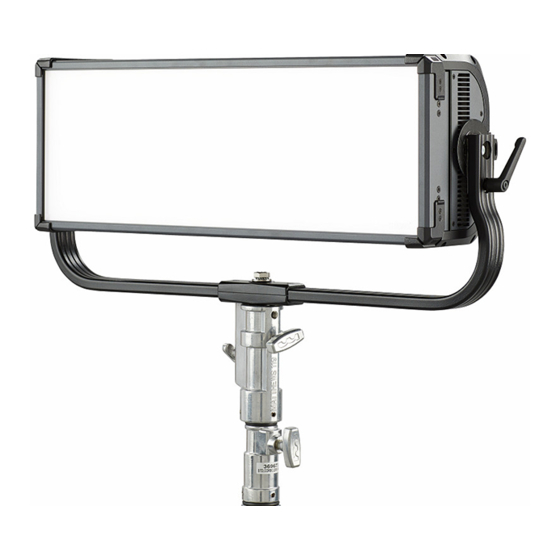

ETC fos/4 Panel Pole-Operated Yoke Installation Manual

ETC Installation Guide
fos/4 Panel Pole-Operated Yoke

Overview

The fos/4 Panel Pole-Operated Yoke allows
you to adjust the pan (blue cup) and tilt
(white cup) of the fos/4 Panel. Install the
Pole-Operated Yoke using the instructions
that follow. Images show a small (fos4PL8 or
fos4PD8) fixture, but the instructions are the
same for all fos/4 Panel models.
WARNING:
approved safety device) to the fixture. Safety cables must be rated to support ten
times the fixture weight. Consult local standards to ensure that safety cables
meet all requirements.
Follow all safety precautions described in the fos/4 Panel User Manual , which is
available for download at etcconnect.com.
AVERTISSEMENT :
sécurité (ou tout autre dispositif de sécurité homologué) au projecteur. Les
chaînes de sécurité doivent être en mesure de supporter dix fois le poids du
projecteur. Consultez les normes locales pour vous assurer que les câbles de
sécurité respectent toutes les exigences.

What's in the Box

A. Pole-Operated Yoke
B. Long bolt
C. Shoulder screw
D. Spacer
Note:
junior pin at the center of the
yoke. The pin is required for
pole-operated pan movement.

Remove the fos/4 Panel Yoke

If the fixture currently has a yoke attached, remove the yoke using the
following steps.
Tool required: 13 mm socket wrench
1. Beginning on one side of the fixture, turn the tilt-lock counter-
clockwise until you can remove it from the yoke.
2. Use the 13 mm socket wrench to remove the yoke bolt.
3. Repeat steps 1 and 2 on the opposite side of the fixture, and
then remove the yoke from the fixture.
4. Remove the plate, washers, spacer, and tilt-lock bolt.
