Interval
Where?
GB
TU3008G
70
What?
How?
Check the oil level in the inspection glass
of the feed gear
The oil level must at least attain the centre resp. top
marking of the oil sight glass.
Operating material on page 17.
Visual
inspection
For oil change use an appropriate collecting container
with sufficient capacity.
Unscrew the screw from the drain hole.
Unscrew the screw from the filler hole.
Close the drain hole if no more oil drains.
Fill up to the middle of the reference mark of the oil sight
glass into the filler hole using a suitable container.
Operating material on page 17
Oil change
Translation of original instruction
Img.5-3: auf Seite 71
Filler hole
Outlet
Oil sight glass

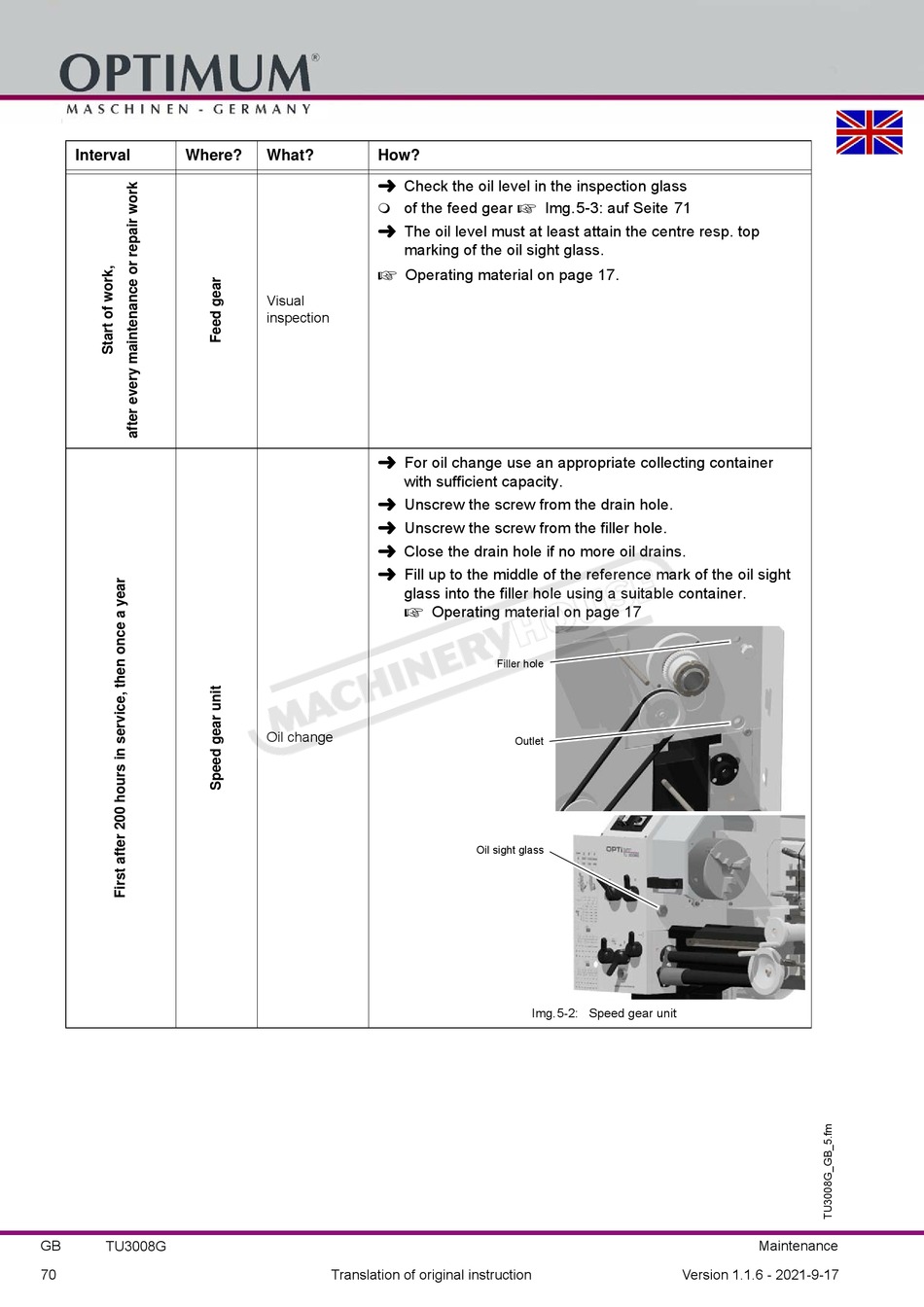

Img.5-2: Speed gear unit
Maintenance
Version 1.1.6 - 2021-9-17
