Maintenance
Version 1.1.6 - 2021-9-17
What? How?
Excessive clearance in the slideways can be reduced by
readjusting.

Turn the take-up screw clockwise. The gib is moved to
the rear and reduces the clearance of the corresponding
slideway.
Guide bar lead screw nut
Readjust

Check the oil level in the inspection glass
of the speed gear unit


The oil level must at least attain the centre resp. top
marking of the oil sight glass.

Operating material on page 17.
Visual
inspection
Translation of original instruction
Take-up screws
Take-up screws
Cross slide
Take-up screw
Top slide

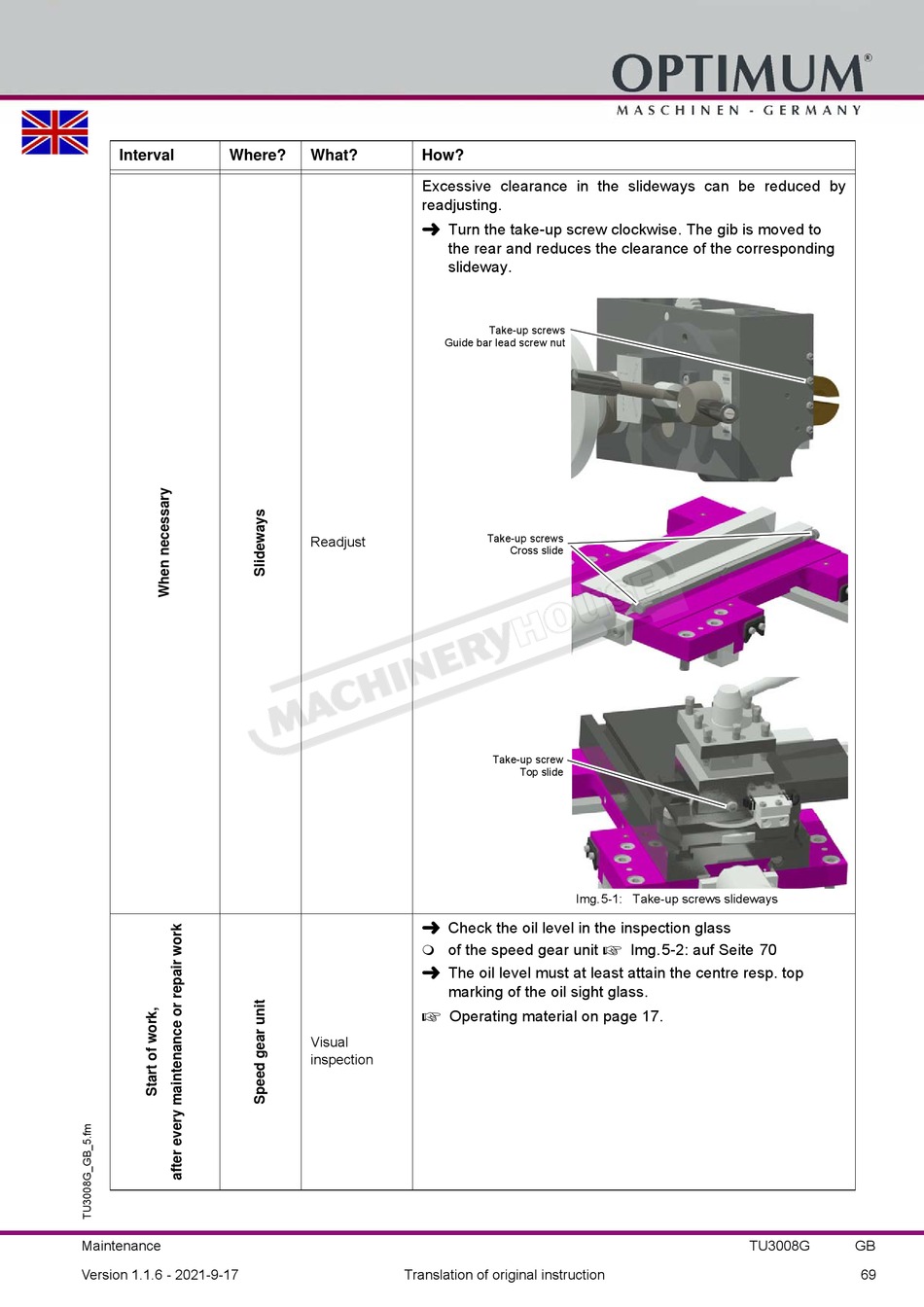

Img.5-1: Take-up screws slideways

